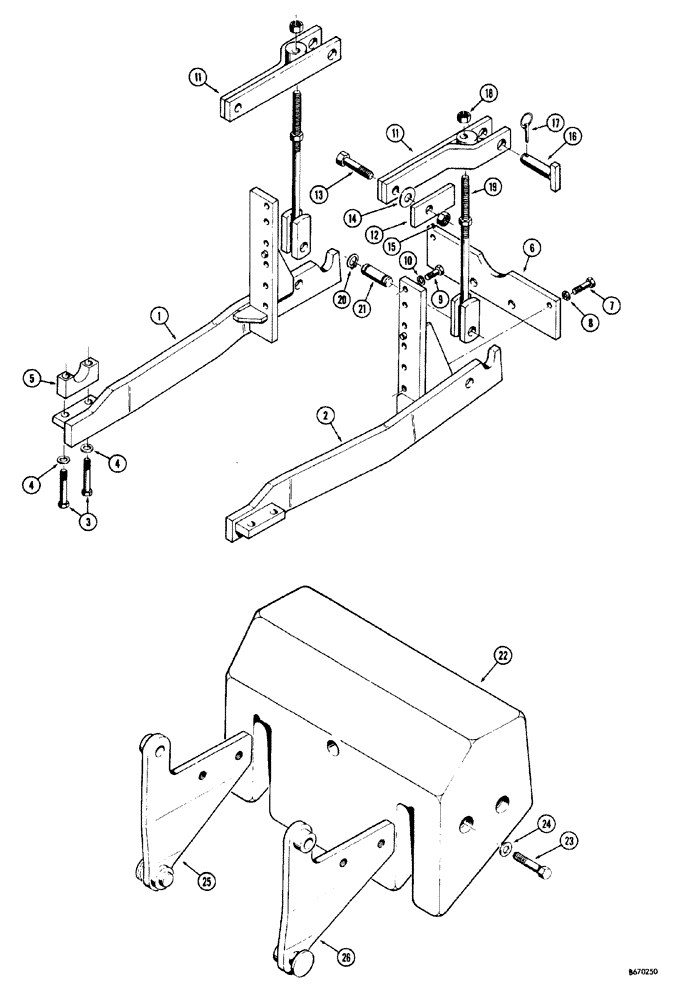

Запчасти Case 34 (096) - BACKHOE MOUNTING PARTS AND COUNTERWEIGHT

1

D37316

SUPPORT arm, lower, R.H., mounting parts

1шт.

2

D37317

SUPPORT arm, lower, L.H., mounting parts

1шт.

3

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Mounting parts

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

SPECIAL mounting parts

4шт.

5

D39511

CLAMP

SHAFT pivot, mounting parts

2шт.

6

D37298

PLATE

CENTER, R.H. to L.H., lower support arm, mounting parts

1шт.

7

113-645

X

HHCS 5/8" - 11 NC x 2-1/2", mounting parts

2шт.

8

A35147

WASHER

SPECIAL

2шт.

9

113-610

X

HHCS 5/8" - 11 NC x 2", mounting parts

10шт.

10

A35147

WASHER

SPECIAL mounting parts

10шт.

11

D37305

SUPPORT

ARM upper, mounting parts

2шт.

12

D38911

PLATE ASSY.

REINFORCEMENT mounting parts

2шт.

13

13-2068

BOLT,Hex, 1-1/4" - 7 x 4-1/4", Gr 5

Mounting parts

2шт.

14

D36434

WASHER

PLAIN mounting parts

2шт.

15

230-41120

LOCK NUT,1 1/4"-7, GA

HEX lock, 1-1/4" - 7 NC, mounting parts

2шт.

16

D38709

PIN

SPARE PART ANCHOR upper support arm to backhoe mounting frame, parts

2шт.

17

D33805

PIN

KLIK retaining, mounting parts

2шт.

18

25-1116

NUT,1"-14, G5

HEX 1" - 14 NF, mounting parts

4шт.

19

D37097

ROD

TENSION upper to lower support arm, mounting parts

2шт.

20

D26918

SNAP RING,#125, Ext

mounting parts #125, Ext

4шт.

21

D33816

PIN

MOUNTING rod to lower support arm, parts

2шт.

22

D38567

COUNTERWEIGHT rear, 2500 Ibs.

1шт.

23

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, , Counterweight Hex, 1"-8 x 5", G5

4шт.

24

195-53

WASHER,1" x 2" x .134"

PLAIN 1", counterweight

4шт.

25

D38885

SPARE PART MOUNTING counterweight, L.H.

1шт.

26

D38886

SPARE PART MOUNTING counterweight, R.H.

1шт.
