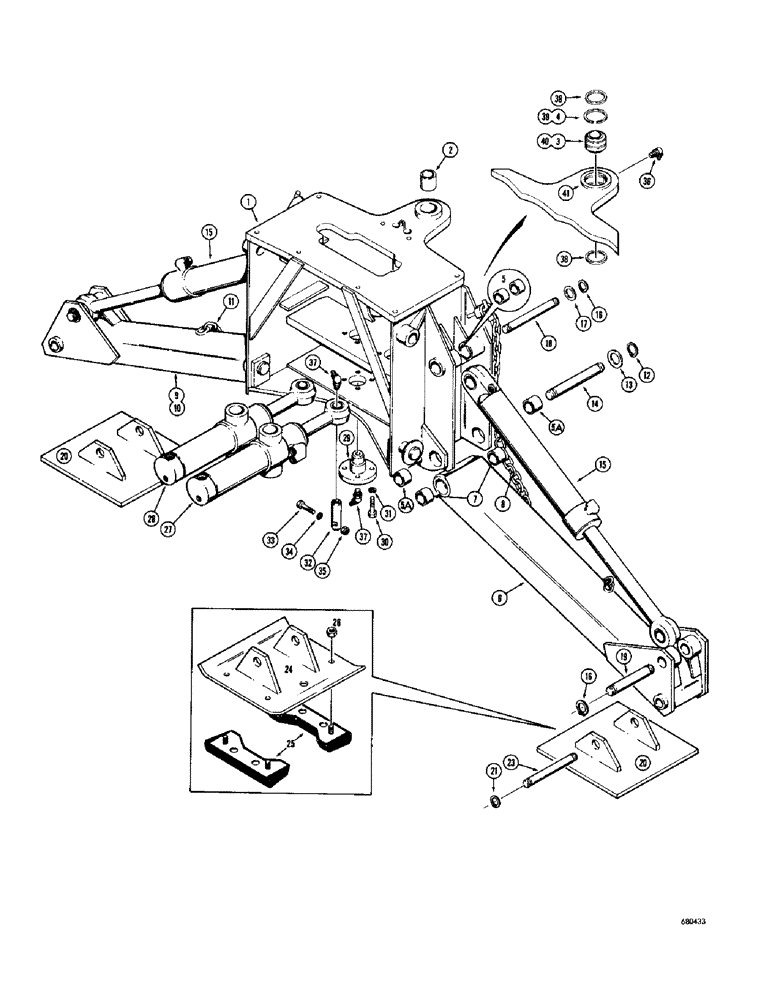

Запчасти Case 34 (014) - MOUNTING FRAME AND STABILIZERS, USED ON 34 BACKHOE SN. 1022951 AND AFTER

1

D42779

FRAME - backhoe mounting, Includes Ref. 2 - 5A

1шт.

2

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

Upper, frame to swing tower

1шт.

3

D23601

HOUSING

BUSHING - pivotal ball type (See D14016 bushing kit, Ref. 38 - 41)

1шт.

4

NLS

NO LONGER SERVICED

RING SNAP 3.156", Int, #315, bushing (See D14016 bushing kit, Ref. 38 - 41)

1шт.

5

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

Stabilizer bracket at cylinder

4шт.

5a

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

Stabilizer bracket at leg

4шт.

6

D43292

SUPPORT ASSY.

LEG - stabilizer, RH, Includes Ref. 7 & 8

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

Leg to frame (Used on some models)

2шт.

8

D39373

CHAIN (AG)

Transport

1шт.

9

D43291

SUPPORT ASSY.

LEG - stabilizer, LH, Includes Ref. 10 & 11

1шт.

10

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

Leg to frame (Used on some models)

2шт.

11

D39373

CHAIN (AG)

Transport

1шт.

12

D26919

SNAP RING,#200, Ext

Pin

4шт.

13

195-2155

WASHER,2 1/16" x 3" x .109"

Flat, steel

4шт.

14

D42911

PIN

Stabilizer, Serial Range: leg-frame

2шт.

15

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (Fig. 106 - 108 for proper cylinder)

2шт.

16

D25280

SNAP RING,#175, Ext

Pin

8шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

Flat, steel

4шт.

18

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

Stabilizer cylinder, closed end

2шт.

19

D42912

AXLE PIN

Stabilizer cylinder, rod end

2шт.

20

D42767

PAD

FOOT - stabilizer, cleated

2шт.

21

D26918

SNAP RING,#125, Ext

Pin

4шт.

22

RESERVED

1шт.

23

D42785

AXLE PIN

Stabilizer foot

2шт.

24

D43295

SPARE PART Stabilizer, street or cemetary pad (Optional)

2шт.

25

D40469

SHOE (ASSY)

PAD - rubber, D43295 stabilizer foot (Optional)

4шт.

26

D29712

SPECIAL NUT

Hex, special

8шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, RH swing (Fig. 110 - 114 for proper cylinder)

1шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, LH swing (Fig. 110 - 114 for proper cylinder)

1шт.

29

D30724

PIN

Swing, Serial Range: cylinder-frame

4шт.

30

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

16шт.

31

92-8

LOCK WASHER,1/2"

16шт.

32

D30761

PIN

Swing cylinder to swing tower

2шт.

33

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

34

92-10

LOCK WASHER,5/8"

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

37

219-39

FITTING

Grease, 45 degrees (1/8" NPT)

6шт.

D14016

KIT

BUSHING - lower mounting frame, Includes Ref. 38 - 41

1шт.

38

D26991

BEARING

SPACER - bearing

2шт.

39

49477

RING, SNAP

RING SNAP 3.156", Int, #315, bushing

1шт.

40

D23601

HOUSING

BUSHING - pivotal ball type

1шт.

41

D42630

BEARING

RETAINER

1шт.
