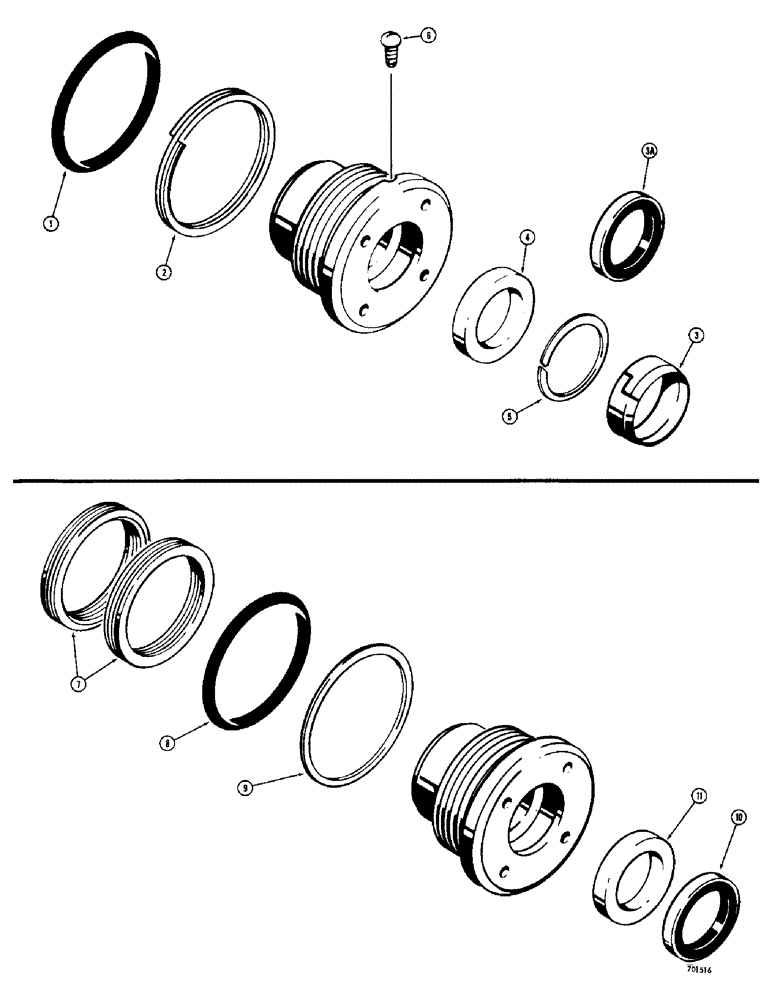

Запчасти Case 34 (144) - CYLINDER PACKING KITS,D42848 GLAND PACKING KIT, G32285 CYLINDER PACKING KIT

D42878

GLAND

KIT - gland packing, Includes: Ref. 1 - 6

1шт.

1

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

2

D38932

BACK-UP RING

RING - backup, gland seal (Early production leather type)

1шт.

2

D42452

RING

- backup, gland seal (Late production synthetic spiral type)

1шт.

3

D39360

WIPER

- rod, outer (Step type) If used

1шт.

3a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod outer (U-type) If used

1шт.

4

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- rod

1шт.

5

D39539

RING

- backup, rod seal

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

G32285

SEAL

KIT - cylinder packing, G32285 cylinder packing kit, Includes: Ref. 7 - 11

1шт.

7

D47205

PACKING

- piston, chevron, G32285 cylinder packing kit

2шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland, G32285 cylinder packing kit

1шт.

9

G32284

BACK-UP RING

- backup, gland seal, G32285 cylinder packing kit

1шт.

10

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod, outer, G32285 cylinder packing kit

1шт.

11

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- rod, G32285 cylinder packing kit

1шт.
