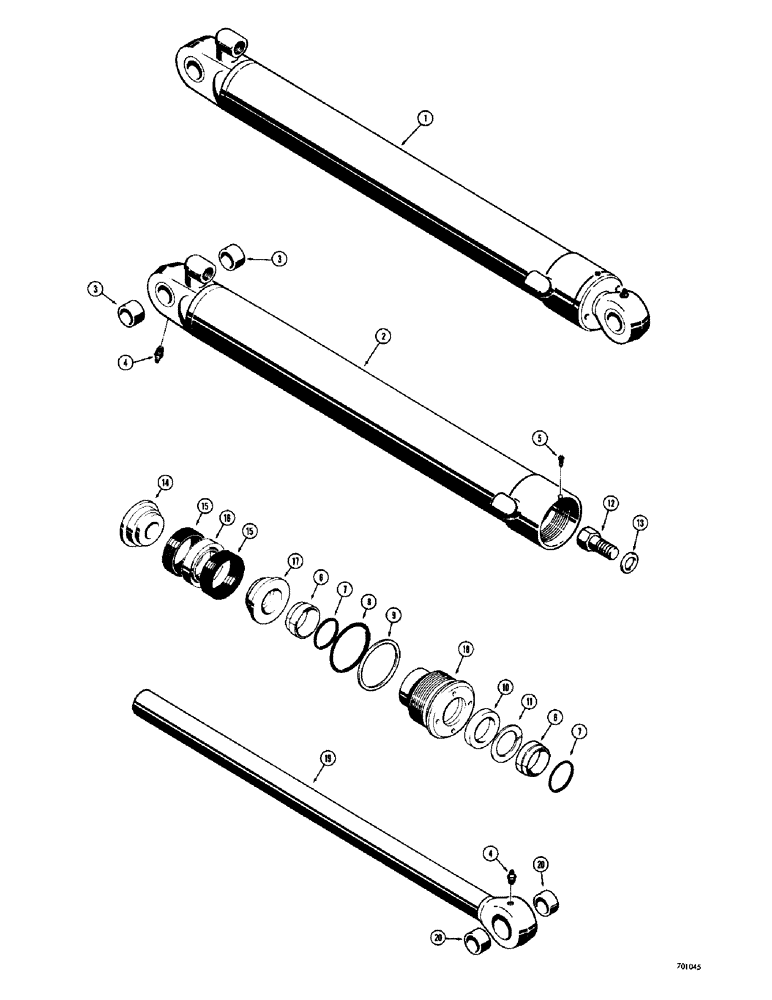

Запчасти Case 34 (128) - BACKHOE BUCKET CYLINDER, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER

1

D37622

CYLINDER

- bucket (3-1/2" I.D. x 27-1/4" stroke) Has 1-1/2" wide piston rod eye, Includes: Ref. 2 - 19

1шт.

D37622 and D43252 cylinders use D37356, D41399 or D42873 Packing Kits. See figure 134 for kit components, D48967 cylinder uses D37357 or D42874 Packing Kits. See figure 136 for kit components.

1шт.

1

D43252

X

CYLINDER - bucket (3-1/2" I.D. x 27-1/4" stroke) Has 2" wide piston rod eye (When stock is exhausted, order 1-D48967 cylinder and 2, 195-63 washers for service), Includes: Ref. 2 - 19

1шт.

D37622 and D43252 cylinders use D37356, D41399 or D42873 Packing Kits. See figure 134 for kit components, D48967 cylinder uses D37357 or D42874 Packing Kits. See figure 136 for kit components.

1шт.

1

D48967

CYLINDER

- bucket (3-1/2" I.D. x 27-1/4" stroke) Has 2" dia. piston rod, Includes: Ref. 2 - 19

1шт.

D37622 and D43252 cylinders use D37356, D41399 or D42873 Packing Kits. See figure 134 for kit components, D48967 cylinder uses D37357 or D42874 Packing Kits. See figure 136 for kit components.

1шт.

2

D37731

BODY

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod (D37622 and D43252 cylinders)

2шт.

6

D27380

SCRAPER RING

WIPER - rod (D48967 cylinder)

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (Used in some D37622 and D43252 cylinders)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod (D37622 and D43252 cylinders)

1шт.

10

D36971

RING

SEAL - rod (D48967 cylinder)

1шт.

11

D28499

RING

- backup, rod seal (D37622 and D43252 cylinders)

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal (D48967 cylinder)

1шт.

12

D32861

BOLT

- special

1шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

14

D28367

PISTON

- split, bolt end half

1шт.

15

D42808

PACKAGE,SERVICE

PACKING - piston, chevron

2шт.

16

D43545

RING

- metal, piston packing

1шт.

17

D28369

PISTON

- split, rod end half (D37622 and D43252 cylinders)

1шт.

17

D28368

PISTON

- split, rod end half (D48967 cylinder)

1шт.

18

D45069

GLAND

- packing, D37622 and D43252 cylinders only

1шт.

18

D45070

GLAND

- packing, D48967 cylinder only

1шт.

19

D39270

ROD ASSY.

ROD - piston (1-3/4" dia.) D37622 cylinder (1-1/2" wide eye)

1шт.

19

D43173

PISTON

ROD - piston (1-3/4" dia.) D43252 cylinder (2" wide eye)

1шт.

19

D48968

ROD ASSY.

ROD - piston (2" dia.) D48967 cylinder, Includes: Ref. 20

1шт.

20

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- D39270 rod

2шт.

20

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- D43173 rod

2шт.

20

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- D48968 rod

2шт.
