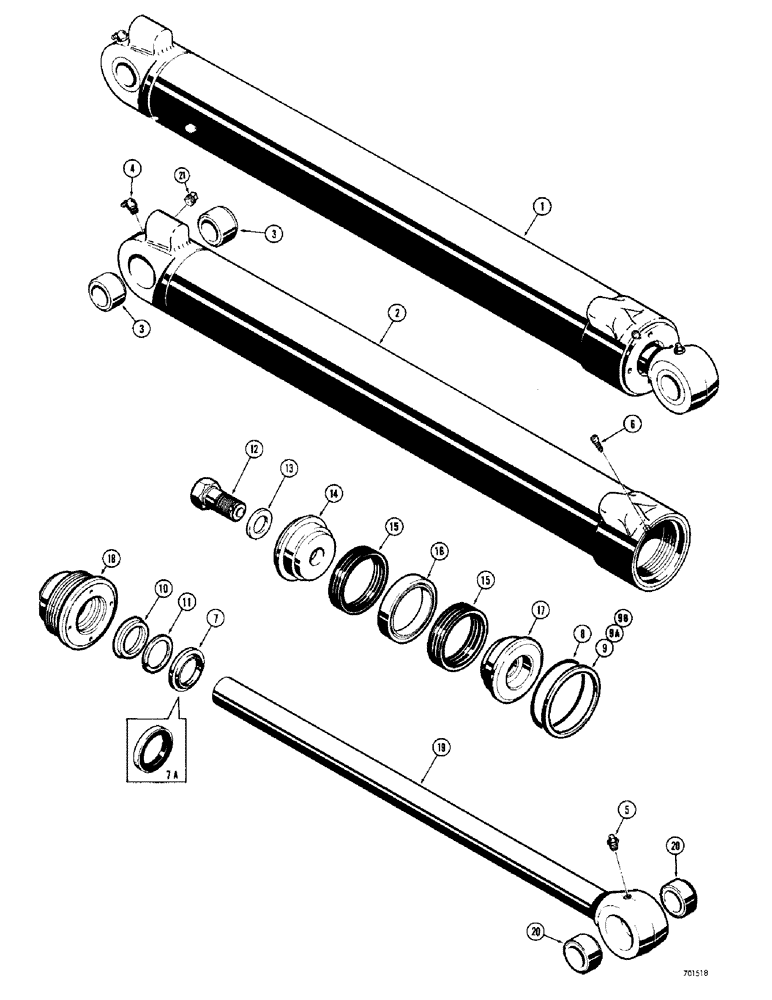

Запчасти Case 34 (126) - BACKHOE CROWD CYLINDER

1

D38491

CYLINDER - crowd (4-1/2" I.D. x 35-1/8" stroke), Includes: Ref. 2-21

1шт.

D38491 and D43575 cylinders use D42878 Packing Kit. G32768 cylinder uses G32285 Packing Kit. See figure 144 for kit components.

1шт.

1

D43575

CYLINDER ASSY.

CYLINDER - crowd (4-1/2" I.D. x 35-1/8" stroke), Includes: Ref. 2-21

1шт.

D38491 and D43575 cylinders use D42878 Packing Kit. G32768 cylinder uses G32285 Packing Kit. See figure 144 for kit components.

1шт.

1

G32768

CYLINDER

- crowd (4-1/2" I.D. x 35-1/8" stroke), Includes: Ref. 2-21

1шт.

D38491 and D43575 cylinders use D42878 Packing Kit. G32768 cylinder uses G32285 Packing Kit. See figure 144 for kit components.

1шт.

2

D38969

TUBE - D38491 cylinder, Includes: Ref. 3

1шт.

2

D43576

CYLINDER

TUBE - D43575 and G32768 cylinders, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

7

D39360

WIPER

- step type outer (If used)

1шт.

7a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - U-type outer (If used)

1шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D42452

RING

- backup, gland seal (Spiral type)

1шт.

9a

G32284

BACK-UP RING

- backup, gland seal (Solid synthetic type)

1шт.

9b

D38932

BACK-UP RING

RING - backup, gland seal (Leather type)

1шт.

10

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

11

D39539

RING

- backup, rod seal (If used)

1шт.

12

D31642

BOLT

- special

1шт.

13

G32351

WASHER

- special

1шт.

14

D38934

PISTON

- split, bolt end half

1шт.

15

D42503

PACKING

- piston, chevron

2шт.

16

D42474

PACKAGE, RINGS

RING - metal, piston packing

1шт.

17

D38933

PISTON ASSY.

PISTON - split, rod end half

1шт.

18

D39369

GLAND

- packing, used with step type rod wiper (D38491 and D43575 cylinders)

1шт.

18

D49502

GLAND

- packing, used with U-type rod wiper (G32768 cylinder only)

1шт.

19

D38965

HOUSING

ROD - piston (2-1/4" dia.), Includes: Ref. 20

1шт.

20

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

1шт.

21

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. hd. (1/8" NPT) If used

1шт.
