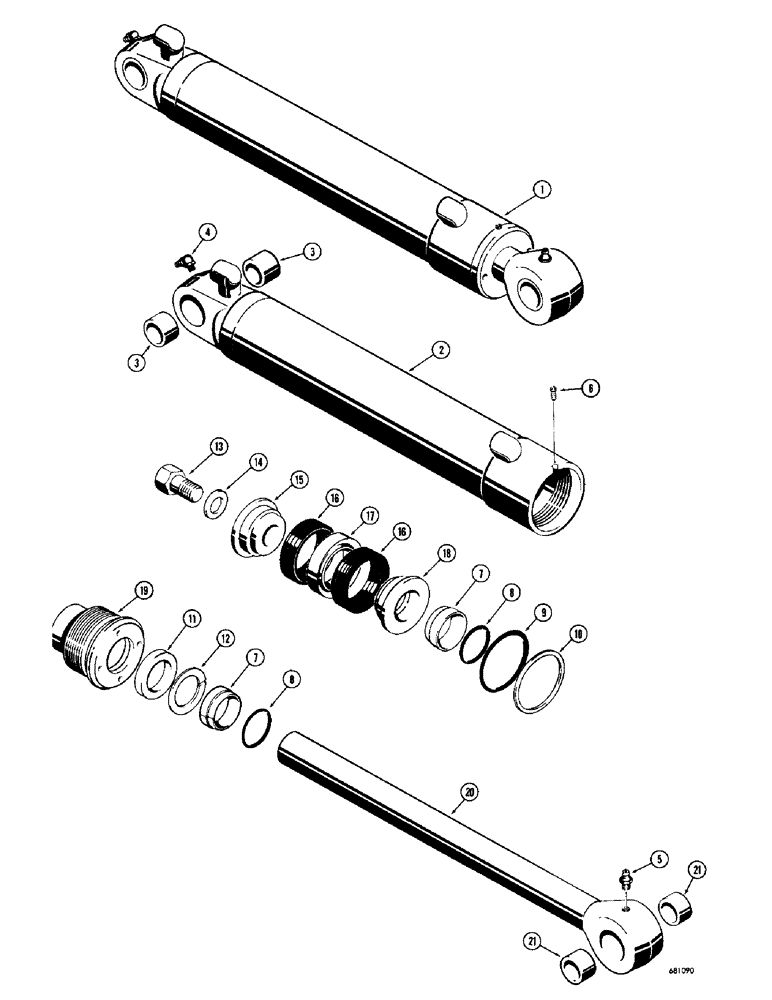

Запчасти Case 34 (122) - BACKHOE CROWD CYLINDER, CYLINDER WITH FLAT SNAP-IN TYPE OUTER ROD WIPER

1

D37623

CYLINDER - crowd, 1-1/16"-12 NF front port (4" I.D. x 35-1/8" stroke) When stock is exhausted, order D42626 cylinder and D42624 tube for service, Includes: Ref. 2 -20

1шт.

These cylinders use D37358, D41401 or D42876 Packing Kits. See figure 140 for kit components.

1шт.

1

D42626

CYLINDER - crowd, 7/8"-14 NF front port (4" I.D. x 35-1/8" stroke), Includes: Ref. 2 -20

1шт.

These cylinders use D37358, D41401 or D42876 Packing Kits. See figure 140 for kit components.

1шт.

2

D43110

TUBE - D37623 cylinder, Includes: Ref. 3

1шт.

2

D43298

TUBE

- D42626 cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

7

D27380

SCRAPER RING

WIPER - rod

2шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

10

D27382

RING

- backup, gland seal

1шт.

11

D36971

RING

SEAL - rod

1шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

13

D31642

BOLT

- special

1шт.

14

G32351

WASHER

- special

1шт.

15

D28370

PISTON

- split, bolt end half

1шт.

16

D43112

PACKING

- piston, chevron

2шт.

17

D43113

PACKAGE

RING - metal, piston packing

1шт.

18

D28371

PISTON

- split, rod end half

1шт.

19

D45071

GLAND

- packing

1шт.

20

D37728

ROD

- piston (2" dia.), Includes: D27186 & Ref. 21

1шт.

D27186

EYE AND BUSHING ASSEMBLY - rod, Includes: Ref. 21

1шт.

21

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.
