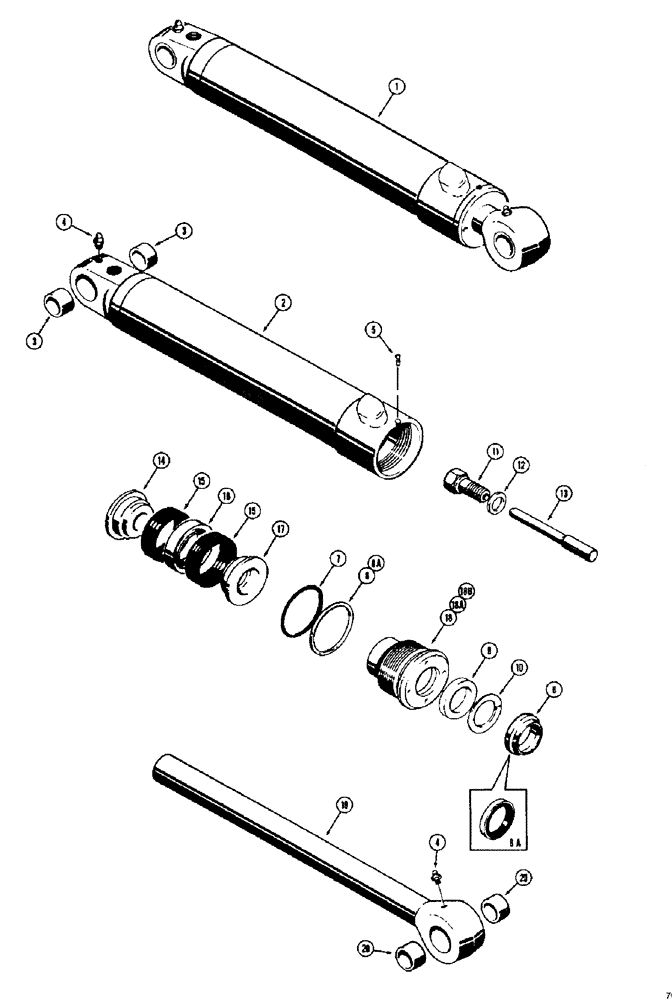

Запчасти Case 34 (120) - BACKHOE BOOM CYLINDERS

1

D40420

SPARE PART CYLINDER - boom, 4-1/2" I.D. x 39-3/16" stroke

1шт.

D40420, D43577 and D45503 cylinders use D42878 Packing Kit. G32673 cylinders uses G32285 Packing Kit. See Figure 144 for kit components.

1шт.

1

D43577

SPARE PART CYLINDER - boom, 4-1/2" I.D. x 39-3/16" stroke

1шт.

D40420, D43577 and D45503 cylinders use D42878 Packing Kit. G32673 cylinders uses G32285 Packing Kit. See Figure 144 for kit components.

1шт.

1

D45503

CYLINDER ASSY.

CYLINDER - boom, 4-1/2" I.D. x 39-3/16" stroke

1шт.

D40420, D43577 and D45503 cylinders use D42878 Packing Kit. G32673 cylinders uses G32285 Packing Kit. See Figure 144 for kit components.

1шт.

1

G32673

CYLINDER

CYLINDER - boom, 4-1/2" I.D. x 39-3/16" stroke

1шт.

D40420, D43577 and D45503 cylinders use D42878 Packing Kit. G32673 cylinders uses G32285 Packing Kit. See Figure 144 for kit components.

1шт.

2

D40419

X

TUBE - D40420 cylinder

1шт.

2

D43578

X

TUBE - D43577 cylinder

1шт.

2

D45504

CYLINDER

TUBE - D45503 and G32673 cylinder

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

BUSHING - tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

6

D39360

WIPER

WIPER - step type outer, if used

1шт.

6a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - U-type outer, if used

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D42452

RING

RING - backup, gland seal, spiral type

1шт.

8a

G32284

BACK-UP RING

RING - backup, gland seal, solid synthetic type

1шт.

8a

D38932

BACK-UP RING

RING - backup, gland seal, leather type

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

10

D39539

RING

RING - backup, rod seal, if used

1шт.

11

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

BOLT - special, D40420 cylinder, 1-1/4"-12 NF x 2-1/2", 3/8" hole thru head

1шт.

11

D45507

BOLT

BOLT - special, D43577 cylinder, 1-1/4"-NF x 2-1/2", 5/8" hole thru head

1шт.

11

D47195

SPARE PART BOLT - special, D45503 and G32673 cylinders, 1-1/4"-12 NF x 2-3/4", 5/8" hole thru head

1шт.

12

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - special

1шт.

13

D38679

PIN

PIN - cushion relief, used with D41359 bolt only

1шт.

13

D45508

PIN

PIN - cushion relief, used with D45507 bolt only

1шт.

13

D47196

PIN

PIN - cushion relief, used with D47195 bolt only

1шт.

14

D38934

PISTON

PISTON - split, bolt end half

1шт.

15

D42503

PACKING

PACKING - piston, chevron

2шт.

16

D42474

PACKAGE, RINGS

RING - metal, piston packing

1шт.

17

D38933

PISTON ASSY.

PISTON - split, rod end half

1шт.

18

D39369

GLAND

GLAND - packing, used with step type rod wiper (D40420, D43577 and D45503 cylinders only)

1шт.

18a

D49504

SPARE PART GLAND - packing, used with U-tupe rod wiper (G32673 cylinder only)

1шт.

19

D40416

SPARE PART ROD - piston, 2-1/4" dia.

1шт.

20

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

BUSHING - rod

2шт.
