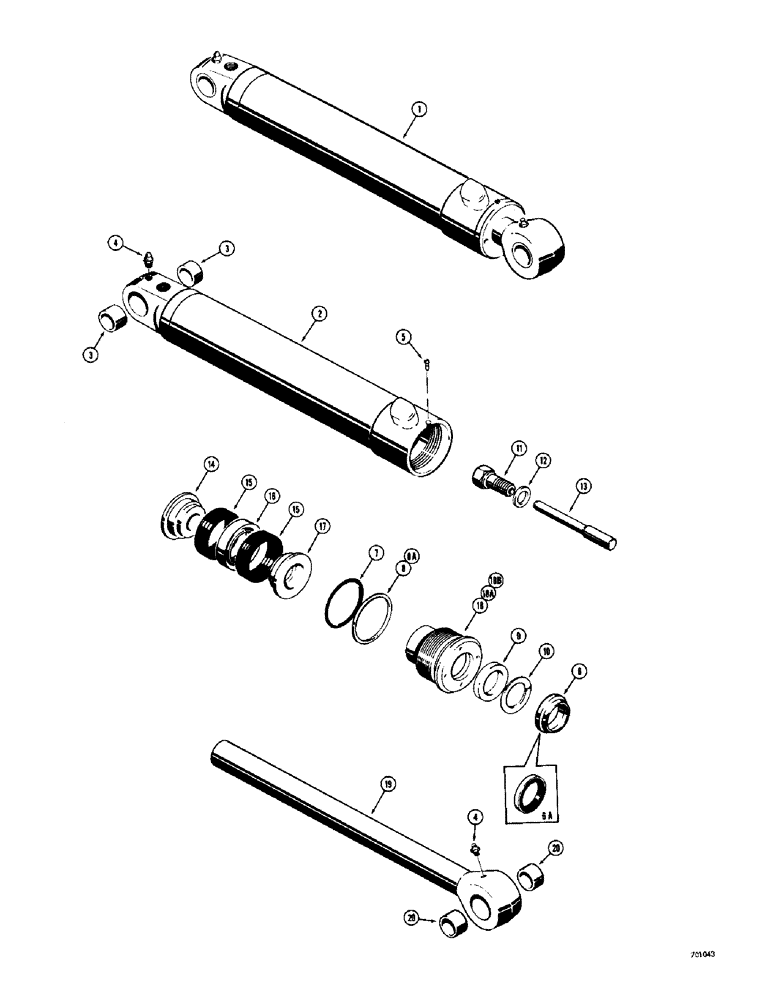

Запчасти Case 34 (118) - BACKHOE BOOM CYLINDERS, BACKHOE SN. 4176351 AND AFTER

1

D48962

CYLINDER - boom (4-1/2" I.D. x 39-3/16" stroke), Includes: Ref. 2 - 19

1шт.

D48962 and D49533 cylinders use D42878 Packing Kit. G32592 cylinder uses G32295 Packing Kit. See figure 144 for kit components.

1шт.

1

D49533

CYLINDER

- boom (4-1/2" I.D. x 39-3/16" stroke), Includes: Ref. 2 - 19

1шт.

D48962 and D49533 cylinders use D42878 Packing Kit. G32592 cylinder uses G32295 Packing Kit. See figure 144 for kit components.

1шт.

1

G32592

CYLINDER BLOCK

CYLINDER - boom (4-1/2" I.D. x 39-3/16" stroke), Includes: Ref. 2 - 19

1шт.

D48962 and D49533 cylinders use D42878 Packing Kit. G32592 cylinder uses G32295 Packing Kit. See figure 144 for kit components.

1шт.

2

D48979

CYLINDER

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D38478

BUSHING

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

6

D39360

WIPER

- step type outer (If used)

1шт.

6a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - U-type outer (If used)

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D42452

RING

- backup, gland seal (Spiral type)

1шт.

8a

G32284

BACK-UP RING

- backup, gland seal (Solid synthetic type)

1шт.

8a

D38932

BACK-UP RING

RING - backup, gland seal (Leather type)

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

10

D39539

RING

- backup, rod seal (If used)

1шт.

11

D48966

BOLT

- special

1шт.

12

D95033

WASHER

- special

1шт.

13

D47196

PIN

- cushion relief

1шт.

14

D46931

PISTON

- split, bolt end half

1шт.

15

D47205

PACKING

- piston, chevron

2шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - metal, piston packing

1шт.

17

D46425

PISTON

- split, rod end half

1шт.

18

D39369

GLAND

- packing, used with step type rod wiper (D48962 cylinder only)

1шт.

18a

D49502

GLAND

- packing, used with U-type rod wiper (D49533 cylinder only)

1шт.

18b

G32555

GLAND

- packing, used with U-type rod wiper (G32592 cylinder only)

1шт.

19

D48963

ROD

- piston (2-1/4" dia.), Includes: Ref. 20

1шт.

20

D38478

BUSHING

- rod

2шт.
