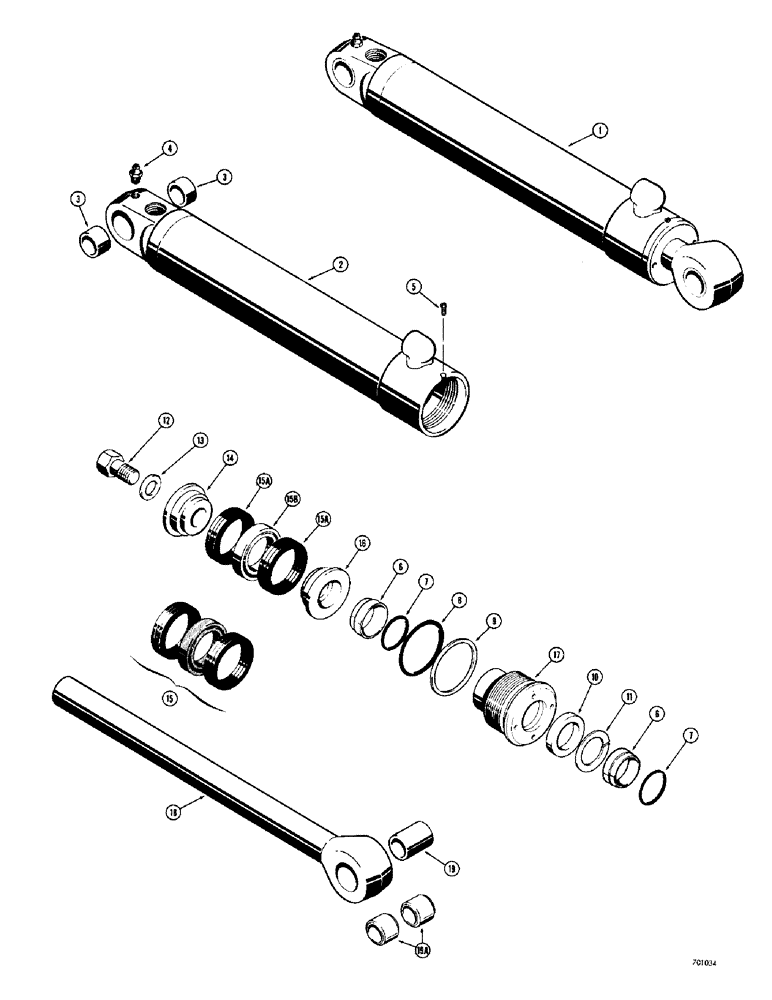

Запчасти Case 34 (102) - BACKHOE STBLZR CYL.,ALL 33 BACKHOES&34 BACKHOE BEF SN 1022951,CYL. W/ FLAT SNAPIN TYP OUTR ROD WIPER

1

D38695

CYLINDER ASSY.

CYLINDER - stabilizer, R.H. (3-1/2" I.D. x 16-3/8" stroke) Front port at 45 degree angle, Includes: Ref. 2 & 3

1шт.

These cylinders use D37356, D41399 or D42873 Packing Kits. See figure 134 for kit components.

1шт.

1

D38694

CYLINDER

- stabilizer, L.H. (3-1/2" I.D. x 16-3/8" stroke) Front port at 45 degree angle, Includes: Ref. 2 & 3

1шт.

These cylinders use D37356, D41399 or D42873 Packing Kits. See figure 134 for kit components.

1шт.

1

D40794

CYLINDER

- stabilizer (3-1/2" I.D. x 16-3/8" stroke) Front port on top, Includes: Ref. 2 & 3

2шт.

These cylinders use D37356, D41399 or D42873 Packing Kits. See figure 134 for kit components.

1шт.

2

D38693

TUBE

- D38695 cylinder

1шт.

2

D38692

TUBE - D38694 cylinder

1шт.

2

D37792

TUBE

- D40794 cylinder, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28367

PISTON

- split, bolt end half

1шт.

15

D36963

PACKING

- piston (D38694 and D38695 cylinders)

1шт.

15a

D42808

PACKAGE,SERVICE

PACKING - piston, chevron (D40794 cylinder)

2шт.

15b

D43545

RING

- metal, piston packing (D40794 cylinder)

1шт.

16

D28369

PISTON

- split, rod end half

1шт.

17

D45069

GLAND

- packing

1шт.

18

D37789

ROD

- piston (1-3/4" dia.), Includes: Ref. 19 & 19A

1шт.

19

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- rod, long (If used)

1шт.

19a

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod, short (If used)

2шт.
