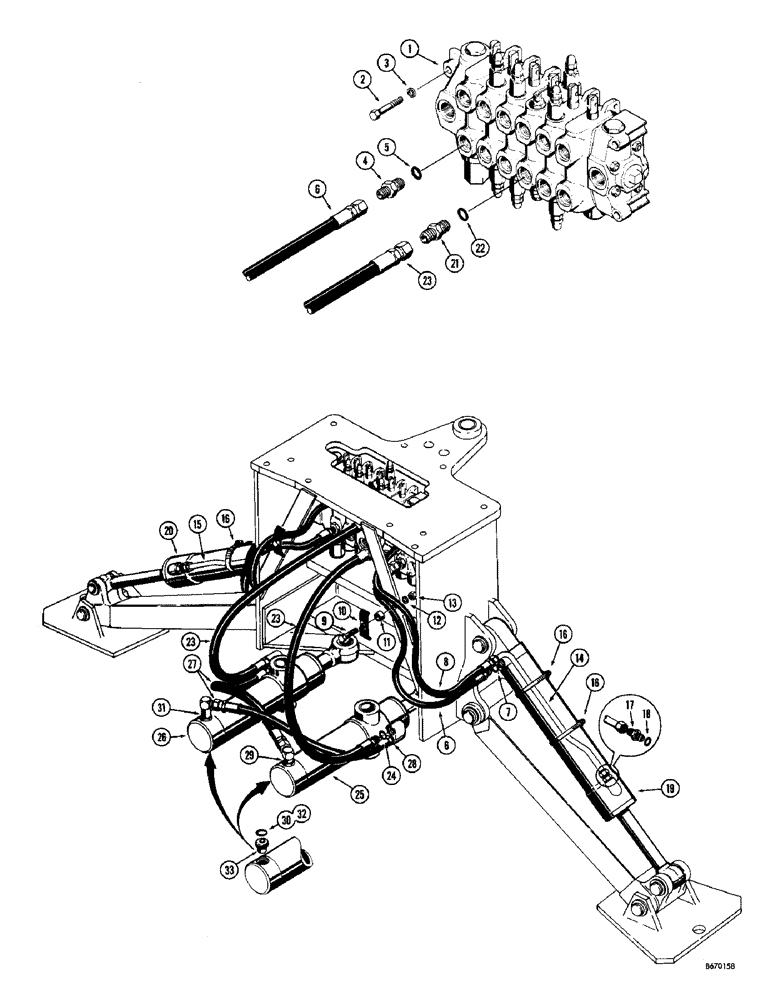

Запчасти Case 34 (072) - SWING AND STABILIZER CYLINDER HYDRAULICS, (EARLY PRODUCTION), STBLZR CYLDR HYDRLCS, SWING CYLDR HYDR

1

REF

INSTRUCTION

VALVE - backhoe control (Fig. 146 for proper valve)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, stabilizer cylinder hydraulics

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Stabilizer cylinder hydraulics

1шт.

6

D37221

HOSE ASSY.

Valve to stabilizer cylinders, closed end (32-1/2" long), stabilizer cylinder hydraulics, Includes: Ref. 7

2шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Seal, Stabilizer cylinder hydraulics

1шт.

8

D38657

HOSE ASSY.

Valve to stabilizer cylinders, rod end (29-1/8" long), stabilizer cylinder hydraulics

2шт.

9

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cylinder hydraulics

2шт.

10

D33316

CLAMP

Hose, stabilizer cylinder hydraulics

2шт.

11

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulics

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot (5/16"), stabilizer cylinder hydraulics

2шт.

13

131-4

LOCK NUT,5/16"-18, GB

Stabilizer cylinder hydraulics

2шт.

14

D38653

TUBE

Valve to RH stabilizer cylinder, rod end, stabilizer cylinder hydraulics

1шт.

15

D38654

KNOB

TUBE - valve to LH stabilizer cylinder, rod end, stabilizer cylinder hydraulics

1шт.

16

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Tube to cylinder, stabilizer cylinder hydraulics

4шт.

17

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male, straight, stabilizer cylinder hydraulics, Incl. Ref 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Stabilizer cylinder hydraulics

1шт.

19

REF

INSTRUCTION

CYLINDER - hydraulic, RH stabilizer (Figs.102 & 104 for proper cylinder), stabilizer cylinder hydraulics

1шт.

20

REF

INSTRUCTION

CYLINDER - hydraulic, LH stabilizer (Figs. 102 & 104 for proper cylinder), stabilizer cylinder hydraulics

1шт.

21

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, swing cylindder hydraulics, Includes: Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

23

D37219

HOSE

Valve to swing cylinder (30" long), swing cylinder hydraulics, Includes: Ref. 24

2шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, RH swing (Figs. 110 - 114 for proper cylinder), swing cylinder hydraulics

1шт.

26

REF

INSTRUCTION

CYLINDER - hydraulic, LH swing (Figs. 110 - 114 for proper cylinder), swing cylinder hydraulics

1шт.

27

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

Crossover, swing cylinders (23-1/2" long), swing cylinder hydraulics, Includes: Ref. 28

2шт.

29

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable (RH swing cylinder), swing cylinder hydraulics, Includes Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Swing cylinder hydraulics

1шт.

31

D36934

FITTING

ELBOW - adjustable, 90 degrees (LH swing cylinder), swing cylinder hydraulics, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Swing cylinder hydraulics

1шт.

33

D41462

FITTING

RESTRICTOR - flow control, swing cylinder hydraulics

2шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.
