(052) - BACKHOE BUCKTS-MACHRY ITEMS,OPTL TYP,TRNCHING BUCKT,BOSS KIT D37473,D37474,D37475 & D37476

Запчасти Case 34 (052) - BACKHOE BUCKTS-MACHRY ITEMS,OPTL TYP,TRNCHING BUCKT,BOSS KIT D37473,D37474,D37475 & D37476

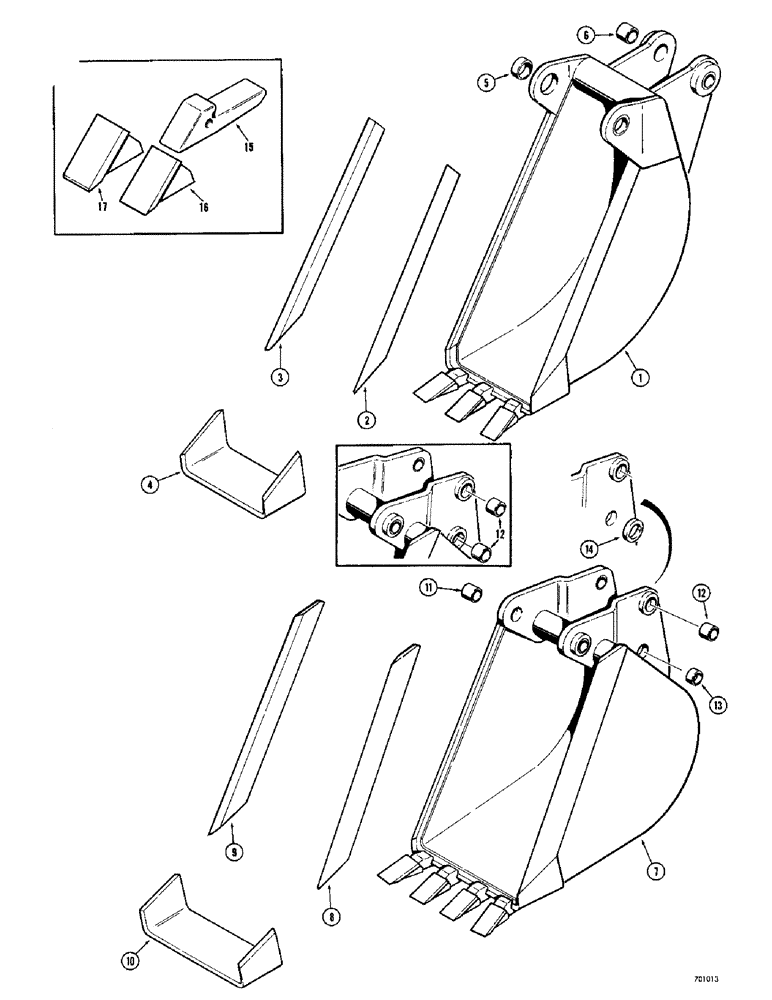

Схема запчастей Case 34 - (052) - BACKHOE BUCKTS-MACHRY ITEMS,OPTL TYP,TRNCHING BUCKT,BOSS KIT D37473,D37474,D37475 & D37476
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D37472

BUCKET - backhoe, trenching (12 inch), Includes: Ref. 2 - 6

1шт.

2

D29424

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

3

D29423

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

4

D37464

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

7

D37473

BUCKET

- backhoe, trenching (18 inch), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37642

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole (Used in lower hole only if bucket lug has boss)

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole (Used if bucket lug does not have boss)

2шт.

7

D37474

BUCKET

- backhoe, trenching (24 inch), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37507

EDGE

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole (Used in lower hole only if bucket lug has boss)

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole (Used if bucket lug does not have boss)

2шт.

7

D37475

BUCKET

- backhoe, trenching (30 inch), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37505

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole (Used in lower hole only if bucket lug has boss)

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole (Used if bucket lug does not have boss)

2шт.

7

D37476

BUCKET

- backhoe, trenching (36 inch), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37471

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole (Used in lower hole only if bucket lug has boss)

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole (Used if bucket lug does not have boss)

2шт.

14

D50763

KIT

- boss, trenching bucket (Includes 2-D50760 bosses and instructions sheet), box kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses

1шт.

15

D26368

SUPPORT

SHANK - tooth

1шт.

16

D27748

TOOTH

POINT - tooth (Standard)

1шт.

17

D36720

TOOTH

POINT - tooth, service option (Heavy duty)

1шт.
