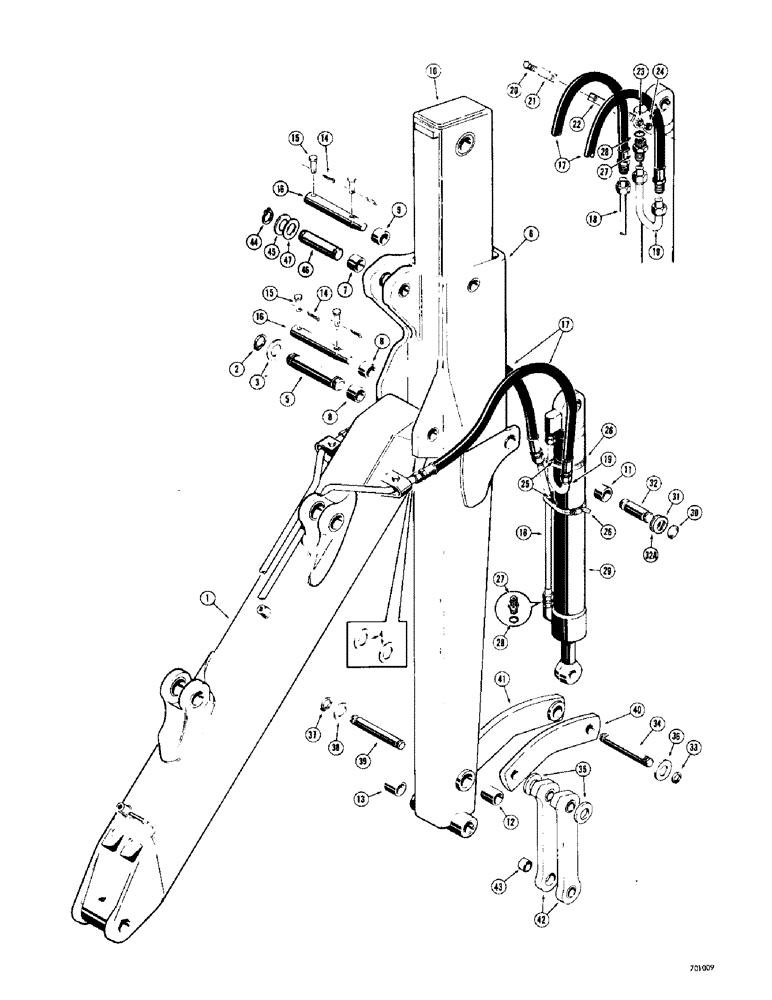

Запчасти Case 34 (046) - MECHANICALLY EXTENDABLE DIPPER, BACKHOE SN. 4141636 AND AFTER

1

REF

INSTRUCTION

BOOM - backhoe (Fig. 32 or 36 for proper boom)

1шт.

2

D26919

SNAP RING,#200, Ext

2шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

Steel

2шт.

4

72990

WASHER

Special, 1/16" thick

1шт.

5

D37609

PIN

Boom to dipper arm

1шт.

D38904

COLLAR ASSEMBLY - dipper extension, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

COLLAR - dipper extension

1шт.

7

D38479

BUSHING

SPARE PART Collar, at crowd cylinder

2шт.

8

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

Collar, at boom

2шт.

9

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

Collar, at positioning pin

4шт.

D38906

SPARE PART ASSEMBLY - extension, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

DIPPER ARM - extension

1шт.

11

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

Dipper arm, at bucket cylinder

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

Dipper arm, at bucket link

2шт.

13

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

Dipper arm, at bucket

2шт.

14

132-48

COTTER PIN,1/8" x 1"

4шт.

15

A10123

SPARE PART Clevis

4шт.

16

D38902

SPARE PART Dipper extension positioning

2шт.

17

D43138

SLEEVE

HOSE - to bucket cylinder (60" long)

2шт.

18

D40647

TUBE

To bucket cylinder, rod end

1шт.

19

D40655

TUBE

To bucket cylinder, closed end

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

R21385

CLAMP

Hose

2шт.

22

D39124

SPARE PART SPACER BAR - hose

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot (5/16")

2шт.

24

131-4

LOCK NUT,5/16"-18, GB

2шт.

25

D38648

BLOCK

SPACER - tube clamp

2шт.

26

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Tube to cylinder

2шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Male, straight, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (Fig. 128 & 130 for proper cylinder)

1шт.

30

D25280

SNAP RING,#175, Ext

2шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

Steel

2шт.

32

D38907

PIN,1.75" OD x 5 5/16 L

Bucket cylinder to dipper arm

1шт.

32a

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

Special, 1/16" thick

1шт.

33

D25279

SNAP RING,M35, Int

Retaining

2шт.

34

D39256

AXLE PIN,38.1mm OD x 238.13mm L

Bucket cylinder to bucket linkage

1шт.

35

D39261

WASHER

SPACER - link (Used with D37452 links only)

2шт.

36

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

Special, 1/8" thick

2шт.

37

D25279

SNAP RING,M35, Int

Retaining

2шт.

38

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

Special, 1/8" thick

2шт.

39

D39256

AXLE PIN,38.1mm OD x 238.13mm L

Bucket linkage to dipper arm

1шт.

40

D37445

LINK

Bucket cylinder to dipper arm, RH (Fig. 34 or 36 for bushings)

1шт.

41

D37444

LINK

SPARE PART Bucket cylinder to dipper arm, LH (Fig. 34 or 36 for bushings)

1шт.

42

D37452

LINK

Bucket cylinder to bucket, Includes: Ref. 43

2шт.

43

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

Link

2шт.

44

D25280

SNAP RING,#175, Ext

2шт.

45

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

Steel

2шт.

46

D38481

PIN

Dipper, Serial Range: cylinder-dipper

1шт.

47

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

Special, 1/16" thick

1шт.
