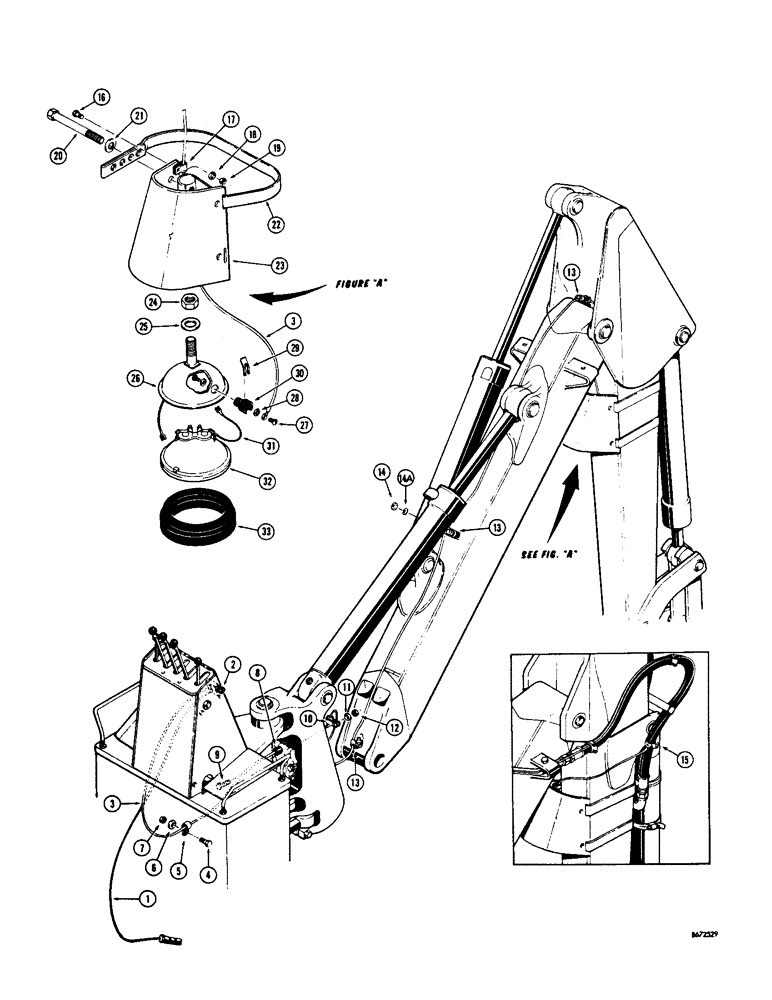

Запчасти Case 34 (12) - DIPPER LIGHT

1

L11543

WIRE - taillight harness to console (45-1/2" long)

1шт.

2

G13142

IGNITION SWITCH

SWITCH - dipper light

1шт.

3

D37808

WIRE - console to dipper light (216" long)

1шт.

4

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

5

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at mounting frame

1шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

8

D37810

GROMMET - at swing tower

1шт.

9

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

10

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at swing tower

1шт.

11

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

13

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at boom

3-4шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) Early production

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Late production) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14a

92-6

LOCK WASHER,3/8"

late production 3/8"

2шт.

15

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(Used with extendable dipper only) #28, 1.31/2.25 Type F Worm

3шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at dipper

1шт.

18

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

19

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

20

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

D41171

BAND

STRAP - light mounting

2шт.

23

D41427

SHIELD

- dipper lamp

1шт.

24

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

1шт.

25

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

27

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- special

2шт.

28

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - lock, #8 (External Shakeproof)

2шт.

29

10927

SPRING

- lamp

1шт.

30

B50293

TERMINAL CONNECTOR

- lamp

1шт.

31

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

32

D33182

LAMP

BULB - seal beam

1шт.

33

D31441

RETAINER

- lamp

1шт.
