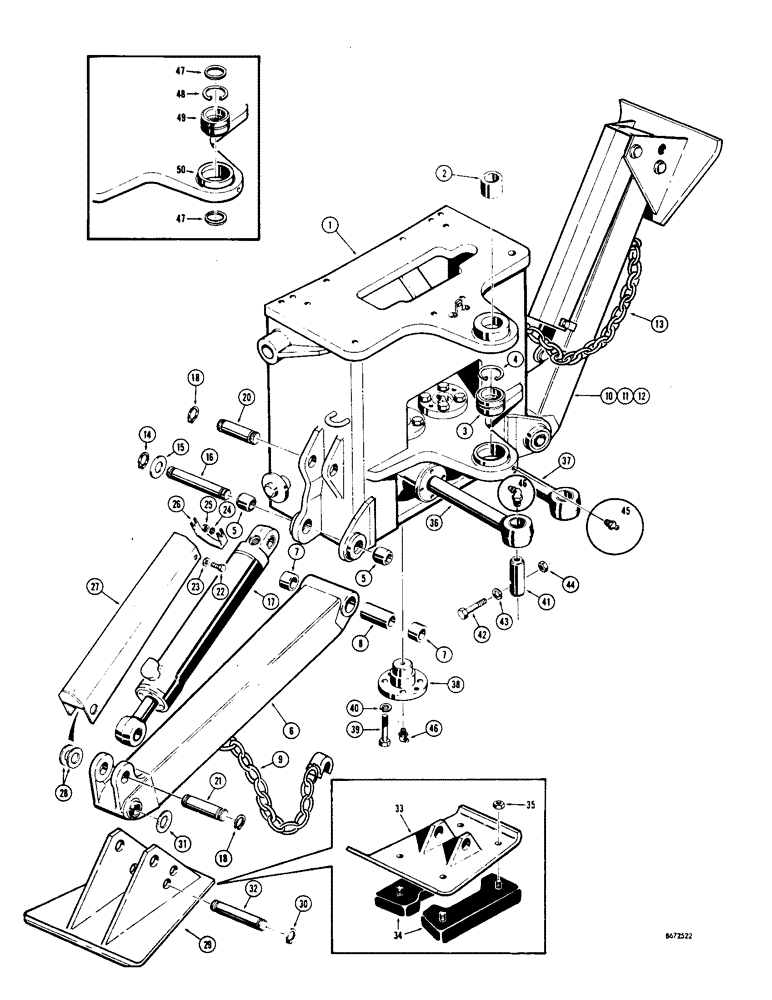

Запчасти Case 34 (04) - MOUNTING FRAME AND STABILIZERS

1

D41432

FRAME - backhoe mounting

1шт.

2

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- upper, frame to swing tower

1шт.

3

D23601

HOUSING

BUSHING - pivotal ball type (See D14016 bushing kit below)

1шт.

4

D24431

RING

- bushing retaining (See D14016 bushing kit below)

1шт.

5

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- lower, stabilizer bracket

4шт.

6

D37426

SUPPORT ASSY.

LEG - stabilizer, R.H.

1шт.

7

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

-, Serial Range: leg-frame

2шт.

8

D38134

BUSHING

SPACER - bushing

1шт.

9

D39373

CHAIN (AG)

CHAIN - transport

1шт.

10

D37425

SUPPORT ASSY.

LEG - stabilizer, L.H.

1шт.

11

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

-, Serial Range: leg-frame

2шт.

12

D38134

BUSHING

SPACER - bushing

1шт.

13

D39373

CHAIN (AG)

CHAIN - transport

1шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

15

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

4шт.

16

D37602

PIN

- stabilizer, Serial Range: leg-frame

2шт.

17

D38695

CYLINDER ASSY.

CYLINDER - hydraulic, R.H. stabilizer (3-1/2" I.D. x 16-3/8" stroke) Early production (Parts list Figure 32)

1шт.

D38694

CYLINDER

- hydraulic, L.H. stabilizer (3-1/2" I.D. x 16-3/8" stroke) Early production (Part list Figure 32)

1шт.

D40794

CYLINDER

- hydraulic, stabilizer (3-1/2" I.D. x 16-3/8" stroke) Late production (Parts list Figure 34)

2шт.

18

D25279

SNAP RING,M35, Int

RING - pin retaining

8шт.

19

RESERVED

1шт.

20

D37606

PIN,38.1mm OD x 103.5mm L

- stabilizer cylinder, closed end

2шт.

21

D42611

PIN

- stabilizer cylinder, rod end

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

26

D40931

STRAP - shield mounting

2шт.

27

D40933

SHIELD - stabilizer cylinder

2шт.

28

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

4шт.

29

D42614

FOOT - stabilizer, cleated

2шт.

30

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

31

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, steel (1-5/16")

4шт.

32

D37603

PIN

- stabilizer foot

2шт.

33

D38079

FOOT REST

FOOT - stabilizer, street or cemetery pad (Optional)

2шт.

34

D40469

SHOE (ASSY)

PAD - rubber, D38079 stabilizer foot (Optional)

4шт.

35

D29712

SPECIAL NUT

- hex., special

8шт.

36

D37626

HYDRAULIC CYLINDER

CYLINDER - hydraulic, R.H. swing (4" I.D. x 11" stroke) Parts list Figure 38

1шт.

37

D37625

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. swing (4" I.D. x 11" stroke) Parts list Figure 38

1шт.

38

D30724

PIN

- swing, Serial Range: cylinder-frame

4шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

16шт.

40

92-8

LOCK WASHER,1/2"

16шт.

41

D30761

PIN

- swing cylinder to swing tower

2шт.

42

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

2шт.

43

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

44

25-1010

NUT,5/8"-11, G5

2шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

46

219-39

FITTING

- grease, 45 degrees (1/8" NPT)

6шт.

D14016

KIT

- bushing, lower mounting frame

1шт.

47

D26991

BEARING

SPACER - bearing

2шт.

48

D24431

RING

- bushing retaining

1шт.

49

D23601

HOUSING

BUSHING - pivotal ball type

1шт.

50

D42630

BEARING

RETAINER - bearing

1шт.
