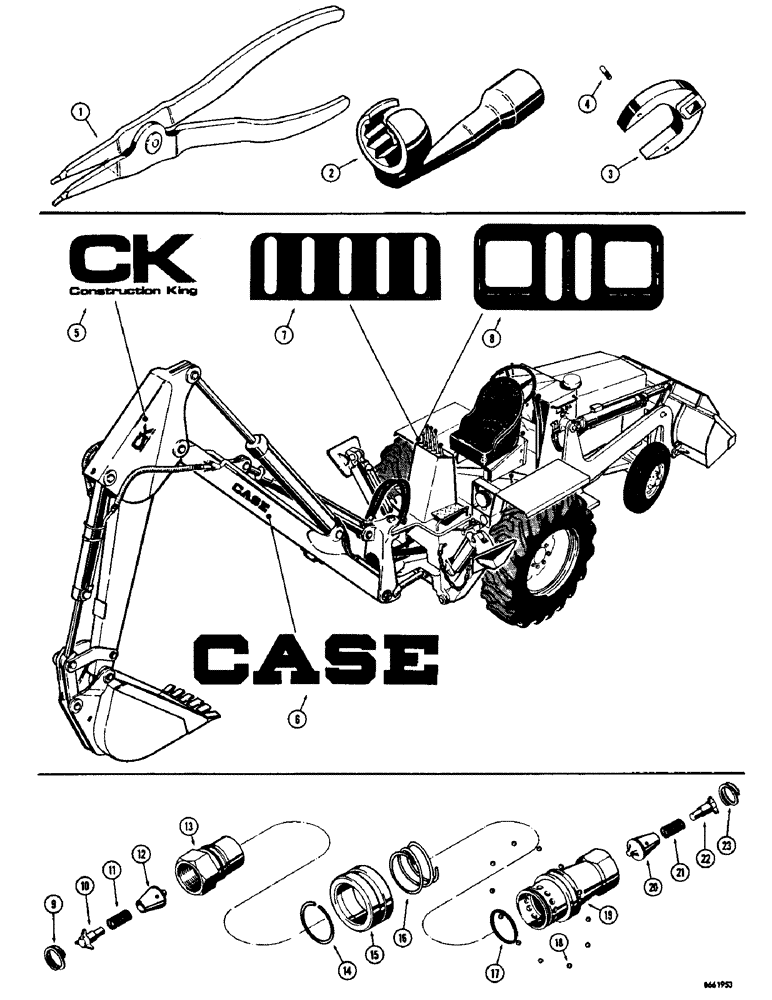

Запчасти Case 34 (56) - TOOLS
№
Артикул
Название
Примечание
Количество
1
D32049
TOOL
PLIERS - snap ring
1шт.
2
D38971
TOOL
WRENCH - crowfoot, 1/2" drive (For backhoe hose 1" fittings)
1шт.
2
D27216
TOOL
WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/16" fittings)
1шт.
2
D28774
TOOL ASSY.
WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/4" fittings)
1шт.
D12631
SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)
1шт.
3
D30102
WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods (Includes ref. no. 4)
1шт.
3
D30103
WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod (Includes ref. no. 4)
1шт.
3
D30104
WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod (Includes ref. no. 4)
1шт.
3
D30105
WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods (Includes ref. no. 4)
1шт.
3
D30106
WRENCH - spanner, for 4" I.D. cylinders with 2" piston rod (Includes ref. no. 4)
1шт.
4
D30107
PIN
- spanner wrench
2шт.
5
321-1003
DECAL
- Construction King, on dipper
2шт.
6
321-1010
DECAL
- Case, on boom
2шт.
7
321-1009
DECAL
- backhoe control panel (Used on individual lever console)
1шт.
8
321-1037
DECAL - backhoe control panel (Used on dual lever console)
1шт.
L10904
COUPLING
- male half, hyd coupling
1шт.
9
L30617
RING - spiral, valve retaining, hyd coupling
1шт.
10
L30616
GUIDE
- valve, hyd coupling
1шт.
11
L30618
SPRING - valve, hyd coupling
1шт.
12
L30619
VALVE - coupling, hyd
1шт.
13
L30625
BODY - coupling, male, hyd
1шт.
L10905
COUPLING
- female half, hyd
1шт.
14
L30621
RING
- retaining, sleeve, hyd coupling
1шт.
15
L30623
SLEEVE - ball retaining, hyd coupling
1шт.
16
L30622
SPRING - sleeve, hyd coupling
1шт.
17
L30620
X
SEAL - "O" ring, hyd coupling
1шт.
18
L30157
BALL - coupling, hyd
12шт.
19
NSS
NOT SOLD SEPARAT
BODY - coupling, female, hyd
1шт.
20
L30619
VALVE - coupling, hyd
1шт.
21
L30618
SPRING - valve, hyd coupling
1шт.
22
L30616
GUIDE
- valve, hyd coupling
1шт.
23
L30617
RING - spiral, valve retaining, hyd coupling
1шт.
Выбрано товаров: 32
