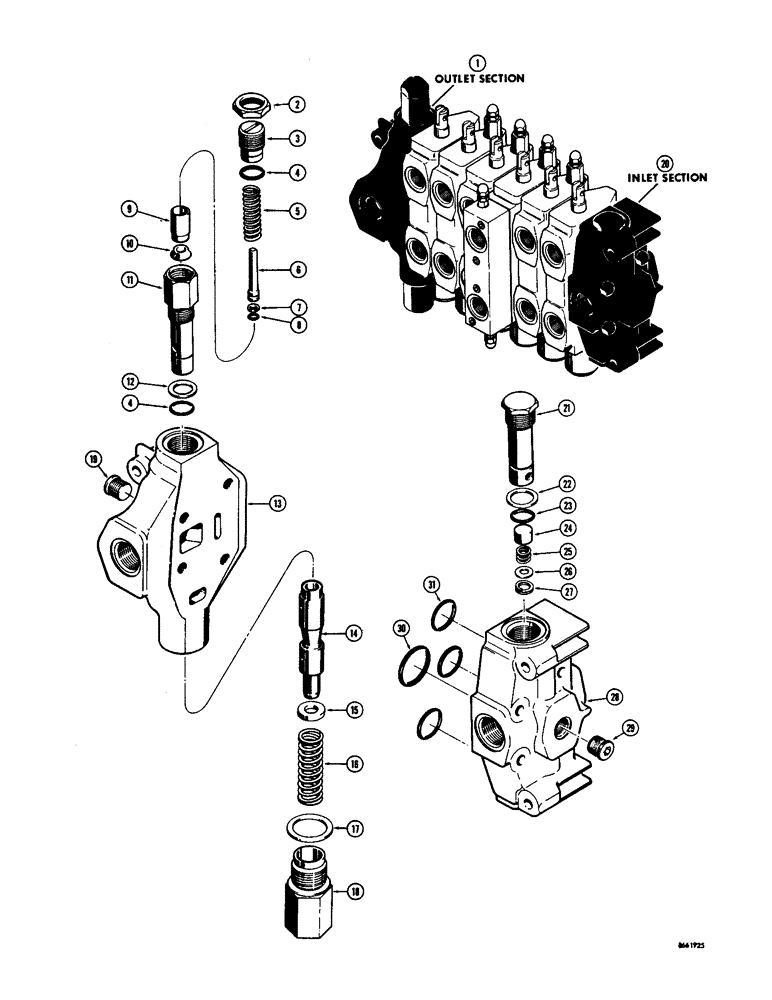

Запчасти Case 34 (46) - D40758 BACKHOE OUTLET SECTION, D40753 BACKHOE INLET SECTION
№
Артикул
Название
Примечание
Количество
1
D40758
OUTLET SECTION - backhoe control valve
1шт.
D32126
FILTER
CARTRIDGE - relief
1шт.
2
R12507
LOCK NUT
- lock, adjusting screw
1шт.
3
R21364
SCREW
- spring adjusting
1шт.
4
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
5
D32476
SPRING
- compression
1шт.
6
R16125
PLUNGER
- displacement
1шт.
7
R12509
RING
- backup
1шт.
8
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
9
R12510
SEAT
- floating
1шт.
10
R16123
WASHER, THRUST
SNUBBER - check valve
1шт.
11
D39700
KIT
SHELL ASSEMBLY - cartridge
1шт.
12
23146
WASHER
- gasket
1шт.
13
NSS
NOT SOLD SEPARAT
HOUSING - outlet section
1шт.
14
D40827
SPOOL - regeneration, outlet section
1шт.
15
D36807
SPACER
- spool
1шт.
16
D36600
VALVE SPRING
SPRING - spool
1шт.
17
D40759
GASKET
- cap
1шт.
18
D36805
CAP - outlet section
1шт.
19
221-845
PLUG,Hex Soc, 3/4"-14
- pipe, hex. socket head (3/4" NPT)
1шт.
20
D40753
INLET SECTION - backhoe control valve
1шт.
D40775
VALVE
ASSEMBLY - check, D40753 backhoe inlet section
1шт.
21
D40819
CARTRIDGE - check valve, D40753 backhoe inlet section
1шт.
22
D40822
WASHER
GASKET - cartridge, D40753 backhoe inlet section
1шт.
23
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring, D40753 backhoe inlet section
1шт.
24
D40820
POPPET - check valve, D40753 backhoe inlet section
1шт.
25
D26826
COMPRESSION SPRING
SPRING - check valve, D40753 backhoe inlet section
1шт.
26
D40821
RETAINER
- spring, D40753 backhoe inlet section
1шт.
27
R15512
SNAP RING,#87, .929", Int, Spiral
RING - spirolox, D40753 backhoe inlet section
1шт.
28
NSS
NOT SOLD SEPARAT
HOUSING - D40753 backhoe inlet section
1шт.
29
221-845
PLUG,Hex Soc, 3/4"-14
- pipe, hex. socket head (3/4" NPT), D40753 backhoe inlet section
1шт.
30
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D., D40753 backhoe inlet section
1шт.
31
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D., D40753 backhoe inlet section
3шт.
Выбрано товаров: 33
