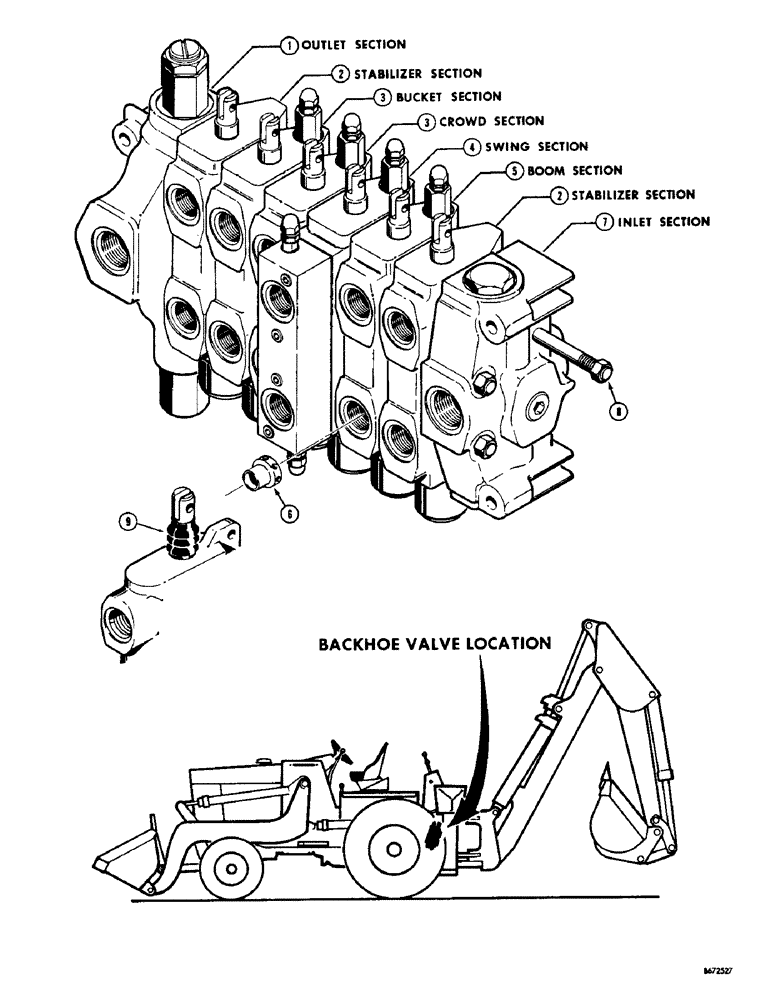

Запчасти Case 34 (44) - D38705 BACKHOE CONTROL VALVE

D38705

VALVE - backhoe control

1шт.

1

D40758

OUTLET SECTION - backhoe control valve (Parts list Figure 46)

1шт.

2

D40754

STABILIZER SECTION - backhoe control valve (Parts list Figure 48)

2шт.

3

D40757

BUCKET AND CROWD SECTION - backhoe control valve (Parts list Figure 50)

2шт.

4

D40756

KNIFE SECTION

SWING SECTION - backhoe control valve (Parts list Figure 52)

1шт.

5

D40755

BOOM SECTION - backhoe control valve (Parts list Figure 54)

1шт.

6

D27565

VALVE

RESTRICTOR - boom drop, boom section only

1шт.

7

D40753

INLET SECTION - backhoe control valve (Parts list Figure 46)

1шт.

8

D26846

STUD

ASSEMBLY - backhoe control valve

4шт.

9

D42631

BELLOWS

- valve spool, service option

6шт.
