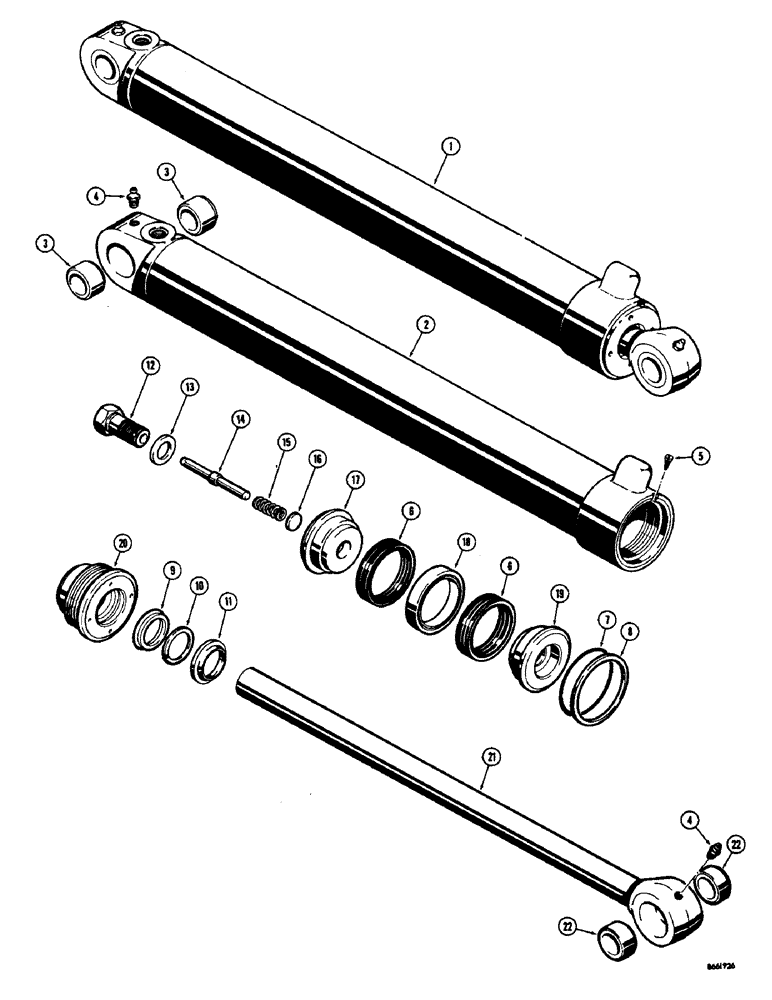

Запчасти Case 34 (40) - D40420 BACKHOE BOOM CYLINDER

1

D40420

CYLINDER - hydraulic, boom (4-1/2" I.D. x 39-3/16" stroke)

1шт.

2

D40419

X

TUBE - cylinder

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

D41211

X

KIT - packing, gland type cylinder

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D40691

PACKING

- piston, Chevron

2шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

8

D42452

RING

- backup, gland seal

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

10

D39539

RING

- backup, rod seal

1шт.

11

D39360

WIPER

- rod

1шт.

12

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- special

1шт.

13

D36434

WASHER

- special

1шт.

14

D38679

PIN

- restrictor

1шт.

15

D38683

SPRING

- pin

1шт.

16

D38684

SPACER

- spring

1шт.

17

D38934

PISTON

- split, bolt end

1шт.

18

D40692

PACKAGE, RINGS

RING - packing, piston

1шт.

19

D38933

PISTON ASSY.

PISTON - split, eye end

1шт.

20

D39369

GLAND

- packing

1шт.

21

D40416

ROD - piston (2-1/4" dia.)

1шт.

22

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.
