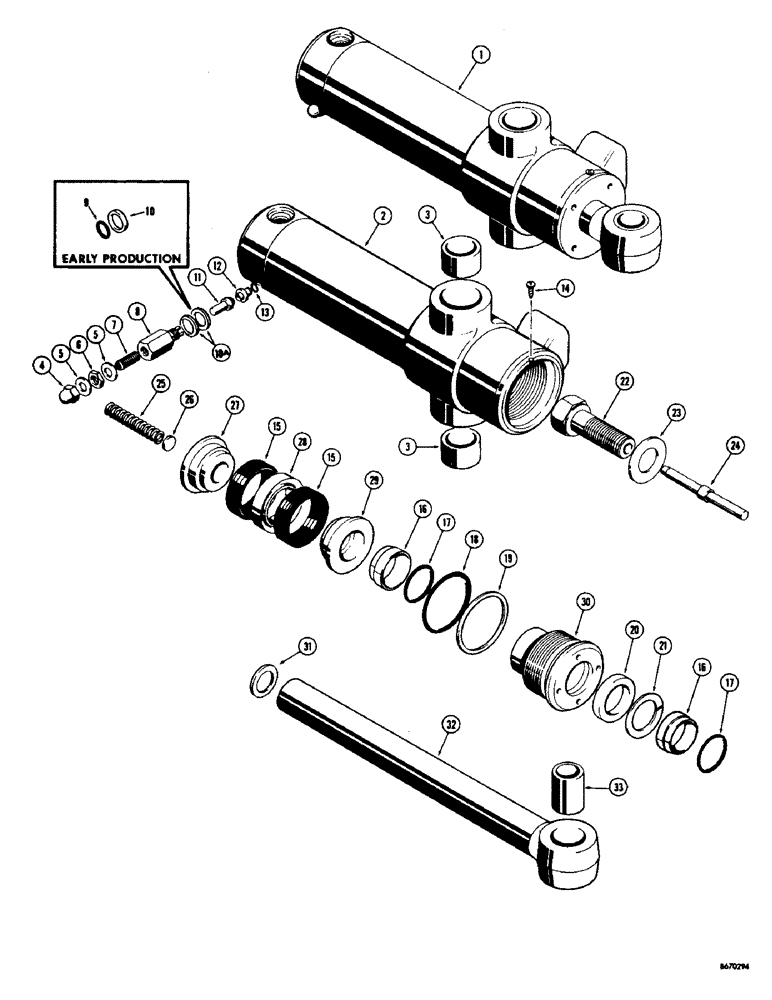

Запчасти Case 34 (38) - D37625 AND D37626 BACKHOE SWING CYLINDERS

1

D37625

CYLINDER ASSY.

CYLINDER - hydraulic, swing (L.H.) 4" I.D. x 11" stroke

1шт.

D37626

HYDRAULIC CYLINDER

CYLINDER - hydraulic, swing (R.H.) 4" I.D. x 11" stroke

1шт.

2

D37737

CYLINDER

TUBE - cylinder, L.H.

1шт.

D37738

CYLINDER

TUBE - cylinder, R.H.

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

- tube

2шт.

D42478

VALVE

CARTRIDGE - relief valve (Not preset) Must be set to correct pressure when installed on cylinder

1шт.

Relief valve has been relocated at closed end of cylinder on late production cylinders.

1шт.

4

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

5

23150

WASHER

GASKET - copper

2шт.

6

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

7

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

8

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cartridge

1шт.

9

D26872

O-RING

SEAL - "O" ring, order 2-16219 gaskets to replace D26872 seal and D31450 gasket for service

1шт.

10

D31450

WASHER

GASKET - copper, order 2-16219 gaskets to replace D26872 seal and D31450 gasket for service

1шт.

10a

16219

GASKET

- special

2шт.

D40187

PACKAGE

KIT - seat and poppet

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

13

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D41400

X

KIT - packing, gland type cylinder

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

15

D40689

PACKING

- piston, Chevron

2шт.

16

D27432

SHIM

- rod

2шт.

17

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

19

D27382

RING

- backup, gland seal

1шт.

20

D36970

CUP

SEAL - rod

1шт.

21

D28499

RING

- backup, rod seal

1шт.

22

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- special

1шт.

23

D36434

WASHER

- special, bolt

1шт.

24

D38679

PIN

- restrictor

1шт.

25

D38683

SPRING

- pin

1шт.

26

D38684

SPACER

- spring

1шт.

27

D38686

PISTON

- split, bolt end

1шт.

28

D40690

PACKING RING

RING - packing, piston

1шт.

29

D38687

PISTON

- split, eye end

1шт.

30

D30844

GLAND

- packing

1шт.

31

D38676

WASHER

- special, rod

1шт.

32

D37736

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

33

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- rod

1шт.
