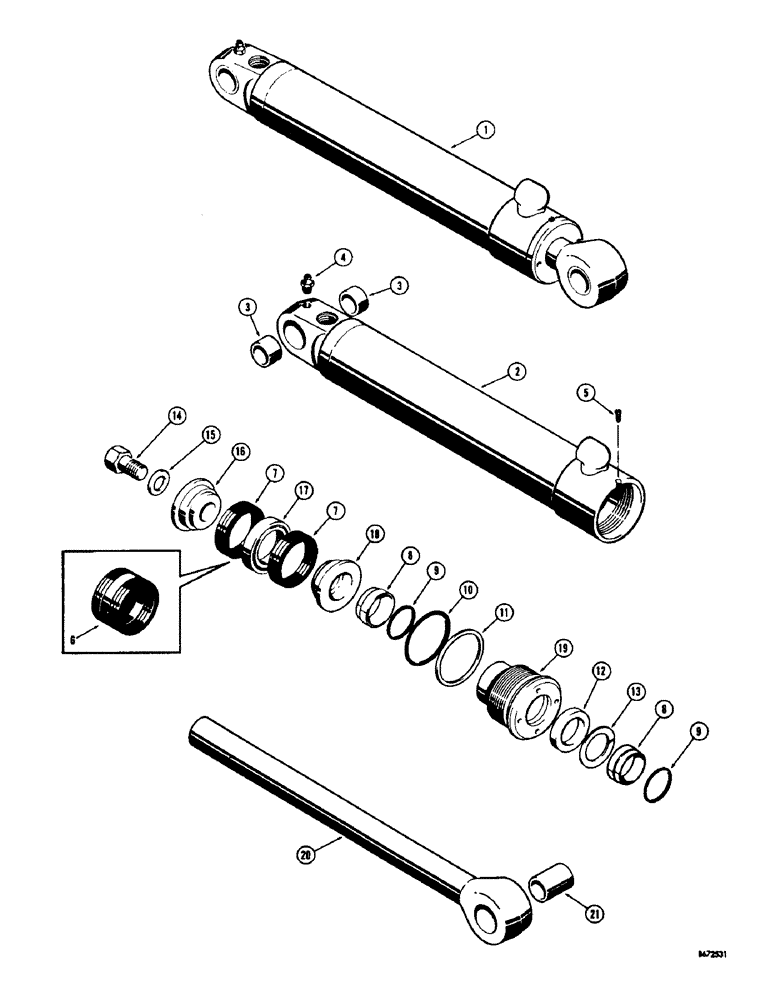

Запчасти Case 34 (34) - D40794 BACKHOE STABILIZER CYLINDER, LATE PRODUCTION

1

D40794

CYLINDER

- hydraulic, stabilizer (3-1/2" I.D. x 16-3/8" stroke)

2шт.

2

D37792

TUBE

- cylinder

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D37356

GLAND

KIT - packing, gland type cylinder (When stock is exhausted, order 1-D41399 kit and 1-D41279 bronze packing ring for service)

1шт.

D41399

SEAL KIT

KIT - packing, gland type cylinder (Order with 1-D41279 bronze packing ring when used on cylinder not having bronze packing ring)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D36963

PACKING

- piston (Used in D37356 kit only) When stock is exhausted, order 2-D41278 packings and 1-D41279 bronze packing ring for service

1шт.

7

D41278

PACKING

- piston, Chevron (Used in D41399 kit only)

2шт.

8

D27432

SHIM

- rod

2шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

11

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

12

D36970

CUP

SEAL - rod

1шт.

13

D28499

RING

- backup, rod seal

1шт.

14

D32861

BOLT

- special

1шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

17

D41279

PACKAGE, RINGS

RING - bronze, piston packing (Used with D41278 Chevron type packing only)

1шт.

18

D28369

PISTON

- split, eye end

1шт.

19

D27431

GLAND

- packing

1шт.

20

D37789

ROD

- piston (1-3/4" dia.)

1шт.

21

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- rod

1шт.
