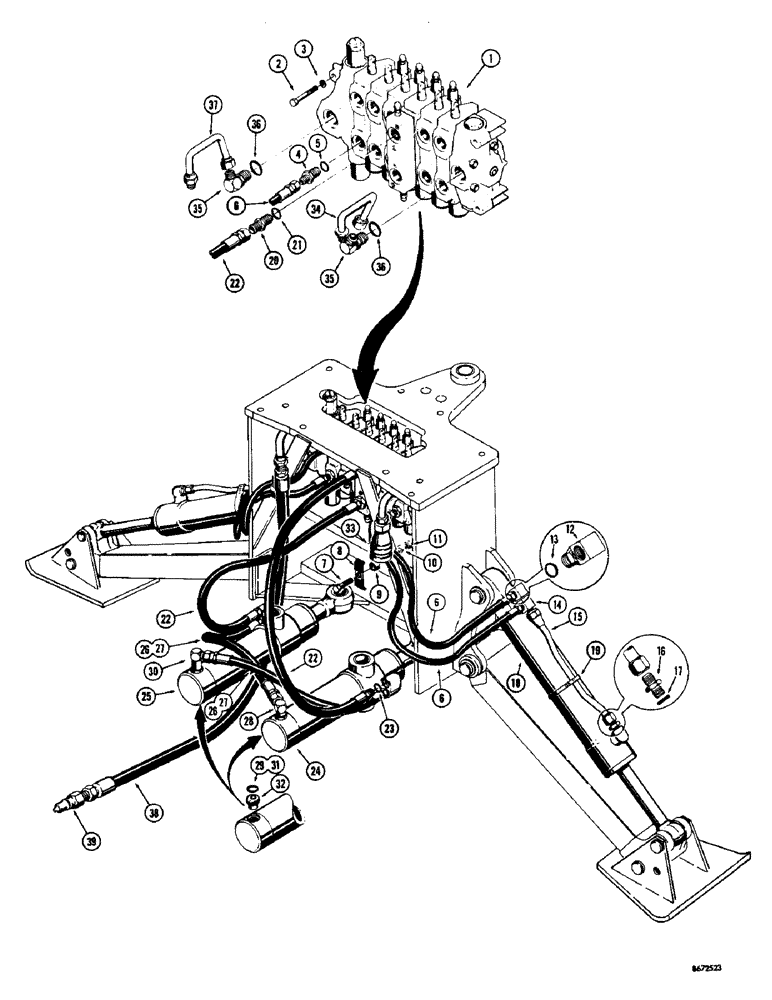

Запчасти Case 34 (26) - SWING, STABILIZER, INLET AND OUTLET HYDRAULICS, (LATE

1

D38705

VALVE - backhoe control (Parts list Figure 44)

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Lower mounting hole in valve inlet section) Hex, 1/2"-13 x 4", G5

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

(Upper mounting hole in valve inlet section, mounting hole in valve outlet section) Hex, 1/2"-13 x 4 1/4", G5

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, stabilizer cyl hyds

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, stabilizer cyl hyds

1шт.

6

D40809

HOSE

- valve to stabilizer cylinders (33-1/2" long)

4шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cyl hyds Hex, 5/16"-18 x 2 1/4", G5

2шт.

8

D33316

CLAMP

- hose, stabilizer cyl hyds

2шт.

9

D33829

BUSHING

SPACER - clamp, stabilizer cyl hyds

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), stabilizer cyl hyds

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), stabilizer cyl hyds

2шт.

12

D23974

ELBOW

- adjustable, 90 degrees (Stabilizer cylinder - closed end)

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cyl hyds

1шт.

14

D26361

FITTING

ELBOW - female, 90 degrees, stabilizer cyl hyds

2шт.

15

D40810

TUBE

- valve to stabilizer cylinder, rod end

2шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, stabilizer cyl hyds

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cyl hyds

1шт.

18

D40794

CYLINDER

- hydraulic, stabilizer (3-1/2" I.D. x 16-3/8" stroke) Parts list Figure 34

2шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, stabilizer cyl hyds

2шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, swing cyl hyds

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, swing cyl hyds

1шт.

22

D37219

HOSE

- valve to swing cylinders (30" long)

2шт.

24

D37626

HYDRAULIC CYLINDER

CYLINDER - hydraulic, R.H. swing (4" I.D. x 11" stroke) Parts list Figure 38

1шт.

25

D37625

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. swing (4" I.D. x 11" stroke) Parts list Figure 38

1шт.

26

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, swing cylinders (23-1/2" long)

2шт.

28

D25667

ELBOW

- adjustable, 90 degrees (R.H. swing cylinder)

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cyl hyds

1шт.

30

D36934

FITTING

ELBOW - adjustable, 90 degrees (L.H. swing cylinder)

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cyl hyds

1шт.

32

D41462

FITTING

RESTRICTOR - flow control, inlet & outlet hyds

2шт.

33

L10905

COUPLING

- female (Parts list Figure 56), inlet & outlet hyds

1шт.

34

L10901

TUBE,1" OD

- inlet & outlet hyds

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, inlet & outlet hyds 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, inlet & outlet hyds

1шт.

37

L10902

TUBE,1" OD

- inlet & outlet hyds

1шт.

38

L10903

HOSE ASSY.

HOSE - valve to reservoir, inlet & outlet hyds

1шт.

39

L10904

COUPLING

- male (Parts list Figure 56), inlet & outlet hyds

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cyl hyds

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cyl hyds

1шт.
