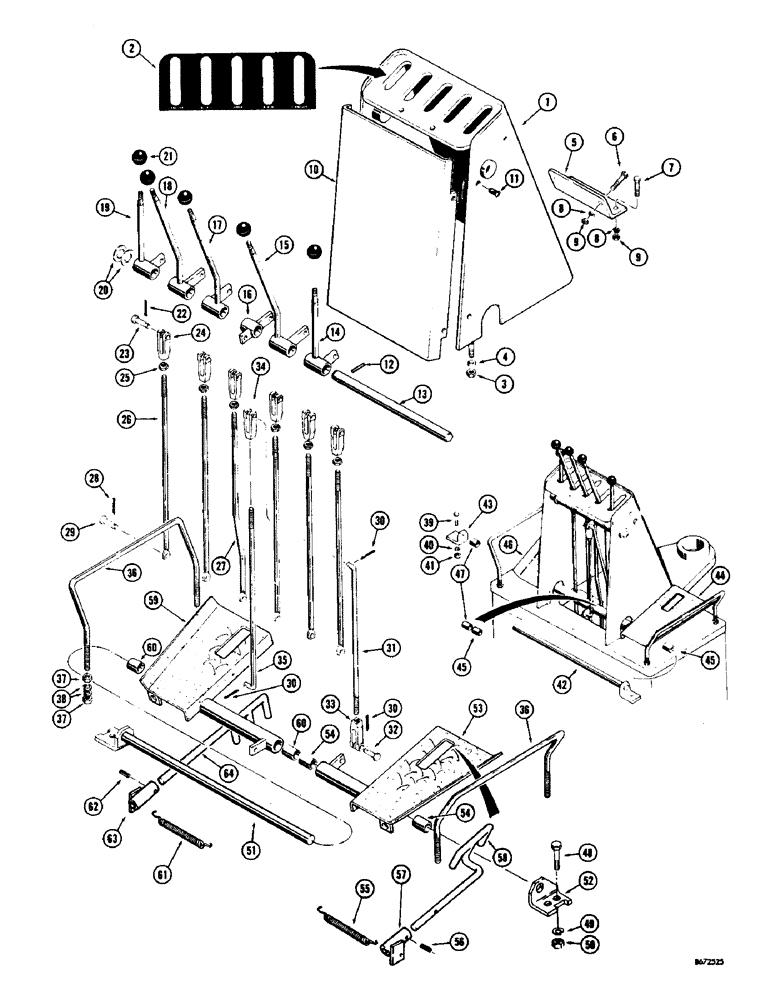

Запчасти Case 34 (18) - INDIVIDUAL LEVER BACKHOE CONTROL (FOOT SWING)

1

D38311

BOOM

CONSOLE - backhoe control

1шт.

2

321-1009

DECAL

- control console

1шт.

3

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D38292

COVER PLATE

BRACKET - console mounting

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

10

D40292

COVER - backhoe control console

1шт.

11

75-58

BOLT (MACHINE),5/16" x 1/2"

RHMS - 5/16" - 18 NC x 1/2"

4шт.

12

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

13

D30817

SHAFT

- control levers

1шт.

14

D38319

LEVER - control, R.H. stabilizer

1шт.

15

D38318

LEVER

- control, boom (Bent)

1шт.

16

D38320

LEVER

- pivot, swing

1шт.

17

D38317

LEVER

- control, dipper (Bent)

1шт.

18

D38316

LEVER

- control, bucket (Bent)

1шт.

19

D38315

X

LEVER - control, L.H. stabilizer

1шт.

20

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

21

70213

KNOB

- control lever

5шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

6шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

6шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

6шт.

26

D30821

ROD

- straight, connecting (R.H. and L.H. stabilizer, boom, bucket and swing control)

5шт.

27

D38314

ROD

- bent (Dipper control)

1шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

29

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting 5/16" x .940"

6шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

31

D21762

ROD

- "L" bend, connecting (R.H. swing control)

1шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

1шт.

33

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

34

D37600

YOKE

- connecting rod

1шт.

35

D30819

ROD

- "L" bend, connecting (L.H. swing control)

1шт.

36

D38562

GUARD - swing pedals

2шт.

37

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

38

92-8

LOCK WASHER,1/2"

8шт.

39

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Early production Hex, 3/8"-16 x 2 1/4", G5

2шт.

40

92-6

LOCK WASHER,3/8"

early production 3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), early production

2шт.

42

D37618

SHAFT - swing pedals, early production

1шт.

43

D37616

BRACKET - shaft, early production

1шт.

44

D30711

PEDAL - swing, R.H., early production

1шт.

45

D30706

BUSHING

- pedal, early production

2шт.

46

D30710

PEDAL - swing, L.H., early production

1шт.

47

D30706

BUSHING

- pedal, early production

2шт.

48

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Late production Hex, 3/8"-16 x 2 1/4", G5

3шт.

49

92-6

LOCK WASHER,3/8"

late production 3/8"

3шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), late production

3шт.

51

D40859

SHAFT

- swing pedals, late production

1шт.

52

D42062

BRACKET - shaft, late production

1шт.

53

D40866

PEDAL

- swing, R.H., late production

1шт.

54

D30706

BUSHING

- pedal, late production

2шт.

55

A37005

SPRING

- locking pedal, late production

1шт.

56

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Late production 3/16" x 1", Slotted

1шт.

57

D40856

STOP - locking pedal, R.H., late production

1шт.

58

D40864

LOCK - swing pedal, R.H., late production

1шт.

59

D40867

PEDAL

- swing, L.H., late production

1шт.

60

D30706

BUSHING

- pedal, late production

2шт.

61

A37005

SPRING

- locking pedal, late production

1шт.

62

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Late production 3/16" x 1", Slotted

1шт.

63

D40857

STOP - locking pedal, L.H., late production

1шт.

64

D40865

LOCK - swing pedal, L.H., late production

1шт.
