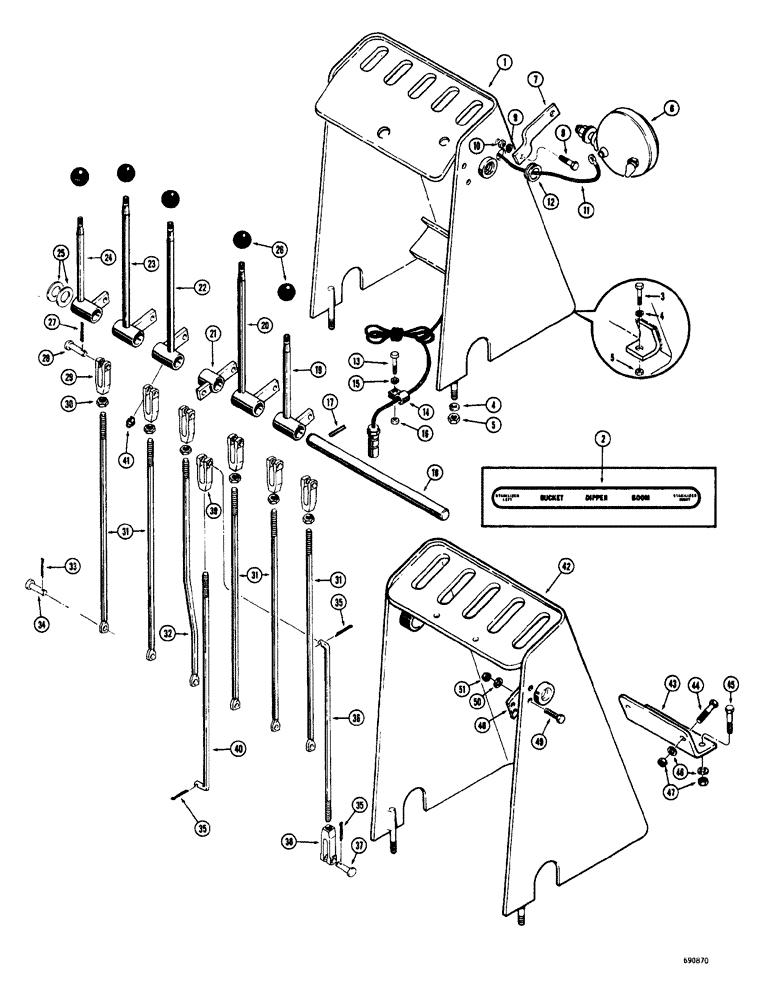

Запчасти Case 33S (028) - INDIVIDUAL LEVER BACKHOE CONTROL (FOOT SWING)

1

D30826

SPARE PART CONTROL backhoe, see Figure 035 for swing down seat arrangement, used on models without foot locks or shields

1шт.

2

D30664

DECAL

CONSOLE control

1шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

4шт.

6

A20965

LAMP BASE

LIGHT flood and tail, parts list page 35

1шт.

7

D30662

LINK

BRACKET light mounting

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

9

92-8

LOCK WASHER,1/2"

1шт.

10

25-108

NUT,1/2"-13, G5

Hex

2шт.

11

D49285

SPARE PART LIGHT

1шт.

12

49561

GROMMET,1/4" ID x 7/16" Groove Dia

WIRE

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp to stationary frame

1шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Clamp to shift frame

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

WIRE

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

2шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

1шт.

18

D30817

SHAFT

LEVERS control

1шт.

19

D48248

LEVER

LEVER control, R.H., stabilizer, 3/8" - 24 NF threaded end

1шт.

19

D49984

HANDLE

LEVER control, R.H., stabilizer, 1/2" - 20 NF threaded end

1шт.

20

D48109

LEVER

CONTROL boom, 3/8" - 24 NF threaded end

1шт.

20

D49994

HANDLE

LEVER control, boom, 1/2" - 20 NF threaded end

1шт.

21

D48252

ANCHOR

LEVER pivot, swing

1шт.

22

D48246

LEVER

CONTROL dipper, 3/8" - 24 NF threaded end

1шт.

22

D49995

HANDLE

CONTROL dipper, 1/2" - 20 NF threaded end

1шт.

23

D48108

LEVER

CONTROL bucket, 3/8" - 24 NF threaded end

1шт.

23

D49993

HANDLE

LEVER control, bucket, 1/2" - 20 NF threaded end

1шт.

24

D48247

LEVER

CONTROL, L.H., stabilizer, 3/8" - 24 NF threaded end

1шт.

24

D49983

HANDLE

LEVER control, L.H., stabilizer, 1/2" - 20 NF threaded end

1шт.

25

195-2097

WASHER,15/16" x 1 3/4" x .083"

FLAT steel, 15/16"

1шт.

26

70213

KNOB

LEVER control, used with 3/8" - 24 NF threaded levers

5шт.

26

D49996

KNOB

LEVER control lever, used with 1/2" - 20 NF threaded levers

5шт.

27

132-25

COTTER PIN,3/32" x 5/8"

6шт.

28

141-4

CLEVIS PIN,3/8" x 1.060"

Mounting yoke

6шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE connecting rod

6шт.

30

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX 3/8" - 24 NF

6шт.

31

D35531

ROD

STRAIGHT connecting, R.H. and L.H. stabilizer, boom, bucket and swing control

5шт.

32

D35530

SPARE PART BENT dipper control

1шт.

33

132-25

COTTER PIN,3/32" x 5/8"

6шт.

34

141-3

CLEVIS PIN,5/16" x .940"

Mounting yoke

6шт.

35

132-25

COTTER PIN,3/32" x 5/8"

3шт.

36

D21762

ROD

ROD, "L" bend, connecting, R.H. swing control

1шт.

37

141-4

CLEVIS PIN,3/8" x 1.060"

Mounting yoke

1шт.

38

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE connecting rod

1шт.

39

D37600

YOKE

UNIVERSAL JOINT YOKE YOKE connecting rod

1шт.

40

D30819

ROD

"L" bend, connecting, L.H. swing control

1шт.

41

219-15

LUBE NIPPLE,5/16" NPTF

GREASE straight, 5/16" drive type, used with 3/8" - 24 NF threaded levers

6шт.

41

219-103

FITTING

SPARE PART GREASE straight, 1/8" NPT, use with 1/2" - 20 NF threaded levers

6шт.

42

D38311

BOOM

CONSOLE backhoe, used on models with foot lock or shield

1шт.

43

D38292

COVER PLATE

PLATE control tower mounting, D38311 tower only

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

45

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

46

92-6

LOCK WASHER,3/8"

6шт.

47

25-106

NUT,3/8"-16, G5

HEX 3/8" - 16 NC

6шт.

48

D44341

STRAP

PLATE diversion valve mounting, D38311 console only

1шт.

49

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

50

92-4

LOCK WASHER,1/4"

2шт.

51

25-104

NUT,1/4"-20, G5

2шт.
