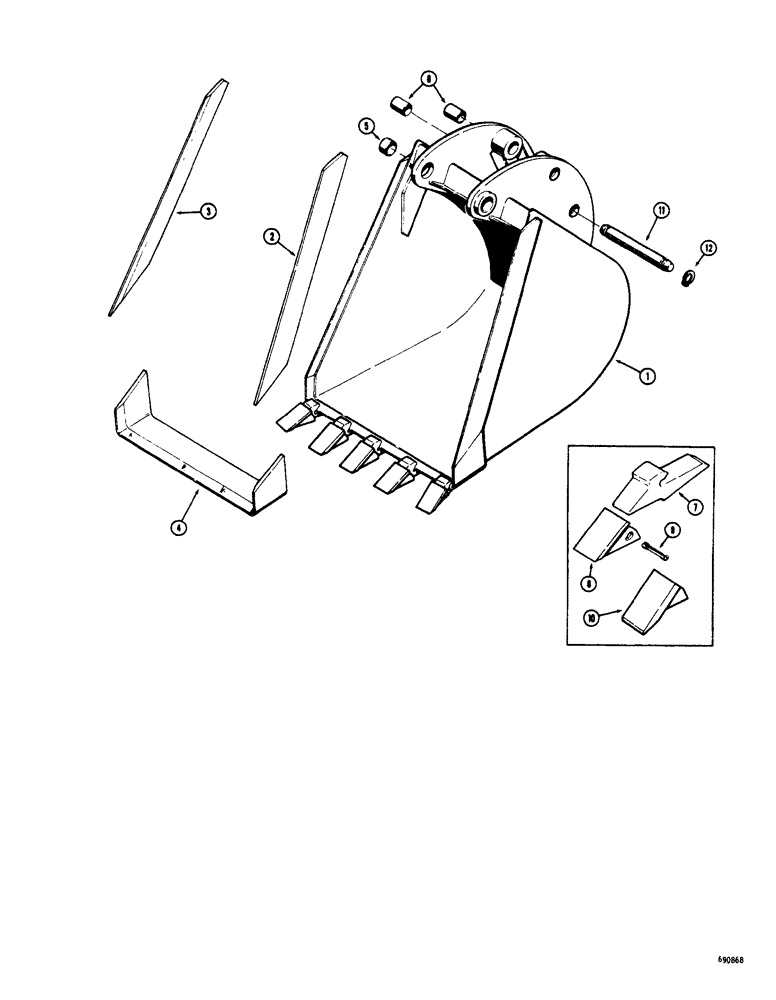

Запчасти Case 33S (026) - BACKHOE BUCKETS (OPTIONAL TYPES)

1

D45135

BUCKET backhoe, trenching, 24 inch, heavy duty, machinery item

1шт.

2

D45137

EDGE

BLADE cutting, R.H. side, trenching buckets, heavy duty, machinery item

1шт.

3

D45136

EDGE

BLADE cutting, L.H. side, trenching buckets, heavy duty, machinery item

1шт.

4

D45142

EDGE

BLADE cutting, center, trenching buckets, heavy duty, machinery item

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, heavy duty, machinery item

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

LINK at bucket, trenching, heavy duty, machinery item

4шт.

1

D45263

BUCKET backhoe, trenching, 30 inch, heavy duty, machinery item

1шт.

2

D45137

EDGE

BLADE cutting, R.H. side, trenching buckets, heavy duty, machinery item

1шт.

4

D45258

EDGE

BLADE cutting, center, trenching buckets, heavy duty, machinery item

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, heavy duty, machinery item

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

LINK at bucket, trenching, heavy duty, machinery item

4шт.

1

D49240

BUCKET backhoe, trenching, 36 inch, heavy duty, machinery item

1шт.

2

D45137

EDGE

BLADE cutting, R.H. side, trenching buckets, heavy duty, machinery item

1шт.

3

D45136

EDGE

BLADE cutting, L.H. side, trenching buckets, heavy duty, machinery item

1шт.

4

D49238

EDGE

BLADE cutting, center, trenching buckets, heavy duty, machinery item

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, heavy duty, machinery item

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

LINK at bucket, trenching, heavy duty, machinery item

4шт.

D48035

TOOTH

ASSEMBLY heavy duty bucket only

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth assembly

1шт.

8

D39093

TOOTH

POINT tooth assembly

1шт.

9

D39094

BUCKET TOOTH KEY

POINT flex pin, tooth assembly

1шт.

10

D44193

TOOTH

POINT assembly, heavy duty

1шт.

D41679

KIT

PIN bucket

1шт.

11

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

LINK bucket to bucket, D41679 kit

1шт.

12

D25279

SNAP RING,M35, Int

D41679 pin kit

2шт.
