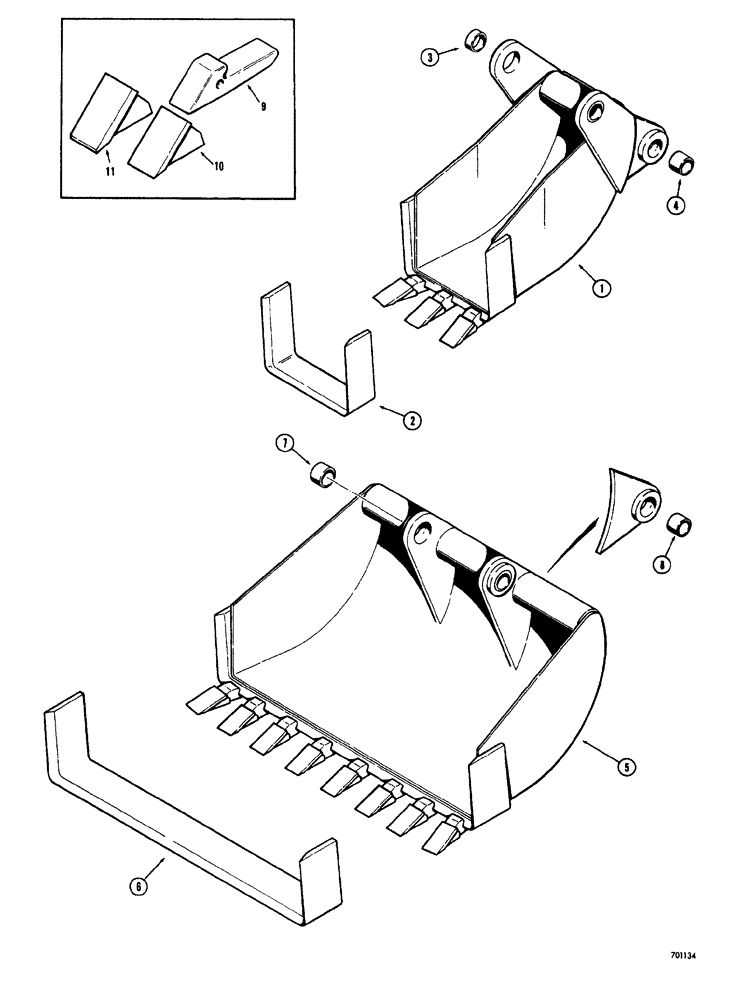

Запчасти Case 33S (024) - BACKHOE BUCKETS (OPTIONAL TYPES)

1

D41547

BUCKET

SPARE PART BACKHOE bellhole, 12 inch

1шт.

2

D37490

KNIFE

BLADE cutting

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUCKET at dipper arm

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET link pin hole

2шт.

1

D41548

BUCKET

SPARE PART BACKHOE bellhole, 16 inch

1шт.

2

D37518

EDGE, CUTTING

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET link pin hole

2шт.

1

D41549

BUCKET

SPARE PART BACKHOE bellhole, 30 inch

1шт.

2

D37515

EDGE

BLADE cutting

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET link pin hole

2шт.

5

D41550

BUCKET

BACKHOE combination bellhole and graveyard, 36 inch

1шт.

6

NLS

NO LONGER SERVICED

BLADEcutting

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET link pin hole

2шт.

9

D26368

SUPPORT

SHANK tooth

1шт.

10

D27748

TOOTH

POINT standard

1шт.

11

D36720

TOOTH

POINT service option, heavy duty

1шт.
