(020) - BACKHOE BUCKETS (OPTIONAL TYPES)

Запчасти Case 33S (020) - BACKHOE BUCKETS (OPTIONAL TYPES)

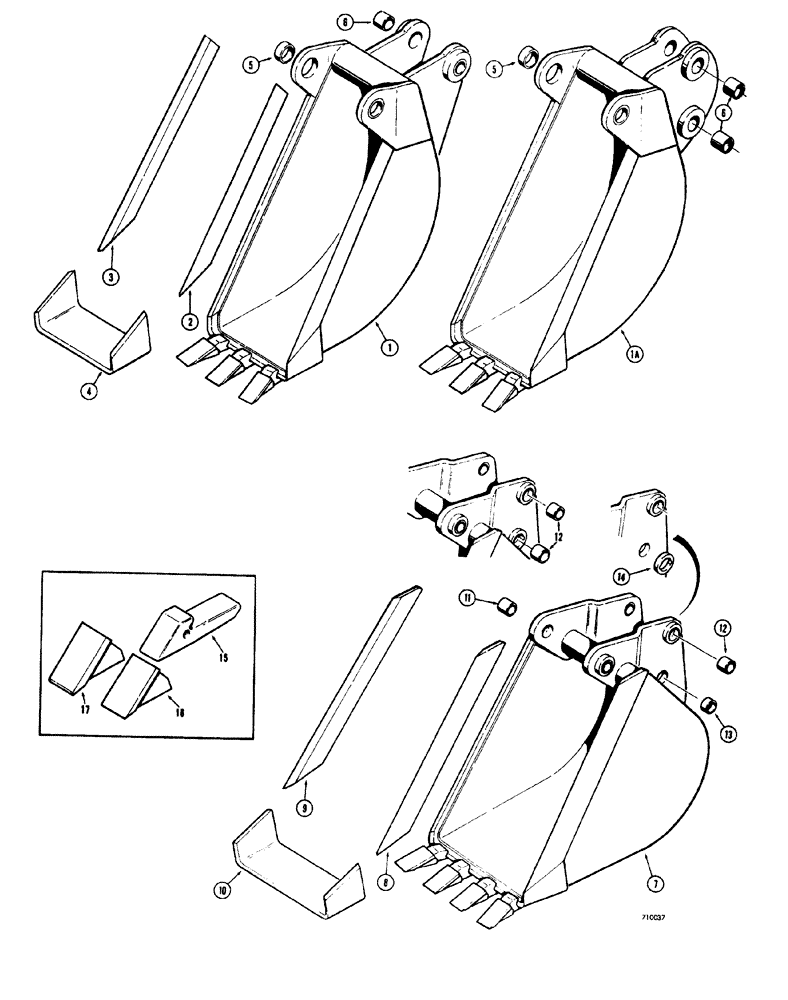

Схема запчастей Case 33S - (020) - BACKHOE BUCKETS (OPTIONAL TYPES)
9
17
14
2
1
6
6
5
18
11
15
13
12
4
3
5
7
1a
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D37472

BUCKET backhoe, trenching, 12 inch, one hole position for bucket link pin, optional types

1шт.

1a

D52642

BUCKET

BACKHOE trenching, 12 inch, two hole positions for bucket link pin, optional types

1шт.

2

D29424

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, optional types

1шт.

3

D29423

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, optional types

1шт.

4

D37464

EDGE, CUTTING

BLADE center, trenching buckets, optional types

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUCKET at dipper arm, trenching, optional types

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET link pin hole, (2) used with D37472 bucket, (4) used with D52642 bucket, trenching,optional types

2-4шт.

7

D37473

BUCKET

SPARE PART BACKHOE trenching, 18 inch, optional types

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, optional types

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, optional types

1шт.

10

D37642

EDGE, CUTTING

BLADE center, trenching buckets, optional types

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching buckets, optional types

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower, link pin hole, used in lower hole only if bucket lug has boss, trenching, optional types

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower, link pin hole, used if bucket lug does not have boss, trenching, optional types

2шт.

7

D37474

BUCKET

SPARE PART BACKHOE trenching, 24 inch, optional types

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, optional types

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, optional types

1шт.

10

D37507

EDGE

BLADE cutting, center, trenching buckets, optional types

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, optional types

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower, link pin hole, used in lower hole only if bucket lug has boss, trenching, optional types

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower, link pin hole, used if bucket lug does not have boss, trenching, optional types

2шт.

7

D37475

BUCKET

SPARE PART BACKHOE trenching, 30 inch, optional types

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, optional types

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, optional types

1шт.

10

D37505

EDGE, CUTTING

BLADE center, trenching buckets, optional types

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, optional types

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKET upper and lower, link pin hole, used in lower hole only if bucket lug has boss, trenching, optional types

4-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower, link pin hole, used if bucket lug does not have boss, trenching, optional types

1шт.

7

D37476

BUCKET

BACKHOE trenching, 36 inch, optional types

1шт.

8

D21606

EDGE, CUTTING

BLADE, R.H. side, trenching buckets, optional types

1шт.

9

D21605

EDGE, CUTTING

BLADE, L.H. side, trenching buckets, optional types

1шт.

10

D37471

EDGE, CUTTING

BLADE center, trenching buckets, optional types

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUCKET at dipper arm, trenching, optional types

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUCKETupper and lower, link pin hole, used in lower hole only if bucket lug has boss, trenching, optional types

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUCKET lower, link pin hole, used if bucket lug does not have boss, trenching, optional types

2шт.

14

D50763

KIT

BOSS trenching bucket, includes (2) D50760 bosses and instructions sheet, optional types

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.

15

D26368

SUPPORT

TOOTH shank, bucket teeth, standard

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.

16

D27748

TOOTH

POINT bucket teeth, standard

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.

17

D36720

TOOTH

POINT bucket teeth, service option, heavy duty

1шт.

Boss Kit for D37473, D37474, D37475 and D37476 trenching buckets not originally equipped with bosses.

1шт.
