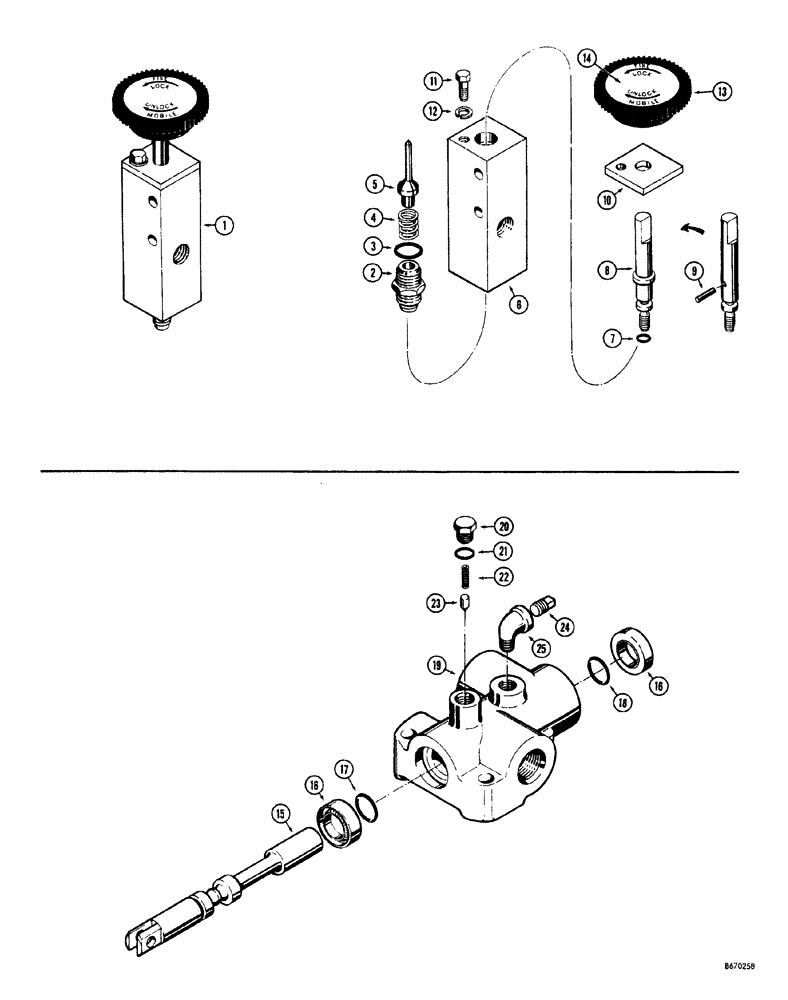

Запчасти Case 33S (094) - D36662 BACKHOE LOCKING VALVE AND A19957 DIVERTER VALVE

1

D36662

PISTON

VALVE cylinder locking, 33S backhoe only

1шт.

2

218-5079

HYD CONNECTOR,1/2" - 20 Male JIC x 9/16" - 18 Male ORB

MALE straight, locking valve

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal, Locking valve

1шт.

4

D36669

SPRING

POPPET locking valve

1шт.

5

D36668

X

POPPET valve, locking

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING valve, locking

1шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

SEAL shaft, locking valve

1шт.

8

D41746

SHAFT

VALVE control, locking

1шт.

9

138-38

LOCK PIN,3/32" x 9/16", Slotted

If used, locking valve

1шт.

10

D36665

RETAINER

SPARE PART PLATE shaft, locking valve

1шт.

11

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Locking valve

1шт.

12

92-4

LOCK WASHER,1/4"

Valve

1шт.

13

D36667

KNOB

VALVE locking

1шт.

14

321-907

DECAL

LOCKING valve

1шт.

A19957

VALVE

DIVERTER

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL valve, diverter

1шт.

A19958

SEAL KIT

KIT seal, repair, diverter valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL spool, diverter valve

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL spool, diverter valve

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL housing, diverter valve

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING valve, diverter valve

1шт.

20

76349

PLUG,9/16" - 18 ORB

Housing, Diverter valve

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Seal, Plug, diverter valve

1шт.

22

A7032

SPRING

VALVE plunger, diverter

1шт.

23

A19166

SPARE PART VALVE detent, diverter

1шт.

24

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PIPE square head, 1/4" NPT, diverter valve

1шт.

25

221-412

ELBOW,90 Degree, 1/4"-27, NPT

ELBOW street, 90°, 1/4" NPT, diverter valve

1шт.
