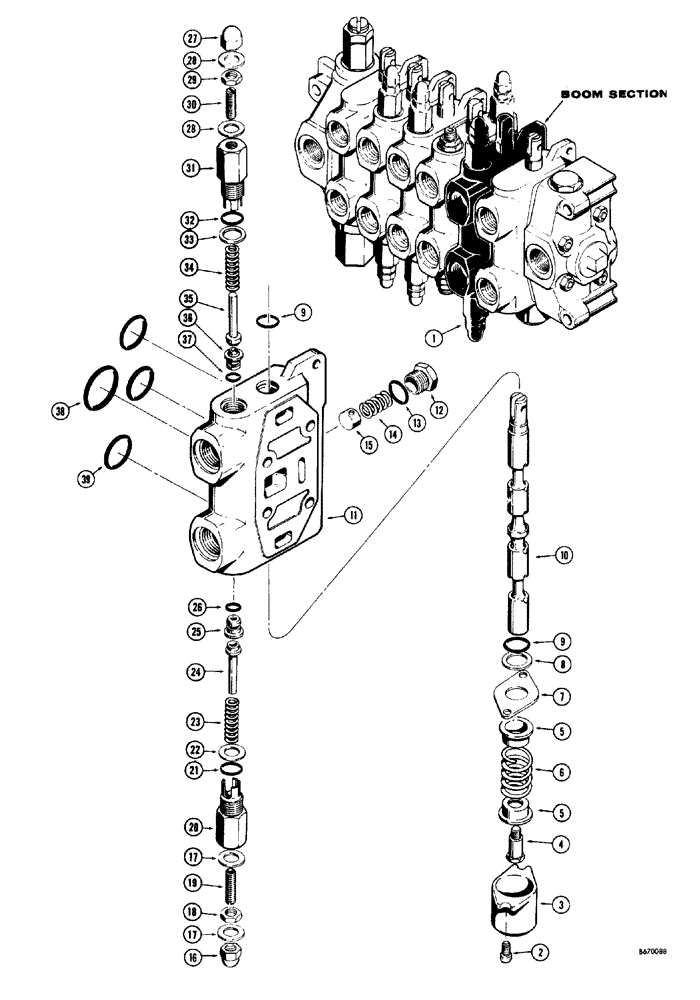

Запчасти Case 33S (092) - D40748 BACKHOE BOOM SECTION
№
Артикул
Название
Примечание
Количество
1
D40748
SECTOR
SECTION boom, backhoe control valve
1шт.
2
71-412
SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"
FHMS 1/4" - 20 NC x 3 4"
2шт.
3
D26823
CAP
BOOM section
1шт.
4
D26833
BOLT
STRIPPER special
1шт.
5
D26831
GUIDE
SPRING
2шт.
6
D40201
SPRING
CENTERING
1шт.
7
D26830
PLATE
RETAINING
1шт.
8
D26829
RING
BACKUP
1шт.
9
D36830
RING
SEAL quad
2шт.
10
NSS
NOT SOLD SEPARAT
SPOOL boom section
1шт.
11
NSS
NOT SOLD SEPARAT
HOUSING boom section
1шт.
12
D30696
CYLINDER END CAP
VALVE check
1шт.
13
G46847
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
SPARE PART SEAL
1шт.
14
D26826
COMPRESSION SPRING
VALVE check
1шт.
15
D26824
SPOOL
POPPET check valve
1шт.
D38606
VALVE
CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve , when stock is exhausted, order D42866 secondary relief cartridge for service
1шт.
D42866
VALVE
CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve
1шт.
16
129-526
CROWN NUT,Low, 3/8" - 24
ACORN 3/8" - 24 NF
1шт.
17
23150
WASHER
GASKET copper
2шт.
18
25-156
JAM NUT,Jam, 3/8"-24, G5
HEX jam, 3/8" - 24 NF
1шт.
19
D38814
ADJUSTMENT SCREW,3/8" - 24
SET special
1шт.
20
NSS
NOT SOLD SEPARAT
BODY cartridge
1шт.
21
D26872
O-RING
SEAL 1/2" I.D. x 5/8" O.D.
1шт.
22
D31450
WASHER
GASKET
1шт.
D42865
VALVE POPPET
KIT seat and poppet
1шт.
23
NSS
NOT SOLD SEPARAT
SPRING relief valve
1шт.
24
NSS
NOT SOLD SEPARAT
POPPET relief valve
1шт.
25
NSS
NOT SOLD SEPARAT
SEAT relief valve
1шт.
26
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
Seal (1/4" ID x 3/8" OD)
1шт.
D39454
CARTRIDGE
SECONDARY relief, upper, not preset, must be set to correct pressure when installed on valve, when stock is exhausted, order D42866 secondary relief cartridge for service
1шт.
27
129-526
CROWN NUT,Low, 3/8" - 24
ACORN 3/8" - 24 NF
1шт.
28
23150
WASHER
GASKETcopper
2шт.
29
25-156
JAM NUT,Jam, 3/8"-24, G5
HEX jam, 3/8" - 24 NF
1шт.
30
D38814
ADJUSTMENT SCREW,3/8" - 24
SET special
1шт.
31
NSS
NOT SOLD SEPARAT
BODY cartridge
1шт.
32
D26872
O-RING
SEAL 1/2" I.D. x 5/8" O.D.
1шт.
33
D31450
WASHER
GASKET
1шт.
34
NSS
NOT SOLD SEPARAT
SPRING relief valve
1шт.
D40189
PACKAGE
KIT seat and poppet
1шт.
35
NSS
NOT SOLD SEPARAT
POPPET relief valve
1шт.
36
NSS
NOT SOLD SEPARAT
SEAT relief valve
1шт.
37
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
Seal (1/4" ID x 3/8" OD)
1шт.
38
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL 1-9/16" I.D. x 1-3/4" O.D.
1шт.
39
D26819
O-RING,1.299" ID x 1.505" OD
SEAL 1-5/16" I.D. x 1-1/2" O.D.
3шт.
Выбрано товаров: 44
