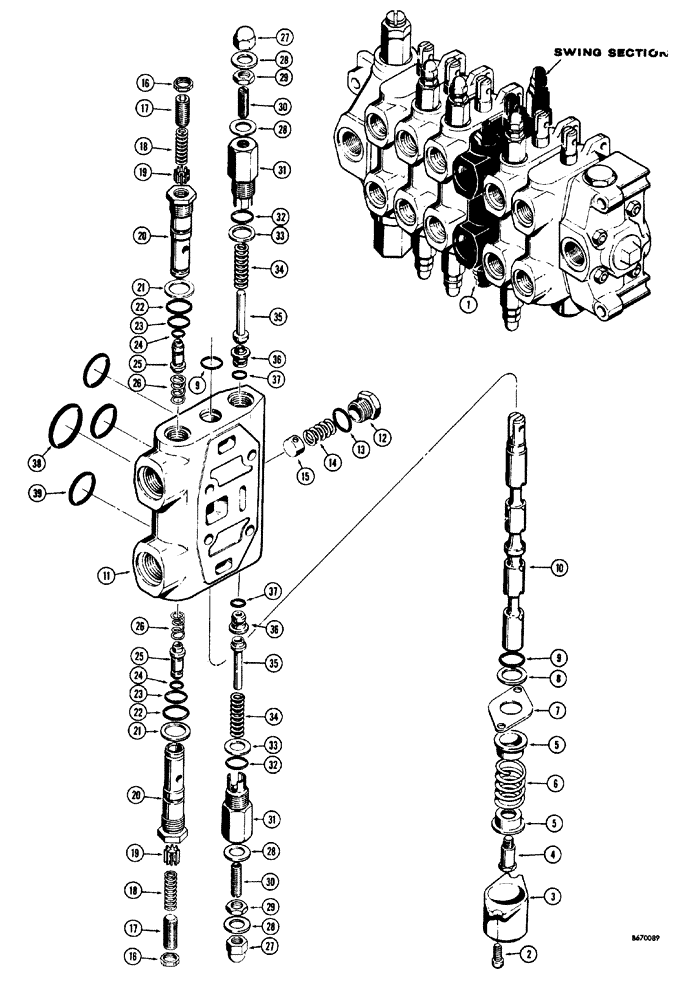

Запчасти Case 33S (090) - D40749 BACKHOE SWING SECTION

1

D40749

SECTOR

SECTION swing, backhoe control valve

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS 1/4" - 20 NC x 3/4"

2шт.

3

D26823

CAP

SECTION swing

1шт.

4

D26833

BOLT

STRIPPER special

1шт.

5

D26831

GUIDE

SPRING

2шт.

6

D40201

SPRING

CENTERING

1шт.

7

D26830

PLATE

RETAINING

1шт.

8

D26829

RING

BACKUP

1шт.

9

D36830

RING

SEAL quad

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING swing section

1шт.

12

D30696

CYLINDER END CAP

VALVE check

1шт.

13

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SPARE PART SEAL

1шт.

14

D26826

COMPRESSION SPRING

VALVE check

1шт.

15

D26824

SPOOL

POPPET check valve

1шт.

D26838

FILTER

ASSEMBLY catridge relief, cross over, color code -brown, 1300 P.S.I. preset at factory

2шт.

16

D26879

LOCK NUT

SPECIAL

1шт.

17

D26878

X

SCREW adjusting

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING cartridge

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT floating

1шт.

20

NSS

NOT SOLD SEPARAT

BODY cartridge

1шт.

21

D26870

GASKET

WASHER

1шт.

22

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL 9/16" I.D. x 11/16" O.D.

1шт.

23

D31412

O-RING

SEAL 7/16" I.D. x 9/16" O.D.

1шт.

24

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal (1/4" ID x 3/8" OD)

1шт.

25

NSS

NOT SOLD SEPARAT

POPPETcartridge

1шт.

26

D26875

SPRING

POPPET when stock is exhausted, order D43418 spring for service

1шт.

D43418

VALVE SPRING

POPPET

1шт.

D38606

VALVE

CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve, when stock is exhausted, order D42866 secondary relief cartridge for service

2шт.

D42866

VALVE

CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve

2шт.

27

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8", 24 NF

1шт.

28

23150

WASHER

GASKET copper

2шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX jam, 3/8", 24 NF

1шт.

30

D38814

ADJUSTMENT SCREW,3/8" - 24

SET special

1шт.

31

NSS

NOT SOLD SEPARAT

BODY cartridge

1шт.

32

D26872

O-RING

SEAL 1/2" I.D. x 5/8" O.D.

1шт.

33

D31450

WASHER

GASKET

1шт.

D42865

VALVE POPPET

KIT seat and poppet

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal (1/4" ID x 3/8" OD)

1шт.

38

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL 1-9/16" I.D. x 1-3/4" O.D.

1шт.

39

D26819

O-RING,1.299" ID x 1.505" OD

SEAL 1-5/16" I.D. x 1-1/2" O.D.

3шт.
