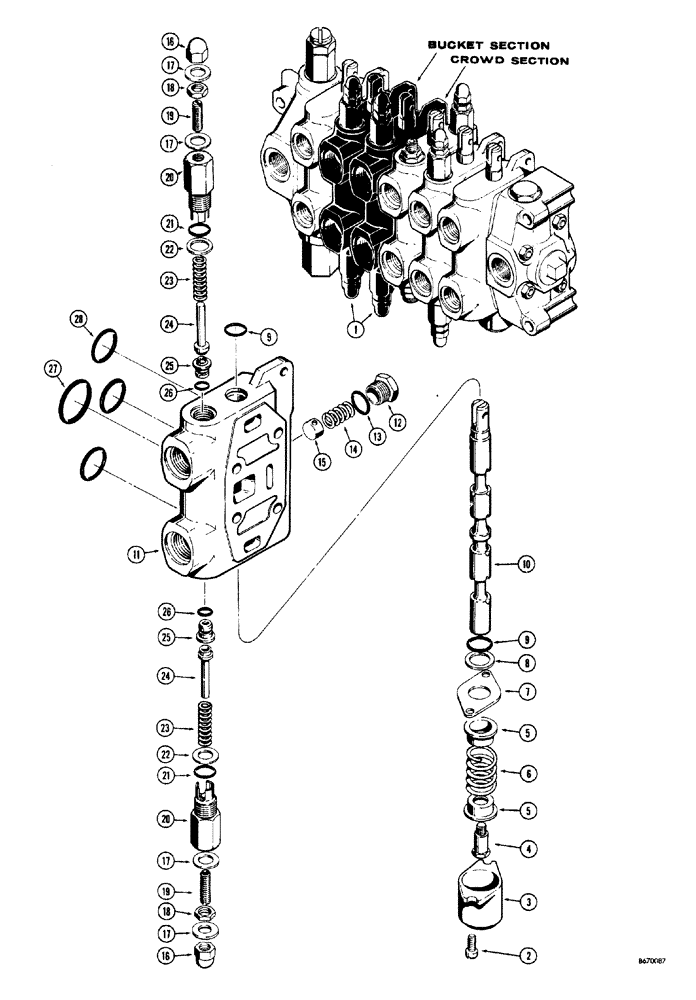

Запчасти Case 33S (088) - D40750 BACKHOE BUCKET AND CROWD SECTION

1

D40750

SECTOR

SECTION bucket and crwd, backhoe control valve

2шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS 1/4" - 20 NC x 3/4"

2шт.

3

D26823

CAP

SECTION bucket and crowd

1шт.

4

D26833

BOLT

STRIPPER special

1шт.

5

D26831

GUIDE

SPRING

2шт.

6

D40201

SPRING

CENTERING

1шт.

7

D26830

PLATE

RETAINING

1шт.

8

D26829

RING

BACKUP

1шт.

9

D36830

RING

SEAL quad

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL bucket and crowd section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING bucket and crowd section

1шт.

12

D30696

CYLINDER END CAP

VALVE check

1шт.

13

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SPARE PART SEAL

1шт.

14

D26826

COMPRESSION SPRING

VALVE check

1шт.

15

D26824

SPOOL

POPPET check valve

1шт.

D38606

VALVE

CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve, when stock is exhausted, order D42866 secondary relief

2шт.

D42866

VALVE

CARTRIDGE secondary relief, not preset, must be set to correct pressure when installed on valve

2шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF

1шт.

17

23150

WASHER

GASKET copper

2шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX jam, 3/8" - 24 NF

1шт.

19

D38814

ADJUSTMENT SCREW,3/8" - 24

SET special

1шт.

20

NSS

NOT SOLD SEPARAT

BODY cartridge

1шт.

21

D26872

O-RING

SEAL 1/2" I.D. x 5/8" O.D.

1шт.

22

D31450

WASHER

GASKET

1шт.

D42865

VALVE POPPET

KIT seat

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

26

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal (1/4" ID x 3/8" OD)

1шт.

27

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL 1-9/16" I.D. x 1-3/4" O.D.

1шт.

28

D26819

O-RING,1.299" ID x 1.505" OD

SEAL 1-5/16" I.D. x 1-1/2" O.D.

3шт.
