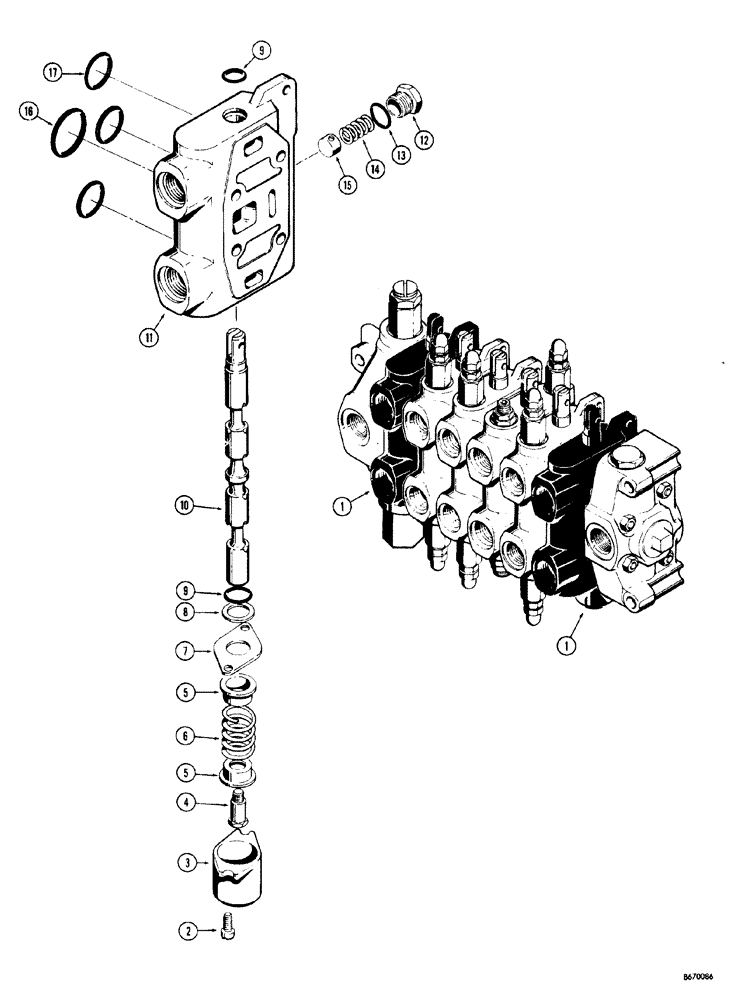

Запчасти Case 33S (086) - D26842 BACKHOE STABILIZER SECTION

1

D26842

ELEMENT

SECTION stabilizer, backhoe control valve

2шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS 1/4" - 20 NC x 3/ 4"

2шт.

3

D26823

CAP

SECTION stabilizer

1шт.

4

D26833

BOLT

STRIPPER special

1шт.

5

D26831

GUIDE

SPRING

2шт.

6

D40201

SPRING

CENTERING

1шт.

7

D26830

PLATE

RETAINING

1шт.

8

D26829

RING

BACKUP

1шт.

9

D36830

RING

SEAL quad

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL stabilizer section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING stabilizer section

1шт.

12

30696

BOLT

CAP check valve

1шт.

13

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SPARE PART SEAL

1шт.

14

D26826

COMPRESSION SPRING

VALVE check

1шт.

15

D26824

SPOOL

POPPET check valve

1шт.

16

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL 1-9/16" I.D. x 1-3/4" O.D.

1шт.

17

D26819

O-RING,1.299" ID x 1.505" OD

SEAL 1-5/16" I.D. x 1-1/2" O.D.

3шт.
