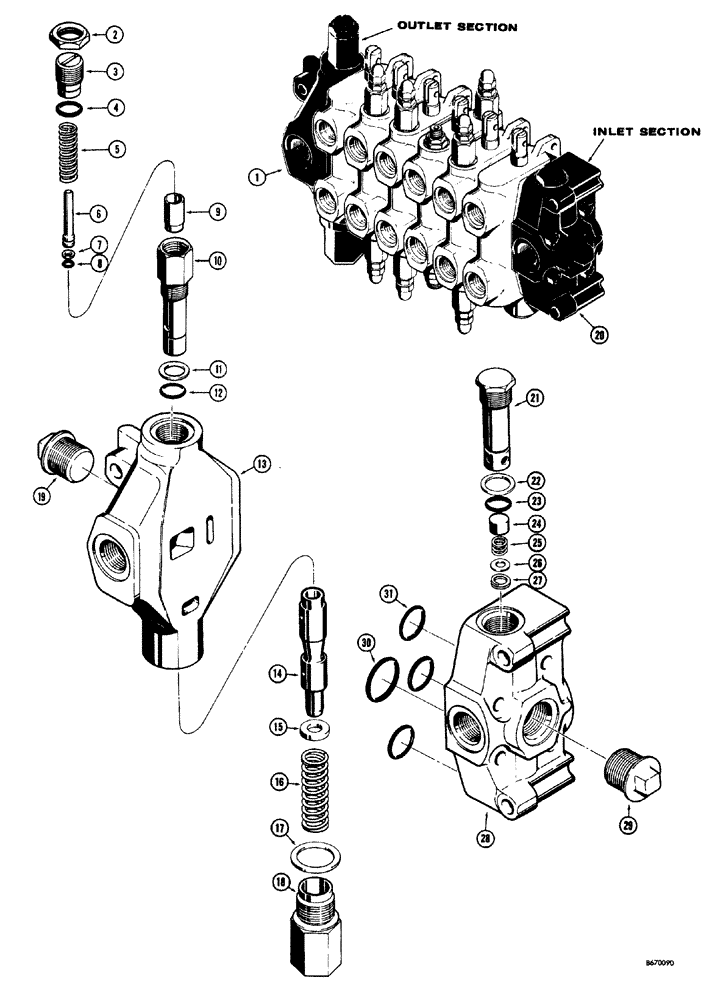

Запчасти Case 33S (084) - D40764 BACKHOE OUTLET SECTION AND D37349 INLET SECTION
№
Артикул
Название
Примечание
Количество
1
D40764
SECTION outlet, backhoe control valve
1шт.
D31989
CARTRIDGE
RELIEF outlet section
1шт.
2
D26850
NUT
LOCK adjusting screw, outlet section
1шт.
3
D26849
SPARE PART ADJUSTING spring, outlet section
1шт.
4
D31410
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
SEAL outlet section
1шт.
5
D32578
SPARE PART COMPRESSION outlet section
1шт.
6
D26852
SPARE PART DISPLACEMENT outlet section
1шт.
7
D26853
BACK-UP RING
BACKUP outlet section
1шт.
8
A11026
GASKET
SEAL outlet section
1шт.
9
D31990
SEAT
FLOATING outlet section
1шт.
D32196
KIT
ASSEMBLY shell, cartridge, outlet section
1шт.
10
NSS
NOT SOLD SEPARAT
SHELL cartridge, outlet section
1шт.
11
D30681
GASKET
WASHER outlet section
1шт.
12
D31410
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
SEAL outlet section
1шт.
13
NSS
NOT SOLD SEPARAT
HOUSING outlet section
1шт.
14
D36599
SPARE PART REGENERATION outlet section
1шт.
15
D36807
SPACER
SPARE PART SPOOL outlet section
1шт.
16
D40815
VALVE SPRING
SPARE PART SPOOL outlet section
1шт.
17
D36808
GASKET
CAP outlet section
1шт.
18
D36805
SPARE PART SECTION outlet
1шт.
19
221-14
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG pipe, square head, 1/2" NPT, outlet section
1шт.
20
D37349
KNIFE SECTION
SECTION, KNIFE SECTION inlet, backhoe control valve
1шт.
D31416
LOCK VALVE
ASSEMBLY check, inlet section
1шт.
21
D31417
CARTRIDGE
VALVE check, inlet section
1шт.
22
D30681
GASKET
CARTRIDGE inlet section
1шт.
23
D31410
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
SEAL inlet section
1шт.
24
D31418
VALVE POPPET
CHECK inlet section
1шт.
25
D31419
SPRING
VALVE check, inlet section
1шт.
26
D31420
RING
RETAINER spring, inlet section
1шт.
27
D26858
RING, SNAP
RING SNAP SPIROLOX inlet section
1шт.
28
NSS
NOT SOLD SEPARAT
HOUSING inlet section
1шт.
29
221-14
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG pipe, square head,1/2" NPT, inlet section
1шт.
30
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL 1-9/16" I.D. x 1-3/4" O.D., inlet section
1шт.
31
D26819
O-RING,1.299" ID x 1.505" OD
SEAL 1-5/16" I.D. x 1-1/2" O.D., inlet section
3шт.
Выбрано товаров: 34
