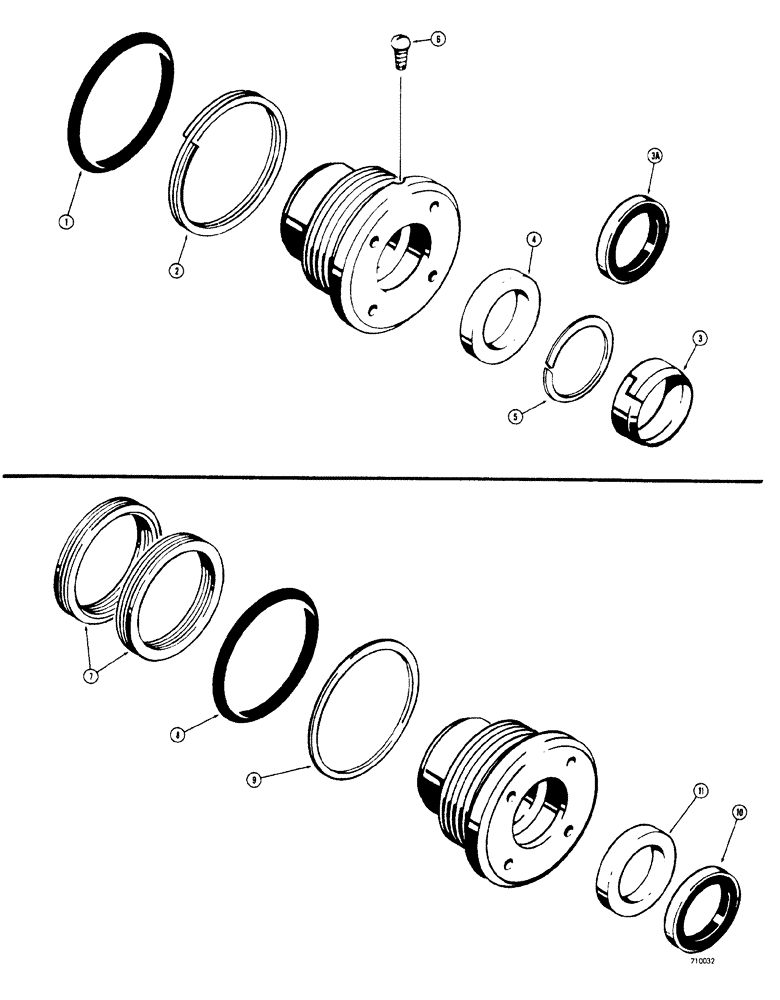

Запчасти Case 33S (080) - CYLINDER PACKING KITS (USED IN BOOM CYLINDERS) WITH 4-1/2" I.D. TUBE AND 2-1/4" DIA. ROD ONLY

D42878

GLAND

KIT packing

1шт.

1

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland, D42878 packing kit

1шт.

2

D38932

BACK-UP RING

SEAL gland, early production leather type, JD42878 packing kit

1шт.

2

D42452

RING

BACKUP gland seal, late production synthetic spiral type, D42878 gland packing kit

1шт.

3

D39360

WIPER

ROD outer, step type, if used, D42878 gland packing kit

1шт.

3a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

ROD outer, U-type, if used, D42878 gland packing kit

1шт.

4

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL rod, D42878 gland packing kit

1шт.

5

D39539

RING

BACKUP rod seal, D42878 gland packing kit

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D42878 gland packing kit

1шт.

G32285

SEAL

KIT cylinder packing

1шт.

7

D47205

PACKING

PISTON chevron, G32285 cylinder packing kit

2шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland, G32285 cylinder packing kit

1шт.

9

G32284

BACK-UP RING

BACKUP gland seal, cylinder packing kit

1шт.

10

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

ROD outer, G32285 cylinder packing kit

1шт.

11

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL rod, G32285 cylinder packing kit

1шт.
