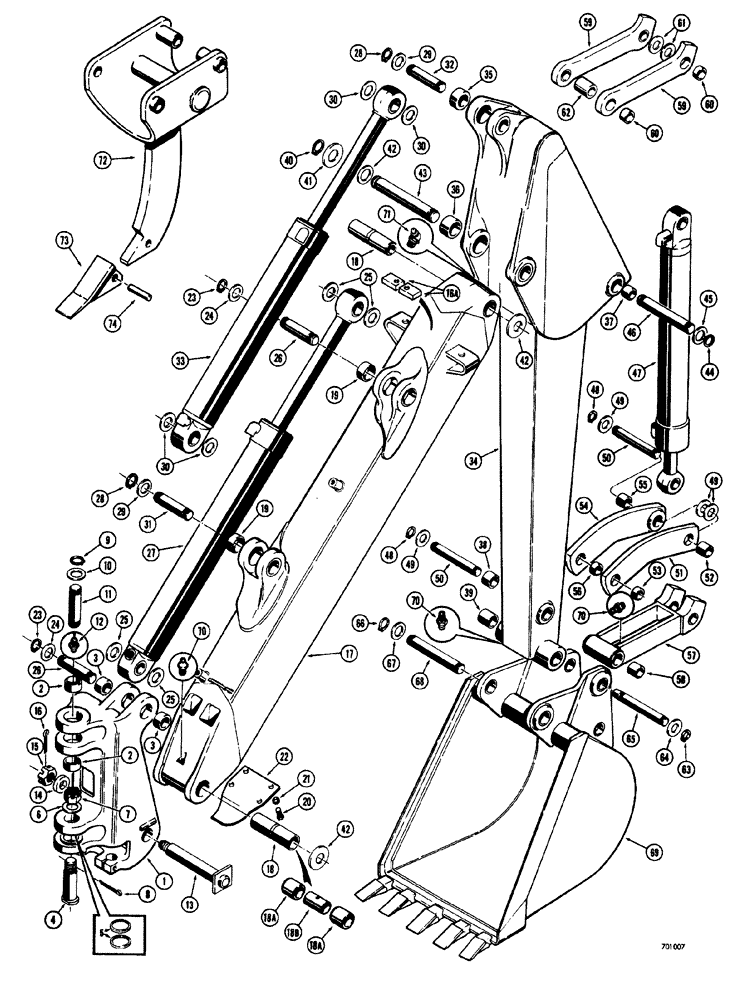

Запчасти Case 33S (010) - TOWER, BOOM, DIPPER ARM AND BUCKET, BOOM & DIPPER BUCKET WITH CAST TYPE CYLINDER ANCHORS

1

D37423

LEVER

TOWER backhoe swing

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

TOWER at mounting frame

2шт.

3

D38478

BUSHING

TOWER at boom cylinder

2шт.

3

D38478

BUSHING

TOWER at boom cylinder

2шт.

4

D37451

PIN

MOUNTING bolt, swing tower

1шт.

5

D26991

BEARING

BEARING spacer

2шт.

6

D36478

WASHER

SPECIAL

1шт.

7

25-1324

SLOTTED NUT,1 1/2"-12, G5

HEX slotted, 1-1/2" - 12 NF

1шт.

8

132-154

COTTER PIN,1/4" x 2"

1шт.

9

D26919

SNAP RING,#200, Ext

Pin

2шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

FLAT steel, 2-1/16"

1шт.

11

D33637

PIN

TOWER to mounting frame

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

D32337

PIN

PIVOT, Serial Range: tower-boom

1шт.

14

D32338

WASHER

PIN

1шт.

15

129-297

NUT

SPARE PART HEX slotted, 1-1/4" - 7 NC

1шт.

16

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

1шт.

16

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

1шт.

16a

D41161

BLOCK tapped

1шт.

Used on boom before Backhoe S/N 4141636.

1шт.

17

D37414

SPARE PART BOOM backhoe hose routed through boom casting

1шт.

When replacing boom before Backhoe S/N 4141636, order 2 - D41161 tapped blocks.

1шт.

17

D44362

BOOM

1шт.

Used on Backhoe S/N 4141636 and after

1шт.

18

D40466

BUSHING

at swing tower and dipper arm

2шт.

When stock is exhausted, replace with 2 - D44648 bushings and 1- D37416 spacer.

1шт.

18a

D44648

BUSHING

TOWER swing, and dipper arm

4шт.

18b

D37416

BUSHING

SPACER at boom castings

2шт.

19

D38478

BUSHING

BRACKETS cylinder

4шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used

4шт.

21

92-6

LOCK WASHER,3/8"

if used

4шт.

22

D37328

COVER

GUARD hose, if used

1шт.

23

D25280

SNAP RING,#175, Ext

4шт.

24

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

FLAT steel, 1-13/16"

4шт.

25

T28060

WASHER

CYLINDER spacer

4шт.

26

D38480

PIN

MOUNTING boom cylinder

2шт.

27

REF

INSTRUCTION

HYDRAULIC cylinder, boom, see Figures 060 and 062 for proper cylinder

1шт.

28

D25280

SNAP RING,#175, Ext

4шт.

29

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

FLAT 1-13/16"

4-6шт.

30

T28060

WASHER

CYLINDER spacer

2-4шт.

30

T28060

WASHER

CYLINDER spacer

2-4шт.

31

D38480

PIN

MOUNTING crowd cylinder, at boom

1шт.

32

D38481

PIN

CYLINDER crowd, D37430 dipper arm

1шт.

D43959

PIN

CYLINDER crowd, D43956 dipper arm

1шт.

33

REF

INSTRUCTION

HYDRAULIC cylinder, crowd, see Figures 64 and 66 for proper cylinder

1шт.

34

D37430

X

BACKHOE dipper arm, used before Backhoe serial no 4160773, when stock is exhausted order D43956

1шт.

Used before Backhoe S/N 4160773.

1шт.

When stock is exhausted, order D43956 dipper, D43959 pin, D45034 pin and 2 - 195-2156 washers for service - parts list 73.

1шт.

35

D38479

BUSHING

SPARE PART CYLINDER at crowd, D37430 arm

2шт.

36

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

BOOM at, D37430 arm

2шт.

37

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

ARM dipper, at bucket cylinder

2шт.

38

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

ARM dipper, at bucket link

2шт.

39

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

ARM dipper, at bucket

2шт.

40

D26919

SNAP RING,#200, Ext

2шт.

41

195-2155

WASHER,2 1/16" x 3" x .109"

FLAT steel, 2-1/16"

2шт.

42

D37449

SHIM,.0747" Thk

1шт.

43

D37609

PIN

boom to dipper arm, D37430 arm

1шт.

44

D25280

SNAP RING,#175, Ext

2шт.

45

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

FLAT steel, 1-13/16"

2шт.

46

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

CYLINDER bucket to dipper arm

1шт.

47

REF

INSTRUCTION

HYDRAULIC cylinder, bucket, see Figures 68 and 70 for proper cylinder

1шт.

48

D25279

SNAP RING,M35, Int

RETAINING

4шт.

49

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

SPECIAL

4-6шт.

50

D37612

PIN,38.1mm OD x 222.25mm L

BUCKETcylinder to bucket linkage and dipper arm

2шт.

51

D37445

LINK

BUCKETcylinder to dipper arm, R.H.

1шт.

52

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

LINK at bucket cylinder

1шт.

53

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

LINK at dipper arm

1шт.

54

D37444

LINK

SPARE PART BUCKETcylinder to dipper arm, L.H.

1шт.

55

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

LINK at bucket cylinder

1шт.

56

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

LINK at dipper arm

1шт.

57

D29991

X

LINK bucket cylinder to bucket, early production when stock is exhausted, use 2 - D37452 links

1шт.

When stock is exhausted, use 2 - D37452 links, 2 - D39261 spacers and 1 - D37450 spacer for service.

1шт.

58

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

LINK

4шт.

59

D37452

LINK

BUCKET cylinder to bucket, late production

2шт.

60

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

LINK

2шт.

61

D39261

WASHER

LINK spacer, at bucket cylinder

2шт.

62

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

LINK spacer, at bucket

1шт.

63

D25279

SNAP RING,M35, Int

RETAINING

2шт.

64

WASHER special, 1/8" thick

2шт.

65

D37614

PIN,38mm Od x 246mm L

BUCKET link to bucket, used on all buckets except heavy duty

1шт.

65

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

LINK bucket link, heavy duty bucket only

1шт.

D37793

PIN

LINK bucket link, used with frost point only

1шт.

66

D25280

SNAP RING,#175, Ext

2шт.

67

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

FLAT steel, 1-13/16"

2шт.

68

D37613

PIN

BUCKET to dipper arm, see D40244 pin

1шт.

69

REF

INSTRUCTION

BACKHOE bucket, see pages 21 thru 27 for options

1шт.

70

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2-3шт.

71

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1-2шт.

D42577

SPARE PART

ASSEMBLY frost point, backhoe

1шт.

72

NSS

NOT SOLD SEPARAT

BODY frost point

1шт.

73

D43416

POINT

TOOTH point

1шт.

74

D43417

PIN

FLEX point

1шт.
