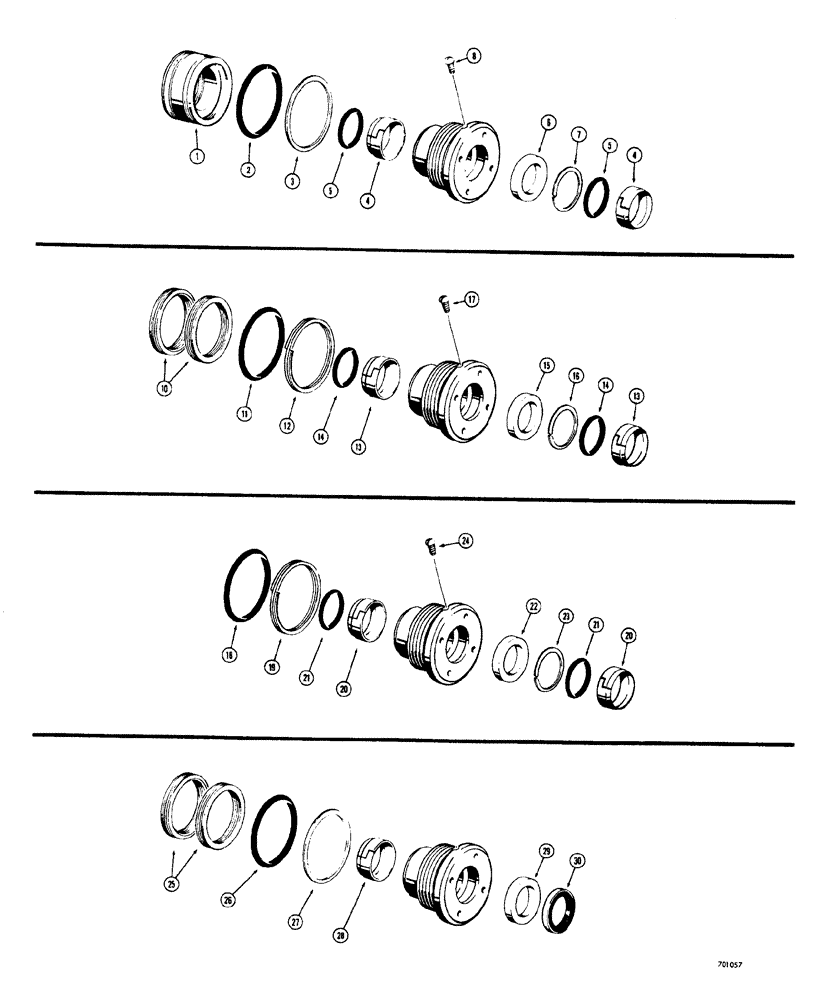

Запчасти Case 33S (078) - CYLINDER PACKING KITS (USED IN BOOM AND CROWD CYLINDERS) WITH 4" I.D. TUBE AND 2" DIA. ROD ONLY

D37358

GLAND

PACKING cylinder, when stock is exhausted, order D41401 kit for service, plus (2) D47204 packings and (1) D47209 metal ring if total piston packing is required

1шт.

1

D36964

PACKING

PISTON, D37358 cylinder packing kit

1шт.

2

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, D37358 cylinder packing kit

1шт.

3

D27382

RING

BACKUP gland seal, D37358 cylinder packing kit

1шт.

4

D27380

SCRAPER RING

WIPER rod, D37358 cylinder packing kit

2шт.

5

D26155

SEAL, "O" ring, wiper, if used, D37358 cylinder packing kit

2шт.

6

D36971

RING

SEAL rod, D37358 cylinder packing kit

1шт.

7

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, D37358 cylinder packing kit

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D37358 cylinder packing kit

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

Not shown, not used on this model, D37358 cylinder packing kit

1шт.

D41401

SEAL KIT

KIT cylinder packing, when stock is exhausted, order D42876 kit for service, plus (2) D47204 packings adn (1) D47209 metal ring if required

1шт.

10

D40689

PACKING

PISTON chevron, order D47204 packing for service, D41401 cylinder kit

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, D41401 cylinder packing kit

1шт.

12

D27382

RING

BACKUP gland seal, D41401 cylinder packing kit

1шт.

13

D27380

SCRAPER RING

WIPER rod, D41401 cylinder packing kit

2шт.

14

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper if used, D41401 cylinder packing kit

2шт.

15

D36971

RING

SEAL rod, D41401 cylinder packing kit

1шт.

16

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, D41401 cylinder packing kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D41401 cylinder packing kit

1шт.

D42876

GLAND

KITpacking

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, D42876 packing kit

1шт.

19

D27382

RING

BACKUP gland seal, D42876 packing kit

1шт.

20

D27380

SCRAPER RING

WIPER rod, D42876 gland packing kit

2шт.

21

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper, if used, D42876 gland packing kit

2шт.

22

D31971

BODY

SEAL rod, D42876 gland packing kit

1шт.

23

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, D42876 gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D42876 gland packing kit

1шт.

G32299

KIT

PACKING cylinder

1шт.

25

D47204

PACKING,89.15mm ID x 100.86mm OD

PISTON chevron, G32299 cylinder packing kit

2шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, G32299 cylinder packing kit

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, G32299 Cylinder packing kit

1шт.

28

D27380

SCRAPER RING

WIPER rod, inner, G32299 cylinder packing kit

1шт.

29

D36971

RING

SEAL rod, G32299 cylinder packing kit

1шт.

30

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper rod, outer, G32299 cylinder packing kit

1шт.
