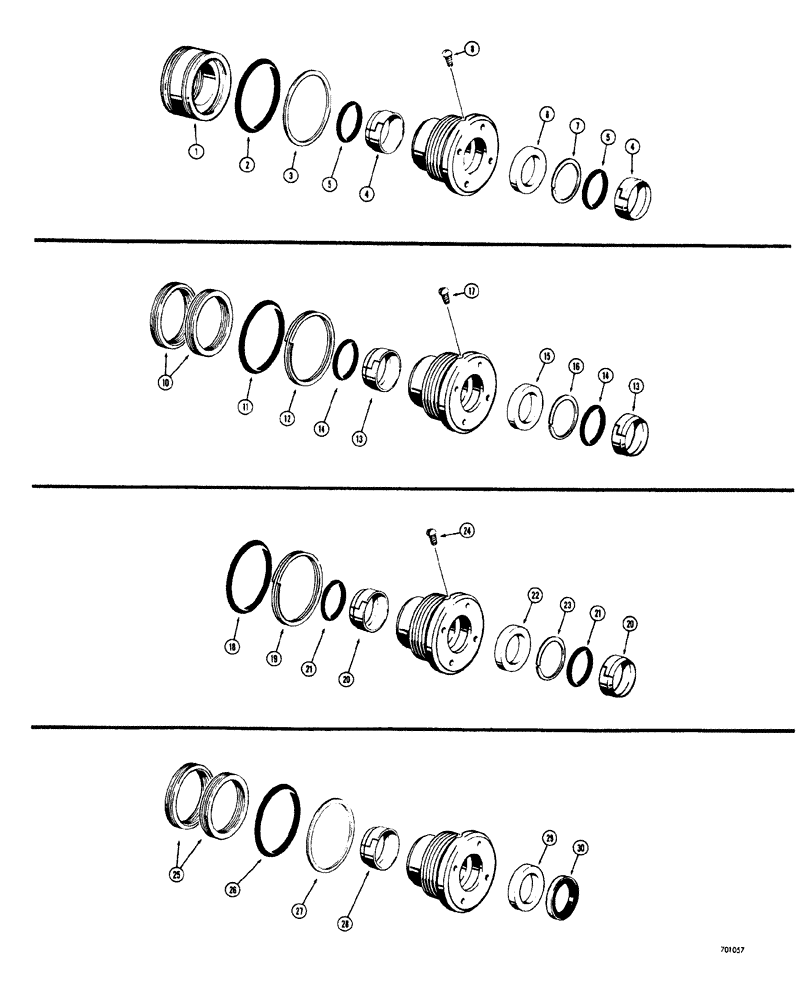

Запчасти Case 33S (076) - CYLINDER PACKING KITS (USED IN SWING CYLINDERS) 4" I.D. TUBE AND 1-3/4" DIA. ROD

D37359

SEAL KIT

KIT cylinder packing, when stock is exhausted, order D41400 kit for service, plus (2) D47204 packings and (1) D47209 metal ring if total piston packing is required

1шт.

1

D36964

PACKING

PISTON, D37539 cylinder kit

1шт.

2

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, D37359, cylinder packing kit

1шт.

3

D27382

RING

BACKUP gland seal, D37359 cylinder packing kit

1шт.

4

D27432

SHIM

ROD, D32359 cylinder packing kit

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper, if used, D37359 cylinder packing kit

2шт.

6

D36970

CUP

SEAL rod, D37359 cylinder packing kit

1шт.

7

D28499

RING

BACKUP rod seal, D37359 cylinder packing kit

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D37359 cylinder packing kit

1шт.

9

131-19

LOCK NUT,1"-14, GB

HEX lock, 1" - 14 NF, not shown, not used on this model, D37359 cylinder packing kit

1шт.

D41400

X

KIT cylinder packing, when stock is exhausted, order D42875 kit for service, plus (2) D47204 packings and (1) D47209 metal ring if total piston packing is required

1шт.

10

D40689

PACKING

PISTON chevron, order D47204 packing for service, D41400 cylinder kit

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, D41400 cylinder packing kit

1шт.

12

D27382

RING

BACKUP gland seal, D41400 cylinder packing kit

1шт.

13

D27432

SHIM

ROD, D41400 cylinder packing kit

2шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper, if used, D41400 cylinder packing kit

2шт.

15

D36970

CUP

SEAL rod, D41400 cylinder packing kit

1шт.

16

D28499

RING

BACKUP rod seal, D41400 cylinder kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D41400 cylinder packing kit

1шт.

D42875

GASKET KIT

PACKING cylinder

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, D42875 packing kit

1шт.

19

D27382

RING

BACKUP gland seal, D42875 packing kit

1шт.

20

D27432

SHIM

ROD, D42875 gland packing kit

2шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper, if used, D42875 gland packing kit

2шт.

22

D36970

CUP

SEAL rod, D424875 gland packing kit

1шт.

23

D28499

RING

BACKUP rod seal, D42875 gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D42875 gland packing kit

1шт.

G32297

SEAL

KITcylinder packing

1шт.

25

D47204

PACKING,89.15mm ID x 100.86mm OD

PISTON chevron, G32297 cylinder packing kit

2шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, G32297 cylinder packing kit

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, G32297 Cylinder packing kit

1шт.

28

D27432

SHIM

ROD inner, G32297 cylinder packing kit

1шт.

29

D36970

CUP

SEAL rod, G32297 cylinder packing kit

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER rod, outer, G32297 cylinder packing kit

1шт.
