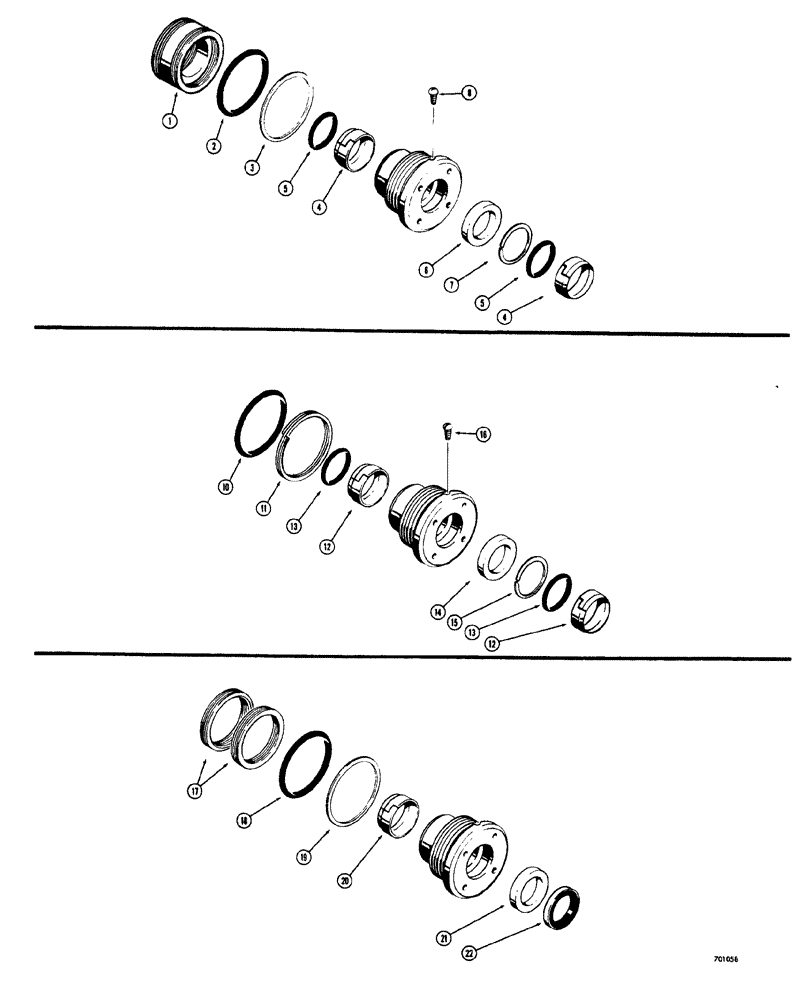

Запчасти Case 33S (074) - CYLINDER PACKING KITS (USED IN BUCKET CYLINDERS) WITH 3-1/2" I.D. TUBE AND 2" DIA. ROD ONLY

D37357

KIT

PACKING cylinder, when stock is exhausted, order D42874 for service, plus (2) D47203 packings and (1) D47208 metal ring if required

1шт.

1

D36963

PACKING

PISTON, D37357 cylinder packing kit

1шт.

2

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEA gland, D37357 cylinder packing kit

1шт.

3

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal, D37357 cylinder packing kit

1шт.

4

D27380

SCRAPER RING

WIPER rod, D37357 cylinder packing kit

2шт.

5

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper if used, D37357 cylinder packing kit

2шт.

6

D36971

RING

SEAL rod, D37357 cylinder packing kit

1шт.

7

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, D37357 cylinder packing kit

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D37357 cylinder packing kit

1шт.

9

131-19

LOCK NUT,1"-14, GB

HEX lock, 1" - 14 NF, not shown, not required on this model, D37357 cylinder packing kit

1шт.

D42874

PACKING GLAND

KIT

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland, D42874 packing kit

1шт.

11

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal, D42874 packing kit

1шт.

12

D27380

SCRAPER RING

WIPER rod, D42874 gland packing kit

2шт.

13

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper, if used, D42874 gland packing kit

2шт.

14

D36971

RING

SEAL rod, D42874 gland packing kit

1шт.

15

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, D42874 gland packing kit

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D42874 gland packing kit

1шт.

G32293

SEAL

KIT cylinder packing

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

PISTON chevron, G32293 cylinder kit

2шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland, G32293 cylinder packing kit

1шт.

19

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP gland seal, G32293 cylinder packing kit

1шт.

20

D27380

SCRAPER RING

WIPER rod, inner, G32293 cylinder packing kit

1шт.

21

D36971

RING

SEAL rod, G32293 cylinder packing kit

1шт.

22

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper rod, outer, G32293 cylinder packing kit

1шт.
