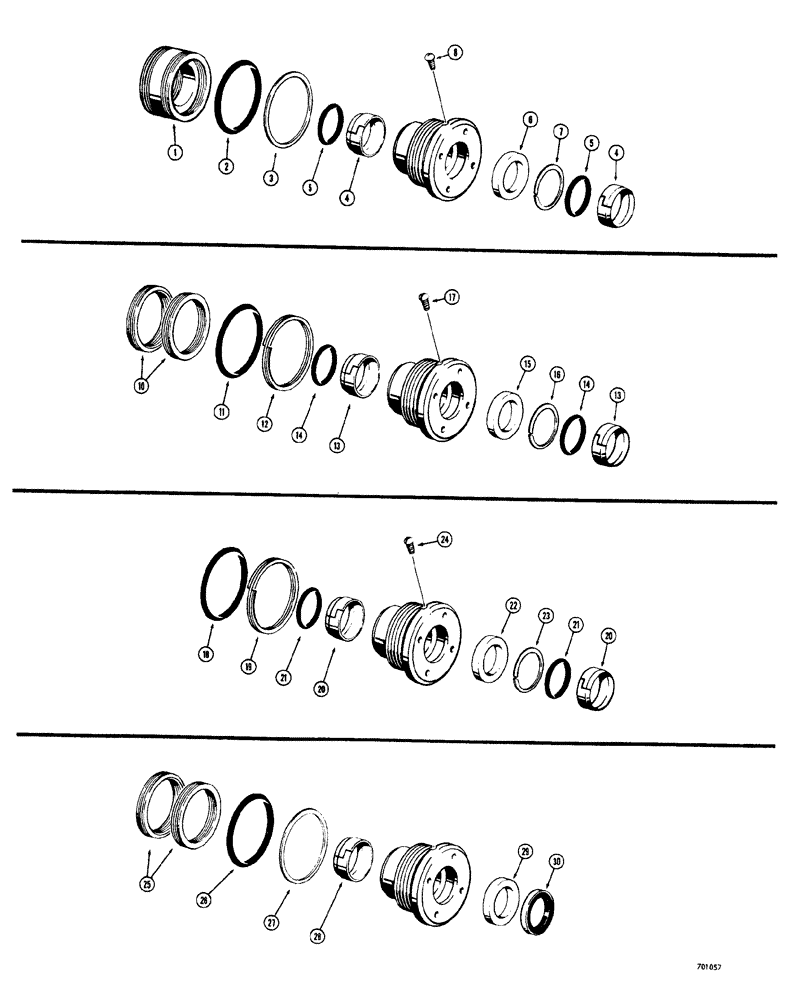

Запчасти Case 33S (072) - CYL.PACKING KIT(USED IN STABILIZER&BUCKET CYL.) W/3-1/2" ID TUBE&1-3/4"DIA.ROD ONLY D37356 CYL PACKI

D37356

GLAND

KIT cylinder packing, when stock is exhausted, order D41399 kit for service, plus (1) D47208 metal ring, packing

1шт.

1

D36963

PACKING

PISTON, D37356 cylinder kit

1шт.

2

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland, D37356 cylinder packing kit

1шт.

3

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal, D37356 cylinder packing kit

1шт.

4

D27432

SHIM

ROD, D37356 cylinder packing kit

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper, if used, D37356 cylinder packing kit

2шт.

6

D36970

CUP

SEAL rod, D37356 cylinder packing kit

1шт.

7

D28499

RING

BACKUP rod seal, D37356 cylinder packing kit

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D37356 cylinder packing kit

1шт.

9

131-19

LOCK NUT,1"-14, GB

HEX lock, 1" - 14 NF, not shown, not required on this model, D37356 cylinder packing kit

1шт.

D41399

SEAL KIT

KIT cylinder packing, when stock is exhausted, order D42873 kit, plus (2) D47203 packings and (1) D47208 metal ring if required

1шт.

10

D41278

PACKING

PISTON chevron, D41399 cylinder kit

2шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland, D41399 cylinder packing kit

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal, D41399 cylinder packing kit

1шт.

13

D27432

SHIM

ROD, D41399 cylinder packing kit

2шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper, if used, D41399 cylinder packing kit

2шт.

15

D36970

CUP

SEAL rod, D41399 cylinder packing kit

1шт.

16

D28499

RING

BACKUP rod seal, D41399 cylinder packing kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D41399 cylinder kit

1шт.

D42873

GASKET KIT

GLAND packing

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland, D42873 packing kit

1шт.

19

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

BACKUP gland seal, D42873 packing kit

1шт.

20

D27432

SHIM

ROD, D42873 gland packing kit

2шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL wiper, if used, D42873 gland packing kit

2шт.

22

D36970

CUP

SEAL rod, D42873 gland packing kit

1шт.

23

D28499

RING

BACKUP rod seal, D42873 gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", D42873 gland packing kit

1шт.

G32298

SEAL

KIT cylinder packing

1шт.

G32291

CYLINDER

KIT packing

1шт.

25

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

PISTON chevron, G32298 kit

2шт.

25a

D36963

PACKING

PISTON, G32291 kit, not illustrated in this sequence of parts - see ref no. 1

1шт.

26

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland, G32298 and G32291 cylinder packing kits

1шт.

27

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP gland seal, G32298 and G32291 cylinder packing kits

1шт.

28

D27432

SHIM

ROD inner, G32298 and G32291 cylinder packing kits

1шт.

29

D36970

CUP

SEAL rod, G32298 and G32291 cylinder packing kits

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER rod, outer, G32298 and 32291 cylinder packing kits

1шт.
