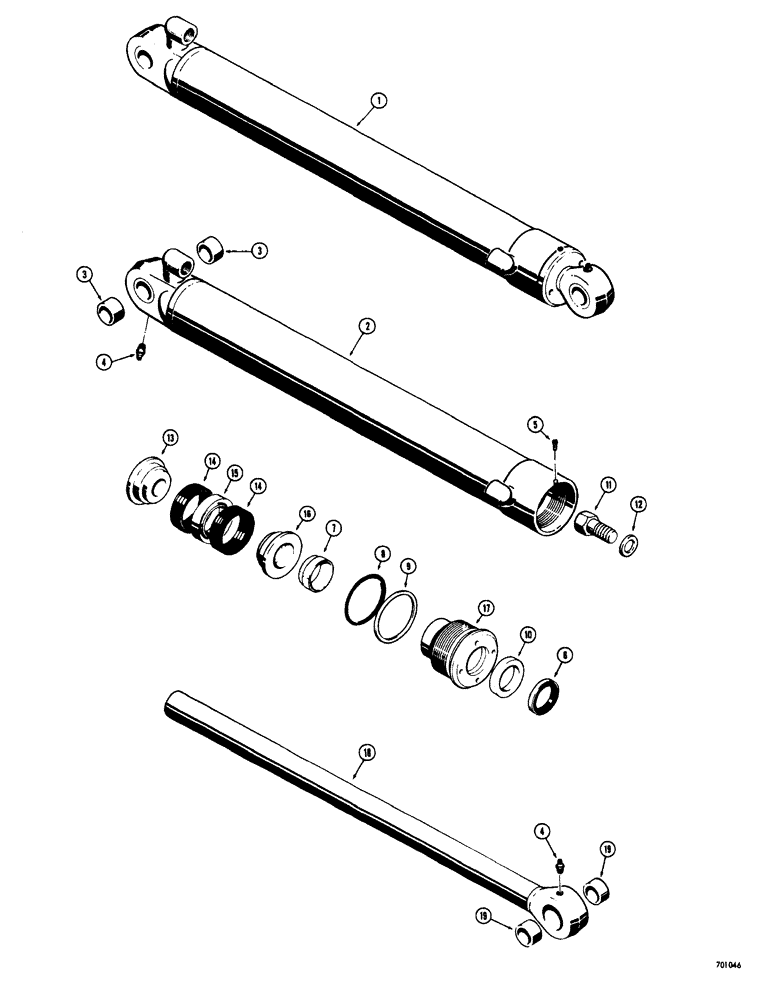

Запчасти Case 33S (070) - BACKHOE BUCKET CYLINDER, CYLINDER W/ U-TYPE SNAP IN OUTER ROD WIPER

1

G32132

CYLINDER

BUCKET 3-1/2 ' I.D. x 27-1/4" stroke, cylinder with u-type press-in outer rod wiper

1шт.

2

D37731

BODY

TUBE cylinder with u-type press-in outer rod wiper

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

TUBE cylinder with u-type press-in outer rod wiper

2шт.

4

21901

PIN

FITTING grease straight, 1/8" NPT, cylinder with u-type press-in outer rod wiper

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", cylinder with u-type press-in outer rod wiper

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper rod, outer

1шт.

Part of Bushing Rod, Ref. No. D31140

1шт.

7

D27380

SCRAPER RING

WIPER rod, inner

1шт.

Part of Bushing Rod, Ref. No. D31140

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL gland

1шт.

Part of Bushing Rod, Ref. No. D31140

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP gland seal

1шт.

Part of Bushing Rod, Ref. No. D31140

1шт.

10

D36971

RING

SEAL rod

1шт.

Part of Bushing Rod, Ref. No. D31140

1шт.

11

D32861

BOLT

SPECIAL

1шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

SPECIAL

1шт.

13

D28367

PISTON

SPLIT bolt end half

1шт.

14

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

PISTON chevron

2шт.

15

D47208

RING

METAL piston packing

1шт.

16

D28368

PISTON

SPARE PART SPLIT rod end half

1шт.

17

NSS

NOT SOLD SEPARAT

GLAND packing, service with G32736 assemblv

1шт.

18

D48968

ROD ASSY.

PISTON 2" dia.

1шт.

19

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

ROD, Includes: Ref. 6, 7, 8, 9 and 10

2шт.
