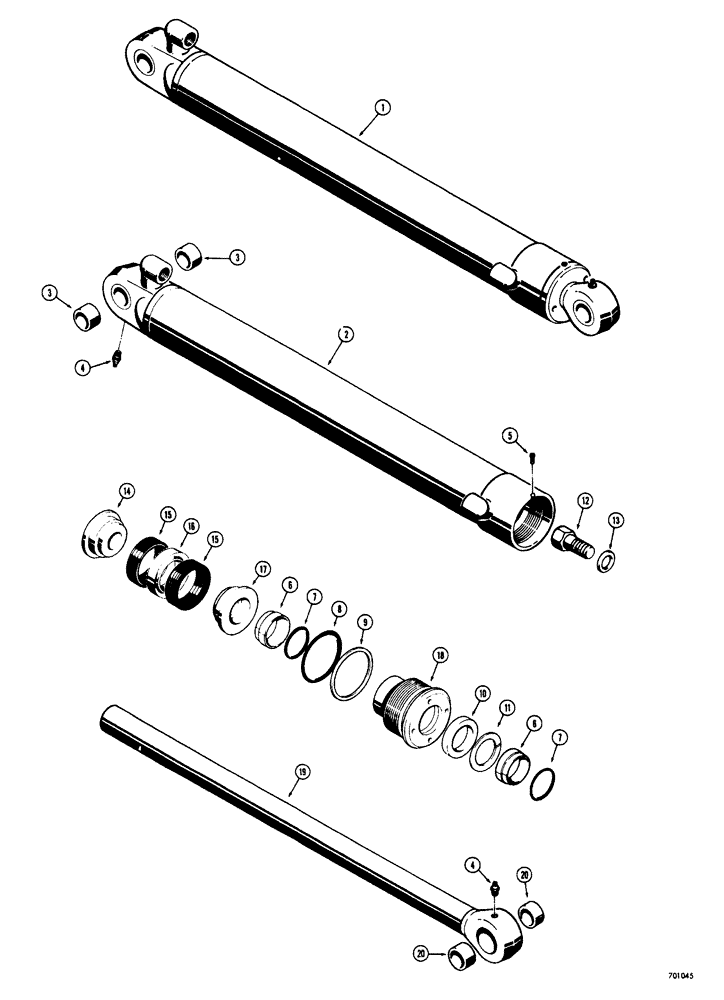

Запчасти Case 33S (068) - BACKHOE BUCKET CYLINDER, CYLINDER W/ FLAT SNAP-IN TYPE OUTER ROD WIPER
№
Артикул
Название
Примечание
Количество
1
D37622
CYLINDER
BUCKET 3-1/2" I.D. x 27-1/4" stroke, has 1-1/2' wide piston rod eye, cylinder with flat snap-in type outer rod wiper
1шт.
1
D43252
X
CYLINDER bucket, 3-1/2" I.D. x 27-1/4" stroke, has 2" wide piston rod eye, when stock is exhausted,order (1) D48967 cylinder and (2) 195-63 washers for service, with flat snap-in type outerrod wiper
1шт.
1
D48967
CYLINDER
BUCKET 3-1/2" I.D x 27-1/4" stroke, has 2" dia. piston rod, cylinder with flat snap-in type outer rod wiper
1шт.
2
D37731
BODY
TUBE cylinder with flat snap-in type outer rod wiper
1шт.
3
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
TUBE cylinder with flat snap-in type outer rod wiper
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
Cylinder with flat snap-in type outer rod wiper
2шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
TAPPING self, #8 - 32 NC x 1/4", cylinder with flat snap-in type outer rod wiper
1шт.
6
D27432
SHIM
ROD, D37622 and D43252 cylinders, with flat snap-in type outer rod wiper
2шт.
6
D27380
SCRAPER RING
WIPER rod, D48967 cylinder, cylinder with flat snap-in type outer rod wiper
2шт.
7
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL wiper, used in some D37622 and D43252 cylinders, with flat snap-in type outer rod wiper
2шт.
8
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
SEAL gland, cylinder with flat snap-in type outer rod wiper
1шт.
9
D27434
BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk
BACKUP gland seal, cylinder with flat snap-in type outer rod wiper
1шт.
10
D36970
CUP
SEAL rod, D37622 and D43252 cylinders, with flat snap-in type outer rod wiper
1шт.
10
D36971
RING
SEAL rod, D48967 cylinder, with flat snap-in type outer rod wiper
1шт.
11
D28499
RING
BACKUP rod seal, D37622 and D43252 cylinders, with flat snap-in type outer rod wiper
1шт.
11
D28500
RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk
BACKUP rod seal, D48967 cylinder, with flat snap-in type outer rod wiper
1шт.
12
D32861
BOLT
SPECIAL cylinder with flat snap-in type outer rod wiper
1шт.
13
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
SPECIAL cylinder with flat snap-in type outer rod wiper
1шт.
14
D28367
PISTON
SPLIT bolt end half, cy;inder with flat snap-in type outer rod wiper
1шт.
15
D47203
PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk
PISTON chevron, cylinder with flat snap-in type outer rod wiper
2шт.
16
D47208
RING
METAL piston packing, cylinder with flat snap-in type outer rod wiper
1шт.
17
D28369
PISTON
SPLIT rod end half, D37622 and D43252 cylinders, with flat snap-in type outer rod wiper
1шт.
17
D28368
PISTON
SPARE PART SPLITrod end half, D48967 cylinder, with flat snap-in type outer rod wiper
1шт.
18
D45069
GLAND
PACKING, D37622 and D43252 cylinders only, with flat snap-in type outer rod wiper
1шт.
18
D45070
GLAND
PACKING, D48967 cylinder only, with flat snap-in type outer rod wiper
1шт.
19
D39270
ROD ASSY.
PISTON 1-3/4" dia., D43252 cylinder. 2" wide eye, cylinder with flat snap-in type outer rod wiper
1шт.
19
D43173
PISTON
ROD 1-3/4" dia., D43252 cylinder, 2" wide eye, cylinder with flat snap-in type outer rod wiper
1шт.
19
D48968
ROD ASSY.
PISTON 2" dia., D48967 cylinder, with flat snap-in type outer rod wiper
1шт.
20
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
D39270 rod, cylinder with flat snap-in type outer rod wiper
2шт.
20
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
D43173 rod, cylinder with flat snap-in type outer rod wiper
2шт.
20
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
D48968 rod, cylinder with flat snap-in type outer rod wiper
2шт.
Выбрано товаров: 31
