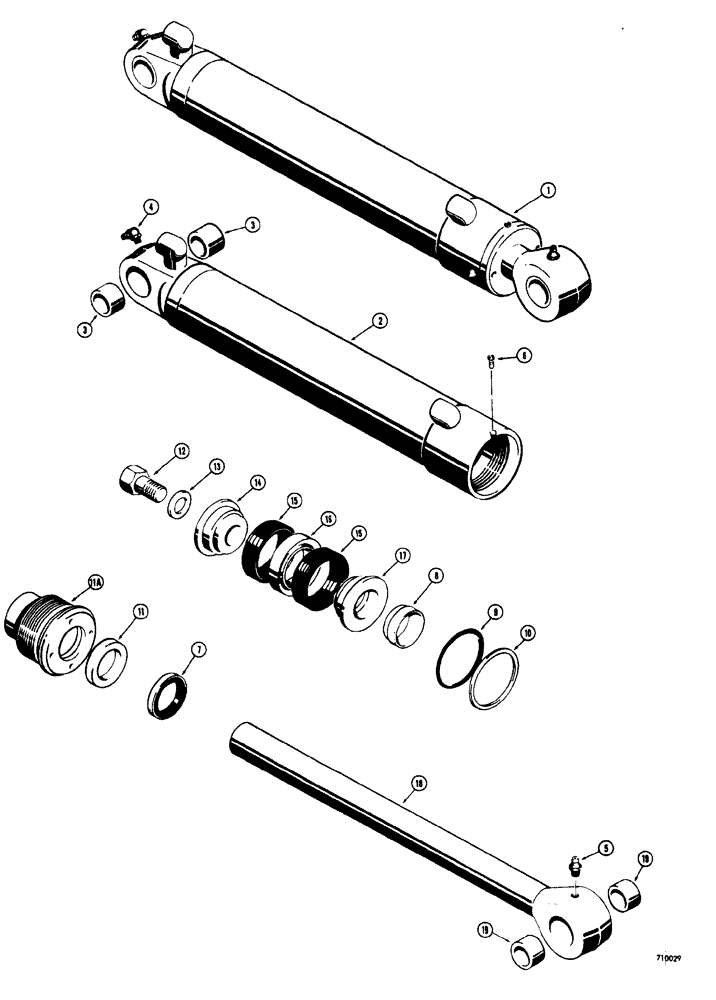

Запчасти Case 33S (066) - BACKHOE CROWD CYLINDER, CYLINDER W/ U-TYPE PRESS-IN OUTER ROD WIPER

1

G32593

CYLINDER

CROWD 4" I.D. x 35-1/8"stroke, with u-type press-in outer rod wiper

1шт.

2

G32713

CYLINDER

TUBE with u-type press-in outer rod wiper

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

TUBE

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Cylinder with u-type press-in outer rod wiper

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Cylinder with u-type press-in outer rod wiper

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", cylinder with u-type press-in outer rod wiper

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper rod, outer, cylinder with u-type press-in outer rod wiper

1шт.

8

D27380

SCRAPER RING

WIPER rod, inner, cylinder with u-type press-in outer rod wiper

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, cylinder with u-type press-in outer rod wiper

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, Cylinder with u-type press-in outer rod wiper

1шт.

11

D36971

RING

SEAL rod, cylinder with u-type press-in outer rod wiper

1шт.

12

D31642

BOLT

SPECIAL cylinder with u-type press-in outer rod wiper

1шт.

13

G32351

WASHER

SPECIAL cylinder with u-type press-in outer rod wiper

1шт.

14

D46930

PISTON

SPLIT bolt end half, cylinder with u-type press-in outer rod wiper

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

PISTON chevron, cylinder with u-type press-in outer rod wiper

2шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

METAL piston packing, cylinder with u-type press-in outer rod wiper

1шт.

17

D46424

PISTON

SPLIT rod end half, cylinder with u-type press-in outer rod wiper

1шт.

18

G32737

GLAND

GLAND packing, cylinder with u-type press-in outer rod wiper

1шт.

19

D37728

ROD

PISTON 2" dia., cylinder with u-type press-in outer rod wiper

1шт.

D27186

ASSEMBLY eye and bushing, rod, cylinder with u-type press-in outer rod wiper

1шт.

20

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

ROD cylinder with u-type press-in outer rod wiper

2шт.
