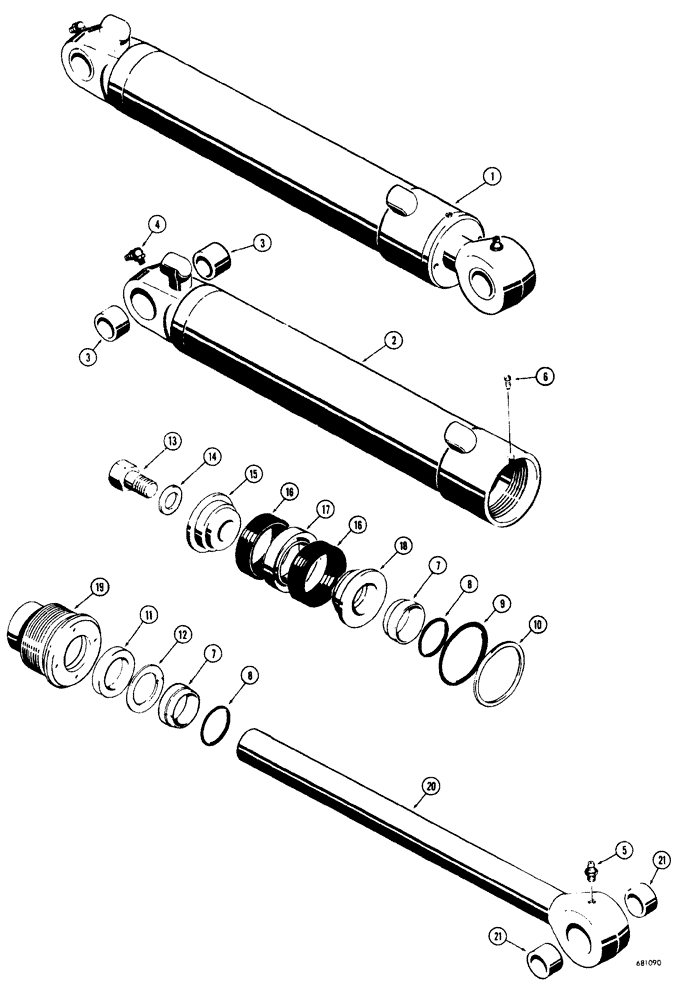

Запчасти Case 33S (064) - BACKHOE CROWD CYLINDER, CYL W/ FLAT SNAP-IN TYPE OUTER ROD WIPER

1

D37623

SPARE PART CYLINDER crowd, 1-1/16" - 12 NF front port, 4" I.D. x 35-1/8" stroke, when stock is exhausted, flat snap-in type outer rod wiper

1шт.

1

D42626

SPARE PART CROWD 7/8" - 14 NF front port, 4"I.D. x 35-1/8"" stroke, cylinder with flat snap-in type outer rod wiper

1шт.

2

D43298

TUBE

CYLINDER when stock is exhausted use G32713, with flat snap-in type outer rod wiper

1шт.

2

G32713

CYLINDER

TUBE with flat snap-in type outer rod wiper

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

TUBE

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Cylinder with flat snap-in type outer rod wiper

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Cylinder with flat snap-in type outer rod wiper

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", cylinder with flat snap-in type outer rod wiper

1шт.

7

D27380

SCRAPER RING

WIPER rod, cylinder with flat snap-in type outer

2шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL wiper, if used, cylinder with flat snap-in type outer rod wiper

2шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, cylinder with flat snap-in type outer rod wiper

1шт.

10

D27382

RING

BACKUP gland seal, cylinder with flat snap-in type outer rod wiper

1шт.

11

D36971

RING

SEAL rod, cylinder with flat snap-in type outer rod wiper

1шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, cylinder with flat snap-in type outer/wiper

1шт.

13

D31642

BOLT

SPECIAL cylinder with flat snap-in type outer rod wiper

1шт.

14

G32351

WASHER

SPECIAL cylinder with flat snap-in type outer rod wiper

1шт.

15

D28370

PISTON

SPLIT bolt end half, cylinder with flat snap-in type outer rod wiper

1шт.

16

D43112

PACKING

PISTON chevron, cylinder with flat snap-in type outer rod wiper

2шт.

17

D43113

PACKAGE

METAL piston packing, cylinder with flat snap-in type outer rod wiper

1шт.

18

D28371

PISTON

SPLIT rod end half, cylinder with flat snap-in type outer rod wiper

1шт.

19

G32737

GLAND

GLAND packing, cylinder with flat snap-in type outer rod wiper

1шт.

20

D37728

ROD

PISTON 2" dia., cylinder with flat snap-in type outer/wiper

1шт.

D27186

ASSEMBLY eye and bushing, rod, cylinder with flat snap-in type outer/wiper

1шт.

21

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

ROD cylinder with flat snap-in type outer/wiper

2шт.
