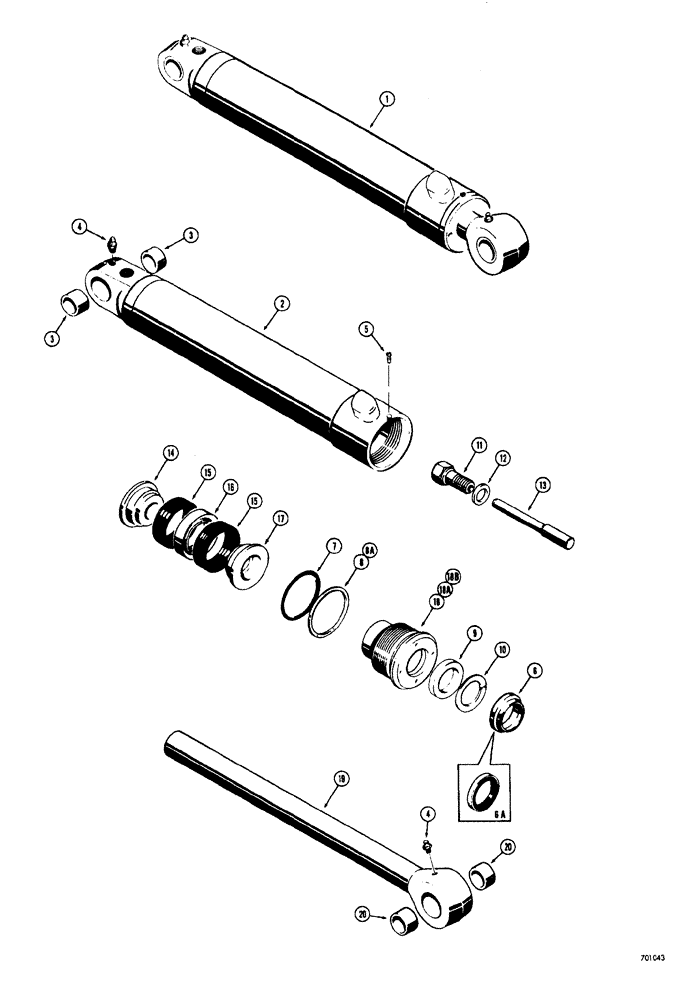

Запчасти Case 33S (062) - BACKHOE BOOM CYLINDERS (BACKHOE SERIAL NO. 4176351 AND AFTER)

1

D48962

SPARE PART BOOM 4-1/2" I.D. x 39-3/16" stroke, backhoe S.N. 4176351 and after

1шт.

1

D49533

CYLINDER

BOOM 4-1/2" I.D. x 39-3/16" stroke

1шт.

1

G32592

CYLINDER BLOCK

BOOM 4-1/2" I.D. x 39-3/16" stroke

1шт.

2

D48979

CYLINDER

TUBE

1шт.

2

G32709

TUBE

used with G32592 cylinder only

1шт.

3

D38478

BUSHING

TUBE

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4"

1шт.

6

D39360

WIPER

OUTER step type, if used

1шт.

6a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

U-type outer, if used

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL gland

1шт.

8

D42452

RING

BACKUP gland seal, spiral type

1шт.

8a

G32284

BACK-UP RING

BACKUP gland seal, solid snythetic type

1шт.

8a

D38932

BACK-UP RING

BACKUP gland seal, leather type

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL rod

1шт.

10

D39539

RING

BACKUP rod seal, if used

1шт.

11

D48966

BOLT

SPECIAL

1шт.

12

D95033

WASHER

SPECIAL

1шт.

13

D47196

PIN

RELIEF cushion

1шт.

14

D38934

PISTON

SPLIT bolt end half

1шт.

15

D47205

PACKING

PISTON chevron

2шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

METAL piston packing

1шт.

17

D38933

PISTON ASSY.

SPLIT rod end half

1шт.

18

D39369

GLAND

PACKING used with step type rod wiper, D48962 cylinder only

1шт.

18a

D49502

GLAND

PACKING used with U-type rod wiper, D49533 cylinder only

1шт.

18b

G32775

GLAND

PACKING used with U-type rod wiper, G32592 cylinder only

1шт.

19

D48963

ROD

PISTON 2-1/4" dia.

1шт.

20

D38478

BUSHING

ROD

2шт.
