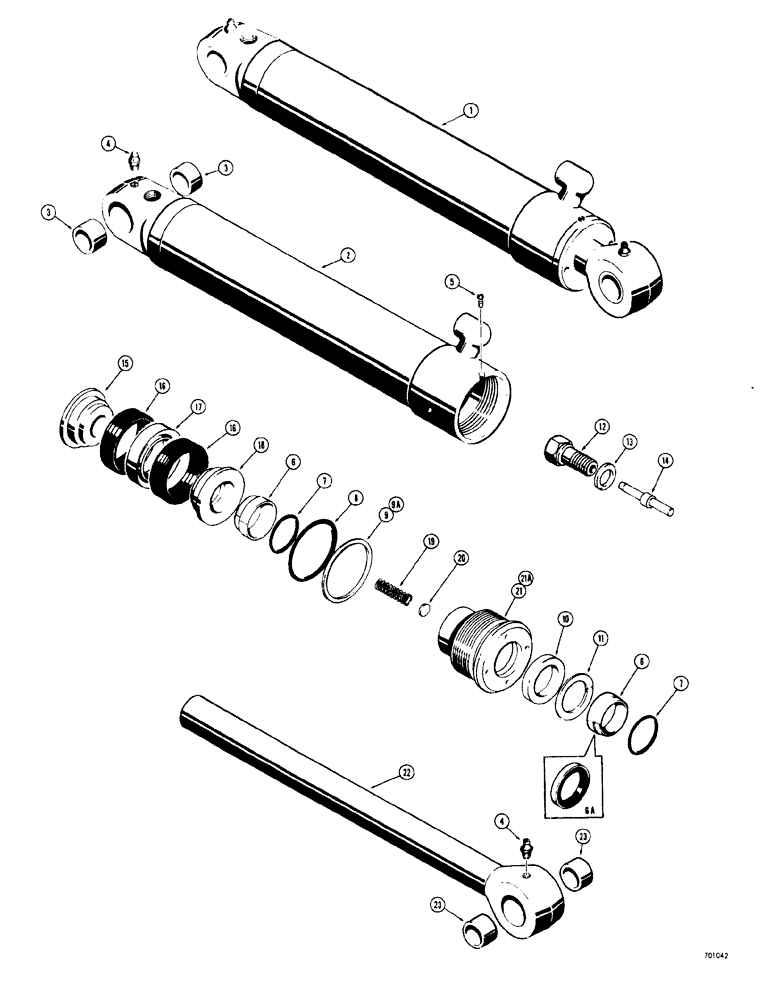

Запчасти Case 33S (060) - BACKHOE BOOM CYLINDERS (BEFORE BACKHHOE SERIAL NO. 4176351)

1

D40414

X

CYLINDER boom, 1-1/16" - 12 NF front port, 4" I.D. x 39-3/16" stroke, when stock is exhausted, order D42627 adn 218-5065 connector for service, before backhoe S/N 4176351

1шт.

1

D42627

CYLINDER

BOOM 7/8" - 14 NF front port, 4" I.D. x 39-3/16" stroke, before backhoe S/N 4176351

1шт.

1

G32594

CYLINDER

BOOM 4" I.D. x 39-3/16" stroke, before backhoe S/N 4176351

1шт.

2

D43108

X

TUBE, D40414 cylinder, when stock is exhausted, order D43299 tube and 218-5065 connector, before backhoe S/N 4176351

1шт.

2

D43299

CYLINDER

TUBE D42627 and G32594 cylinders, before backhoe S/N 4176351

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

TUBE before backhoe S/N 4176351

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Before backhoe S/N 4176351

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, # 8 - 32 NC x 1/4", before backhoe S/N 4176351

1шт.

6

D27380

SCRAPER RING

WIPER rod, flat snap-in type, before backhoe S/N 4176351

1-2шт.

6a

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper rod, U-type outer, used on G32594 cylinder only, before backhoe S/N 4176351

1 1шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL, D27380 wiper, if used, before backhoe S/N 4176351

2шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, before backhoe S/N 4176351

1шт.

9

D27382

RING

BACKUP gland seal, spiral type, before backhoe S/N 4176351

1шт.

9a

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, Solid type, before backhoe S/N 4176351

1шт.

10

D36971

RING

SEAL rod, before backhoe S/N 4176351

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

BACKUP rod seal, if used, before backhoe S/N 4176351

1шт.

12

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

SPECIAL before backhoe S/N 4176351

1шт.

13

D95033

WASHER

SPECIAL before backhoe S/N 4176351

1шт.

14

D38679

PIN

PIN restricted, before backhoe S/N 4176351

1шт.

15

D28370

PISTON

PISTON bolt end half, before backhoe S/N 4176351

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

PISTON chevron, before backhoe S/N 4176351

2шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

METAL piston packing, before backhoe S/N 4176351

1шт.

18

D28371

PISTON

SPLIT rod end half, before backhoe S/N 4176351

1шт.

19

D38683

SPRING

PIN, before backhoe S/N 4176351

1шт.

20

D38684

SPACER

SPACER spring, before backhoe S/N 4176351

1шт.

21

D45071

GLAND

PACKING used with flat snap-in front wiper, before backhoe S/N 4176351

1шт.

21a

G32113

GLAND

PACKING used with U-type front wiper, before backhoe S/N 4176351

1шт.

22

D40410

PISTON

ROD 2" dia., before backhoe S/N 4176351

1шт.

23

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

ROD before backhoe S/N 4176351

2шт.
