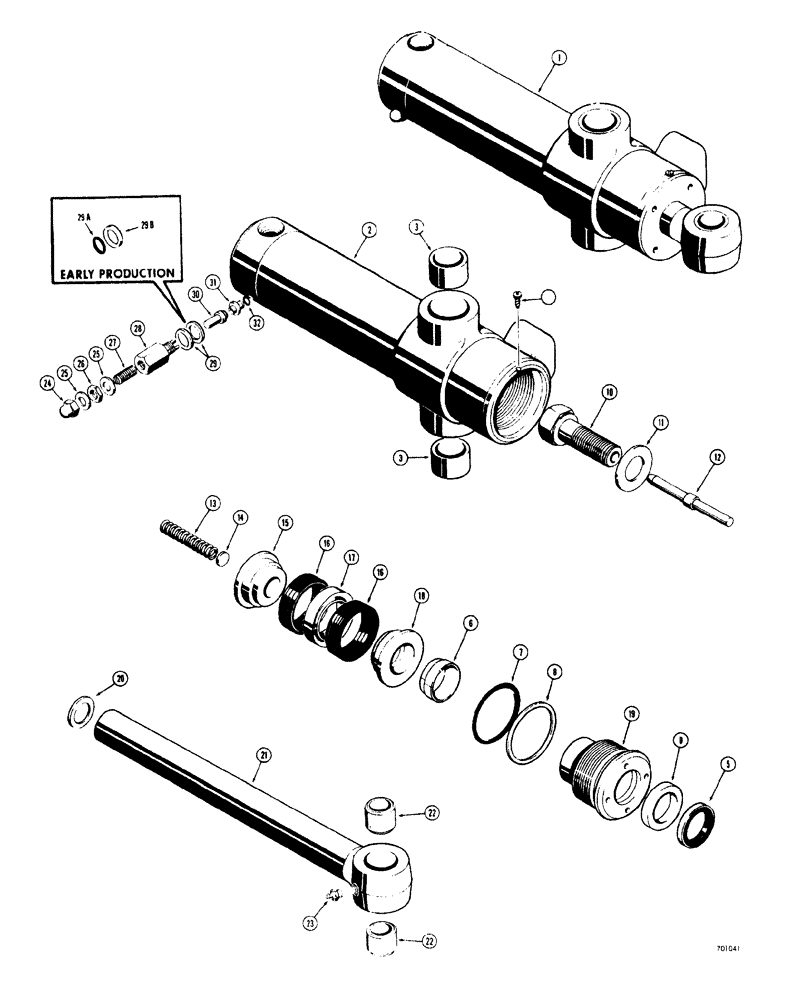

Запчасти Case 33S (058) - BACKHOE SWING CYLINDERS CYL. W/ U-TYPE PRESS-IN OUTER ROD WIPERS

1

G32590

CYLINDER BLOCK

SWING, R.H., 4" I.D. x 11" stroke, with u-type press-in outer rod wiper

1шт.

1

G32591

CYLINDER ASSY.

SWING, L.H., 4" I.D. x 11" stroke, with u-type press-in outer rod wiper

1шт.

2

D40382

CYLINDER

TUBE, R.H., with u-type press-in outer rod wiper

1шт.

2

D40381

BODY

TUBE cylinder, L.H., with u-type press-in outer rod wiper

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

TUBE cylinder with u-type press-in outer rod wiper

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", cylinder with u-type press-in outer rod wiper

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER rod, outer, cylinder with u-type press-in

1шт.

6

D27432

SHIM

ROD inner, cylinder with u-type press-in outer

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, cylinder with u-type press-in outer rod wiper

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, Cylinder with u-type press-in outer rod wiper

1шт.

9

D36970

CUP

SEAL rod, cylinder with u-type press-in outer rod wiper

1шт.

10

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

SPECIAL, cylinder with u-type press-in outer rod wiper

1шт.

11

D95033

WASHER

SPECIAL cylinder with u-type press-in outer rod wiper

1шт.

12

D38689

PIN restrictor, cylinder with u-type press-in outer rod wiper

1шт.

13

D38683

SPRING

PIN cylinder with u-type press-in outer rod wiper

1шт.

14

D38364

SPACER pin, cylinder with u-type press-in outer rod wiper

1шт.

15

D49161

PISTON

SPLIT bolt end half, cylinder with u-type press-in outer rod wiper

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

PISTON chevron, cylinder with u-type press-in outer rod wiper

2шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

METAL piston packing, cylinder with u-type press-in outer rod wiper

1шт.

18

D49160

PISTON

SPLIT rod end half, cylinder with u-type press-in outer rod wiper

1шт.

19

G32738

GLAND

PACKING cylinder with u-type press-in outer rod wiper

1шт.

20

D95035

WASHER

SPECIAL rod, cylinder with u-type press-in outer rod wiper

1шт.

21

D49008

ROD

PISTON 1-3/4" dia., cylinder with u-type press-in outer rod wiper

1шт.

22

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

ROD cylinder with u-type press-in outer rod wiper

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Cylinder with u-type press-in outer rod wiper

1шт.

D42478

VALVE

CARTRIDGE relief, not preset, must be set to correct pressure when installed on cylinder, with u-type press-in outer rod wiper

1шт.

24

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF, cylinder with u-type press-in outer rod wiper

1шт.

25

23150

WASHER

GASKET copper, cylinder with u-type press-in outer rod wiper

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX lock, 3/8" - 24 NF, cylinder with u-type press-in outer rod wiper

1шт.

27

D38814

ADJUSTMENT SCREW,3/8" - 24

SET special, cylinder with u-type press-in outer rod wiper

1шт.

28

NSS

NOT SOLD SEPARAT

ASSEMBLY body, cartridge, cylinder with u-type press-in outer wiper

1шт.

29

16219

GASKET

SPECIAL cylinder with u-type press-in outer wiper

2шт.

29a

D26872

O-RING

SEAL order (2) 16219 gaskets to replace D26872 seal and D31450 gasket for service, cylinder with u-type press-in outer rod wiper

1шт.

29b

D31450

WASHER

GASKET copper, order (2) 16219 gaskets to replace D26872 seal and D31450 gasket for service, cylinder with u-type press-in outer rod wiper

1шт.

D40187

PACKAGE

KIT seat and poppet, cylinder with u-type press-in outer rod wiper

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET cartridge, cylinder with u-type press-in outer rod wiper

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT poppet, cylinder with u-type press-in outer rod wiper

1шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal, cylinder with u-type press-in outer rod wiper

1шт.
