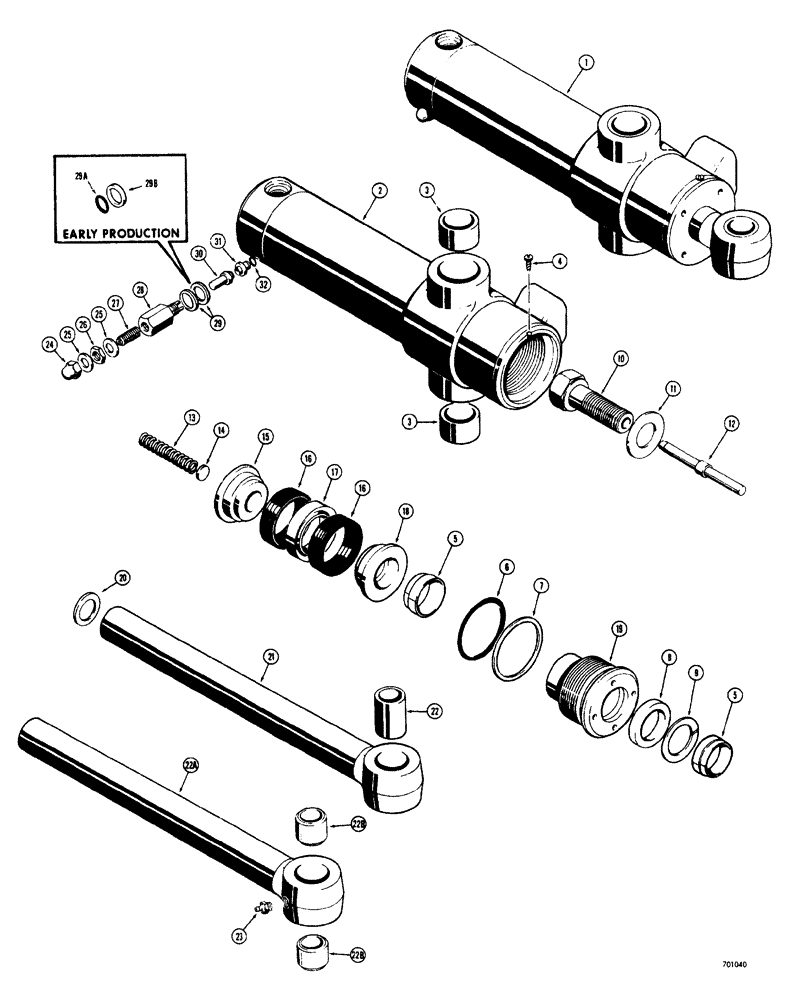

Запчасти Case 33S (056) - BACKHOE SWING CYLINDERS CYLINDER W/ FLAT SNAP-IN TYPE OUTER ROD WIPER

1

D40380

CYLINDER ASSY.

SWING, R.H., 4" I.D. x 11" stroke, no grease fitting in rod eye, cylinder with flat snap-in type outer/wiper

1шт.

1

D49052

SPARE PART CYLINDER swing, R.H., 4" I.D. x 11" stroke, grease fitttng in rod eye, with flat snap-in type outer rod wiper

1шт.

1

D40379

CYLINDER ASSY.

SWING, L.H., 4" I.D. 11" stroke, no grease fitting rod eye, cylinder with flat snap-in type outer/wiper

1шт.

1

D49051

CYLINDER

SWING, L.H., 4" I.D. x 11" stroke, grease fitting in rod eye, cylinder with flat snap-in type outer/wiper

1шт.

2

D40382

CYLINDER

TUBE, R.H., cylinder with flat snap-in type outer rod wiper

1шт.

2

D40381

BODY

TUBE cylinder, L.H., with flat snap-in type outer rod wiper

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

TUBE cylinder with flat snap-in type outer rod wiper

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

TAPPING self, #8 - 32 NC x 1/4", cylinder with flat snap-in type outer rod wiper

1шт.

5

D27432

SHIM

ROD cylinder with flat snap-in type outer rod wiper

2шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL gland, cylinder wiht flat snap-in type outer rod wiper

1шт.

7

D27382

RING

BACKUP gland seal, cylinder with flat snap-in type outer rod wiper

1шт.

8

D36970

CUP

SEAL rod, cylinder with flat snap-in type outer/wiper

1шт.

9

D28499

RING

BACKUP rod seal, cylinder with flat snap-in type outer/wiper

1шт.

10

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

SPECIAL cylinder with flat snap-in type outer rod wiper

1шт.

11

D95033

WASHER

SPECIAL bolt, cylinder with flat snap-in type outer rod wiper

1шт.

12

D38679

PIN

PIN restrictor, cylinder with flat snap-in type outer rod wiper

1шт.

13

D38683

SPRING

PIN cylinder with flat snap-in type outer rod wiper

1шт.

14

D38684

SPACER

SPACER pin, cylinder with flat snap-in type outer rod wiper

1шт.

15

D49161

PISTON

SPLIT bolt end half, cylinder with flat snap-in type outer rod wiper

1шт.

16

D43112

PACKING

PISTON chevron, cylinder with flat snap-in type outer rod wiper

2шт.

17

D43113

PACKAGE

METAL piston packing, cylinder with flat snap-in type outer rod wiper

1шт.

18

D49160

PISTON

SPLIT rod end half, cylinder with flat snap-in type outer/wiper

1шт.

19

G32738

GLAND

PACKING cylinder with flat snap-in type outer rod wiper

1шт.

20

D95035

WASHER

SPECIAL rod, cylinder with flat snap-in type outer/wiper

1шт.

21

D37736

PISTON ROD

ROD piston, 1-3/4" dia, without grease fitting in rod eye, cylinder with flat snap-in type outer/wiper

1шт.

22

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

ROD cylinder with flat snap-in type outer/wiper

1шт.

22a

D49008

ROD

PISTON, 1-3/4" dia., uses grease fitting in rod eye, cylinder with flat snap-in type outer/wiper

1шт.

22b

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

ROD cylinder with flat snap-in type outer rod wiper

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used, cylinder with flat snap-in type outer rod wiper

1шт.

D42478

VALVE

CARTRIDGE relief, not preset, must be set to correct pressure when installed on cylinder, cylinder with flat snap-in type outer rod wiper

1шт.

Relief valve is relocated at closed end of cylinder on late production cylinder.

1шт.

24

129-526

CROWN NUT,Low, 3/8" - 24

ACORN 3/8" - 24 NF, cylinder with flat snap-in type outer rod wiper

1шт.

25

23150

WASHER

GASKET copper, cylinder with flat snap-in type outer rod wiper

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

HEX lock, 3/8" - 24 NF, cylinder with flat snap-in type outer rod wiper

1шт.

27

38814

SPACER

SCREW set, special, cylinder with flat snap-in type outer rod wiper

1шт.

28

NSS

NOT SOLD SEPARAT

ASSEMBLY body, cartridge, cylinder with flat snap-in type outer rod wiper

1шт.

29

16219

GASKET

SPECIAL cylinder with flat snap-in type outer rod wiper

2шт.

29a

D26872

O-RING

SEAL order (2) 16219 gaskets to replace D26872 seal and D31450 gasket for service, cylinder with flat snap-in type outer rod wiper

1шт.

29b

D31450

WASHER

GASKET copper, order (2) 16219 gaskets to replace D26872 seal and D31450 gasket for service, cylinder with flat snap-in type outer rod wiper

1шт.

D40187

PACKAGE

KIT seat and poppet, cylinder with flat snap-in type outer rod wiper

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET cartridge, cylinder with flat snap-in type outer rod wiper

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT poppet, cylinder with flat snap-in type outer rod wiper

1шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Seal, cylinder with flat snap-in type outer rod wiper

1шт.
