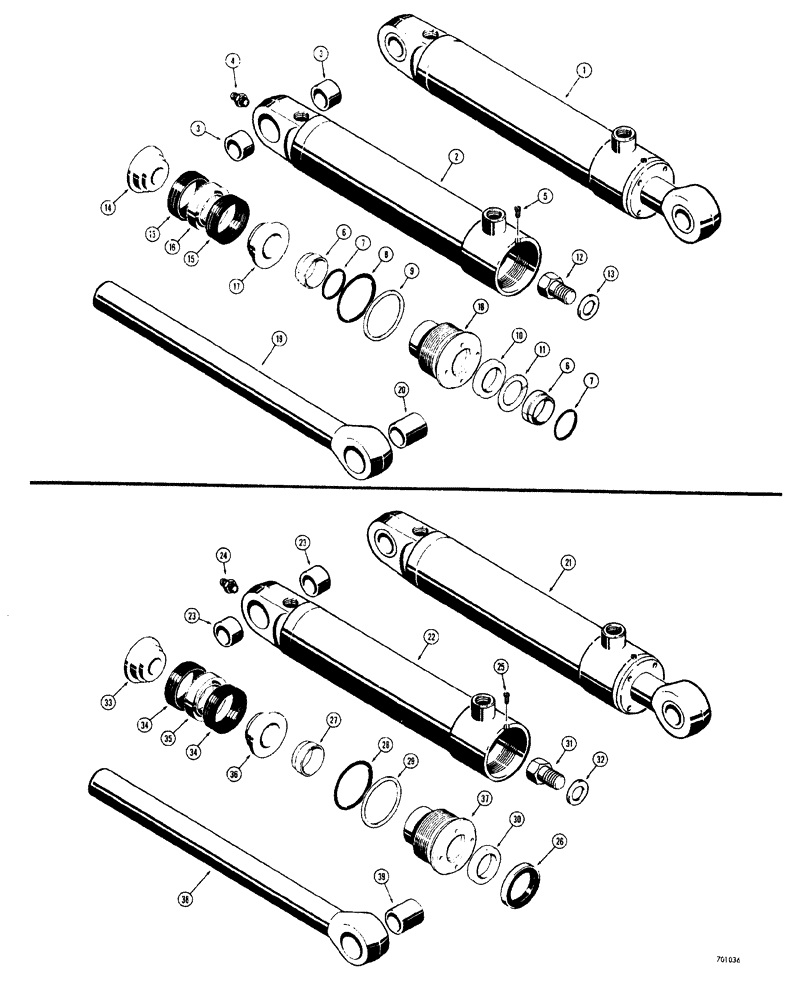

Запчасти Case 33S (054) - BACKHOE STABILIZER CYLINDERS
№
Артикул
Название
Примечание
Количество
1
D35683
CYLINDER ASSY.
STABILIZER 3-1/2" LD x 11-1/2" stroke, with flat snap-in type outer rod wiper
2шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
2
D36680
TUBE
CYLINDER with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
3
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
TUBE cylinder with flat snap-in type outer rod wiper
2шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
Cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
TAPPING self, #8 - 32 NC x 1/4", cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
6
D27432
SHIM
ROD cylinder with flat snap-in type outer/wiper
2шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
7
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL wiper, if used, cylinder with flat snap-in type outer rod wiper
2шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
8
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
SEAL gland, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
9
D27434
BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk
BACKUP gland seal, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
10
D36970
CUP
SEAL rod, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
11
D28499
RING
BACKUP rod seal, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
12
D32861
BOLT
SPECIAL cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
13
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
SPECIAL cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
14
D28367
PISTON
SPLIT bolt end half, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
15
D47203
PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk
PISTON chevron, cylinder with flat snap-in type outer rod wiper
2шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
16
D47208
RING
METAL piston packing, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
17
D28369
PISTON
SPLIT rod end half, cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
18
G32743
GLAND
PACKING cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
19
D36684
ROD ASSY.
PISTON, 1-3/4" dia., cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
20
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
ROD cylinder with flat snap-in type outer rod wiper
1шт.
This cylinder uses D37356, D41399 or D42873 Packing Kits. See page 073 for kit components.
1шт.
21
G32173
CYLINDER
STABILZER, 3-1/2" LD x 11-1/2" stroke, cylinder with u-type press-in outer rod wiper
2шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
22
D36680
TUBE
CYLINDER with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
23
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
TUBE with u-type press-in outer rod wiper
2шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
24
219-1
LUBE NIPPLE,1/8" - 27 NPTF
Cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
25
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
TAPPING self, #8 - 32 NC x 1/4", cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
26
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER rod, outer, cylinder with u-type press-in
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
27
D27432
SHIM
ROD inner, cylinder with u-type press-in outer/wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
28
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
SEAL gland, cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
29
G32136
CYLINDER
RING backup, gland seal, with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
30
D36970
CUP
SEAL rod, cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
31
D32861
BOLT
SPECIAL cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
32
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
SPECIAL cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
33
D28367
PISTON
SPLIT bolt end half, cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
34
D47203
PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk
PISTON chevron, cylinder with u-type press-in outer rod wiper
2шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
35
D47208
RING
RING piston packing, cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
36
D28369
PISTON
SPLIT rod end half, cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
37
G32117
GLAND
PACKING cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
38
D36684
ROD ASSY.
PISTON, 1-3/4" dia., cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
39
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
ROD cylinder with u-type press-in outer rod wiper
1шт.
This cylinder uses G32298 Packing Kit. See page 073 for kit components.
1шт.
