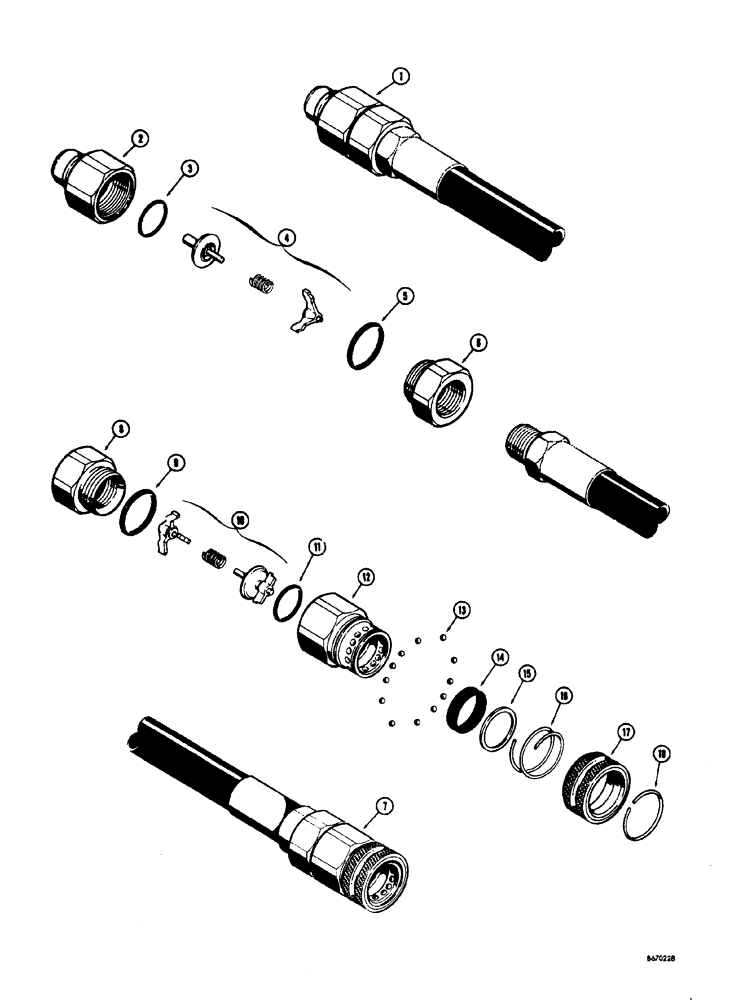

Запчасти Case 33S (052) - HYDRAULIC COUPLINGS

1

D37223

SPARE PART MALE snap-tite, D37223 hydraulic coupling

1шт.

2

D41804

BODY male coupling, D37223 hydraulic

1шт.

3

D41803

O-RING

SEAL valve, d37223 hydraulic coupling

1шт.

4

D41805

ASSEMBLY valve, male coupling, D37223 hydraulic

1шт.

5

D41802

SPARE PART SEAL fitting, D37223 hydraulic coupling

1шт.

6

D41801

FITTING end, D37223 hydraulic coupling

1шт.

7

D37222

COUPLING

FEMALE snap-tite, D37222 hydraulic coupling

1шт.

8

D41801

FITTING end, D37222 hydraulic coupling

1шт.

9

D41802

SPARE PART SEAL fitting, D37222 hydraulic coupling

1шт.

10

D41806

ASSEMBLY valve, female coupling, D37222 hydraulic

1шт.

11

D41803

O-RING

SEAL valve, D37222 hydraulic coupling

1шт.

12

D41807

BODY female coupling, D37222 hydraulic

1шт.

13

D41810

X

KIT ball, Includes: 12 balls, D37222 hydraulic coupling

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL ring, special, D37222 hydraulic coupling

1шт.

15

NSS

NOT SOLD SEPARAT

RING backup, D37222 hydraulic coupling

1шт.

16

D41808

VALVE SPRING

SLEEVE, D37222 hydraulic coupling

1шт.

17

D41809

SLEEVE ball retaining, D37222 hydraulic coupling

1шт.

18

D41811

RING retaining, D37222 hyraulic coupling

1шт.
