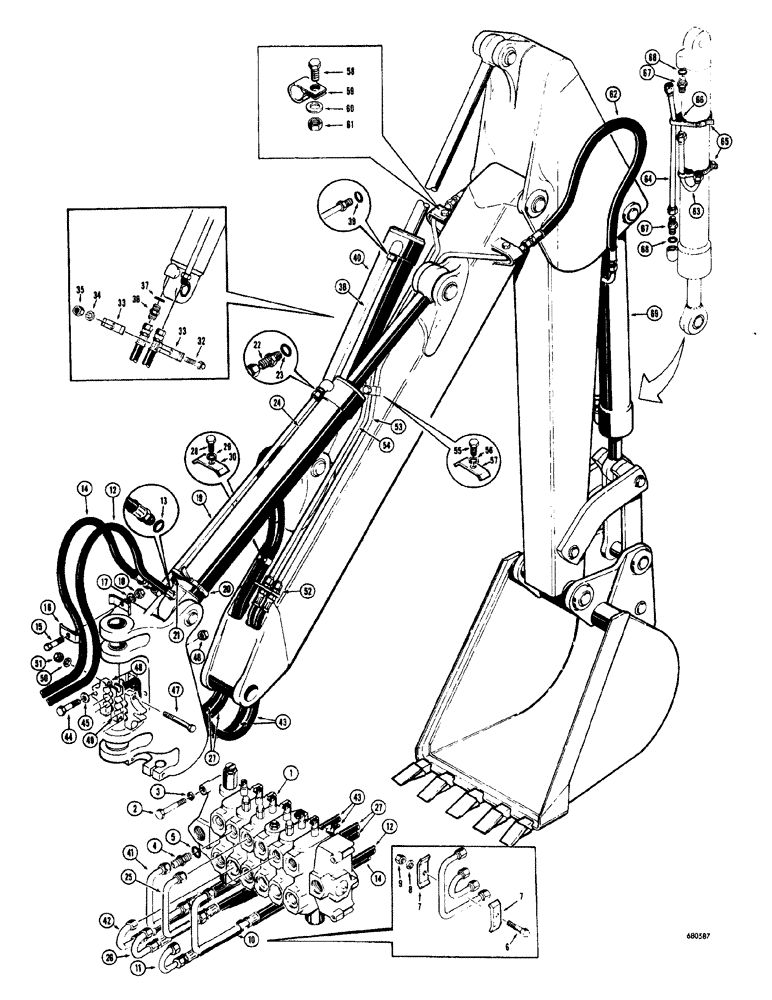

Запчасти Case 33S (048) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS

1

D37928

SPARE PART CONTROL backhoe, parts list page 083, late production

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Late production

3шт.

3

92-6

LOCK WASHER,3/8"

late production

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

MALE straight, late production

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Late production

1шт.

6

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HCCS 5/16" - 18 NC x 1-3/4", late production

3шт.

7

D20045

PLATE ASSY.

CLAMP tube, late production

6шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

WROT standard, 5/16", late production

1шт.

9

131-4

LOCK NUT,5/16"-18, GB

Late production

3шт.

10

D36654

TUBE

SECTION boom, upper port, cylinder hydraulics

1шт.

11

D36923

TUBE

SECTION boom, lower port, cylinder hydraulics

1шт.

12

D38626

HOSE ASSY.

UPPER boom section port to boom cylinder, rod end, 57" long, hydraulics

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boom cylinder hydraulics

1шт.

14

D38124

HOSE

LOWER boom section port to boom cylinder, rod end, 57" long, hydraulics

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Boom cylinder hydraulics

1шт.

16

R15257

CLAMP

HOSE boom cylinder hydraulics

2шт.

17

195-25

WASHER,3/8"

Boom cylinder hydraulics

1шт.

18

131-6

LOCK NUT,3/8"-16, GC

HEX lock, 3/8" - 16 NC, boom cylinder hydraulics

1шт.

19

D37232

BOOM

SPARE PART TUBE boom cylinder, rod end, hdyraulics

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

TUBE to cylinder, boom hydraulics

1шт.

21

D38648

BLOCK

SPACER clamp, boom cylinder hydraulics

1шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Male, straight, boom cylinder hydraulics

1шт.

23

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL boom cylinder hydraulics

1шт.

24

REF

INSTRUCTION

CYLINDER hydraulic, boom, see Figures 060 and 062 for proper cylinder

1шт.

25

D30773

TUBE

SECTION crowd, upper port, cylinder hydraulics

1шт.

26

D30771

TUBE

SPARE PART SECTION crowd, lower port, cylinder hydraulics

1шт.

27

D37216

HOSE ASSY.

VALVE to crowd cylinder, 72-1/2" long, hydraulics

2шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Crowd cylinder hydraulics

1шт.

29

92-6

LOCK WASHER,3/8"

crowd cylinder hydraulics

1шт.

30

D40236

CLAMP

HOSE crowd cylinder hydraulics

1шт.

31

RESERVED

1шт.

32

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Crowd cylinder hydraulics

1шт.

33

D33316

CLAMP

TUBE crowd cylinder hydraulics

2шт.

34

195-21

WASHER,5/16"

Crowd cylinder hydraulics

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

Crowd cylinder hydraulics

1шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Male, straight, crowd cylinder hydraulics

1шт.

37

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL crowd cylinder hydraulics

1шт.

38

D37230

SPARE PART CYLINDER crowd, rod end, hydraulics, used with D37623 crowd cylinder only

1шт.

D42624

TUBE

CYLINDER crowd, rod end, hydraulics, used with D42626 crowd cylinder only

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Used with D37230 tube only, crowd cylinder hydraulics

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL used with D42624 tube only, crowd cylinder hydraulics

1шт.

40

REF

INSTRUCTION

CYLINDER hydraulic, crowd, see Figures 064 and 066 for proper cylinder

1шт.

41

D30773

TUBE

SECTION bucket, upper port, cylinder hydraulics

1шт.

42

D30771

TUBE

SPARE PART SECTION bucket, lower port, cylinder hydraulics

1шт.

43

D39358

HOSE ASSY.

VALVE to bucket cylinder, 54" long, hydraulics

2шт.

44

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Bucket cylinder hydraulics

2шт.

45

195-21

WASHER,5/16"

Bucket cylinder hydraulics

4шт.

46

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

47

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS 5/16" - 18 NC x 3-3/4", bucket cylinder hydraulics

2шт.

48

D26125

CLAMP

HOSE outer, bucket cylinder hydraulics

2шт.

49

D26124

HOSE

CLAMP center, bucket cylinder hydraulics

1шт.

50

195-21

WASHER,5/16"

Bucket cylinder hydraulics

2шт.

51

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

52

D26231

NUT

HEX jam, special, bucket cylinder hydraulics

2шт.

53

D40632

TUBE

VALVE to bucket cylinder, R.H., hydraulics

1шт.

54

D40630

TUBE

VALVE to bucket cylinder, L.H., hydraulics

1шт.

55

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bucket cylinder hydraulics

2шт.

56

D40236

CLAMP

TUBE bucket cylinder hydraulics

2шт.

57

92-6

LOCK WASHER,3/8"

bucket cylinder hydraulics

2шт.

58

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bucket cylinder hydraulics

2шт.

59

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

TUBE bucket cylinder hydraulics

2шт.

60

195-21

WASHER,5/16"

Bucket cylinder hydraulics

2шт.

61

131-4

LOCK NUT,5/16"-18, GB

Bucket cylinder hydraulics

2шт.

62

D42290

HOSE

VALVE to bucket cylinder, 40" long, hydraulics

2шт.

63

D40655

TUBE

CYLINDER to bucket, closed end, hydraulics

1шт.

64

D40647

TUBE

CYLINDER to bucket, rod end, hydraulics

1шт.

65

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

TUBE to cylinder, bucket hydraulics

2шт.

66

D38648

BLOCK

TUBE spacer, bucket cylinder hydraulics

2шт.

67

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Male, straight, bucket cylinder hydraulics

2шт.

66

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL bucket cylinder hydraulics

1шт.

69

REF

INSTRUCTION

CYLINDER hydraulic, bucket, see pages 068 and 070 for proper cylinder

1шт.
