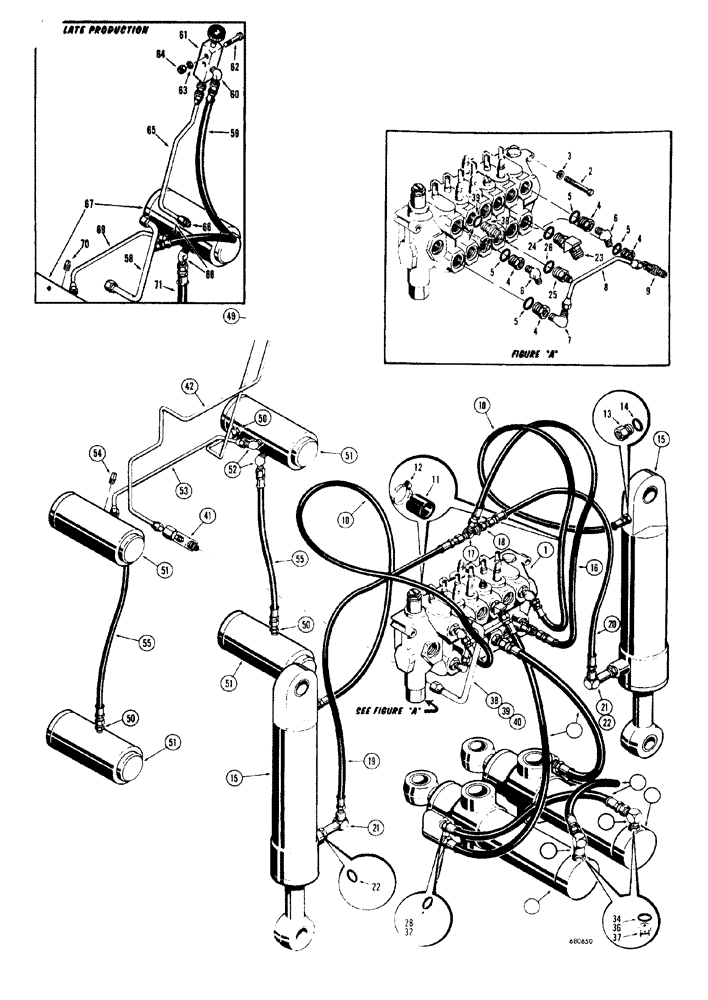

Запчасти Case 33S (040) - SWING, STABILIZER AND LOCKING CYLINDER HYDRAULICS

1

REF

INSTRUCTION

VALVE backhoe control, see page 083 for parts list

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

D36928

ADAPTER

ADAPTER special, straight, stabilizer cylinder hydraulics

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Stabilizer cylinder hydraulics

1шт.

6

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

ELBOW male, 45°, stabilizer cylinder hydraulics

2шт.

7

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

ELBOW male, 90°, stabilizer cylinder hydraulics

1шт.

8

D36915

TUBE

CROSSOVER, stabilizer cylinder hydraulics

1шт.

9

D36933

SPARE PART TEE male, special, stabilizer cylinder hydraulics

1шт.

10

D36910

HOSE

VALVE to stabilizer cylinders, closed end, 57-1/2" long, hydraulics

2шт.

11

D36954

SPARE PART HOSE rubber, stabilizer cylinder hydraulics

3шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

HOSE stabilizer cylinder hydraulics

2шт.

13

D36929

ADAPTER

ADAPTER special, straight, stabilizer cylinder hydraulics

2шт.

14

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL stabilizer cylinder hydraulics

1шт.

15

REF

INSTRUCTION

CYLINDER hydraulic, stabilizer, see page 055 for proper cylinder

2шт.

16

D36912

HOSE

VALVE to stabilizer cylinder tee, 43-3/4" long, hydraulics

1шт.

17

D36931

TEE

MALE special, stabilizer cylinder hydraulics

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

HEX lock, 1/2" - 20 NF, stabilizer cylinder hydraulics

1шт.

19

D36911

HOSE

TEE to L.H. stabilizer cylinder, rod end, 35" long, hydraulics

1шт.

20

D36913

HOSE

TEE to R.H. stabilizer cylinder, rod end, 24-1/2" long, hydraulics

1шт.

21

D36927

ELBOW UNION

SPARE PART SPECIAL 90°, stabilizer cylinder hydraulics

2шт.

22

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL stabilizer cylinder hydraulics

1шт.

23

D36932

FITTING

ELBOW male, 45°, if used, swing cylinder hydraulics

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

25

218-2070

CONNECTOR male, straight, swing cylinder hydraulics

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

27

D37219

HOSE

VALVE to swing cylinders, 30" long, hydraulics

2шт.

29

REF

INSTRUCTION

CYLINDER hydraulic, R.H. swing, see Figures 056 and 058

1шт.

30

REF

INSTRUCTION

CYLINDER hydraulic, L.H. swing, see Figures 056 and 058

1шт.

31

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

CROSSOVER cylinder, 23-1/2" long, swing hydraulics

2шт.

33

D36934

FITTING

ELBOW adjustable, 90°, L.H. swing cylinder hydraulics

1шт.

34

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL swing cylinder hydraulics

1шт.

35

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, RH swing cylinder hydraulics

1шт.

36

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL swing cylinder hydraulics

1шт.

37

D41462

FITTING

RESTRICTOR flow control, swing cylinder hydraulics

2шт.

38

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, locking cylinder hydraulics, early production

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Locking cylinder hydraulics, early production

1шт.

40

D30773

TUBE

VALVE to locking cylinder hydraulics, early production

1шт.

41

D36674

TEE

MALE special, locking cylinder hydraulics, early production

1шт.

42

D36656

SPARE PART TUBE valve to locking valve, locking cylinder hydraulics, early production

1шт.

43

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

ELBOW male, 90°, locking cylinder hydraulics, early production

1шт.

44

D36662

PISTON

VALVE locking, control, parts list page 095, cylinder hydraulics, early production

1шт.

45

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Locking cylinder hydraulics, early production

2шт.

46

D37342

SPARE PART VALVE locking cylinder hydraulics, early production

2шт.

47

92-4

LOCK WASHER,1/4"

Cylinder hydraulics, Early production

2шт.

48

25-104

NUT,1/4"-20, G5

Locking cylinder hydrauilics, Early production

2шт.

49

D39044

TUBE

VALVE locking to upper R.H. locking cylinder hydraulics, early production

1шт.

50

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER male, straight, locking cylinder hydraulics, early production

3шт.

51

NSS

NOT SOLD SEPARAT

CYLINDER locking, side shift frame, parts list page 009, hydraulics, early production

4шт.

52

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

ELBOW male, 45°, locking cylinder hydraulics, early production

4шт.

53

D36925

TUBE

R.H. locking cylinder to L.H. locking cylinder, hydraulics, early production

1шт.

54

221-12

PLUG,Sq Hd, 1/4"-18

PIPE square head, 1/4" NPT, locking cylinder hydraulics, early production

1шт.

55

D36959

HOSE

UPPER to lower locking cylinder, 21-1/2" long, locking cylinder hydraulics, early production

1шт.

56

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, locking cylinder hydraulics, late production

1шт.

57

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal, Locking cylinder hydraulics, late production

1шт.

58

D51309

SPARE PART VALVE to locking cvlinder hydraulics, late production

1шт.

59

D36912

HOSE

VALVE to locking valve, 43-3/4" long, locking cylinder hydraulics, late production

1шт.

60

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

ELBOW male, 90°, locking cylinder hydraulics, late production

1шт.

61

D36662

PISTON

VALVE locking, control, parts list page 095, locking cylinder hydraulics, late production

1шт.

62

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Locking cylinder hydraulics, late production

2шт.

63

92-4

LOCK WASHER,1/4"

Cylinder hydraulics, Late production

2шт.

64

25-104

NUT,1/4"-20, G5

Locking cylinder hydraulics, Late production

2шт.

65

D44380

TUBE

LOCKING valve to upper R.H. cylinder hydraulics, late production

1шт.

66

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER male, straight, locking cylinder hydraulics, late production

1шт.

67

NSS

NOT SOLD SEPARAT

CYLINDER locking, side shift frame, parts list page 009, hydraulics, late production

4шт.

68

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

ELBOW male, 45°, locking cylinder hydraulics, late production

4шт.

69

D36925

TUBE

R.H. locking cylinder to L.H. locking cylinder, hydraulics, late production

1шт.

70

221-12

PLUG,Sq Hd, 1/4"-18

PIPE square head, 1/4" NPT, locking cylinder hydraulics, late production

1шт.

71

D36959

HOSE

UPPER to lower locking cylinder, 21-1/2"" long, hydraulics, late production

2шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal, Swing cylinder hydraulics

1шт.
